Fuel Tank Pressure Sensor: Service and Repair

FUEL TANK PRESSURE SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the rear compartment trim panel.

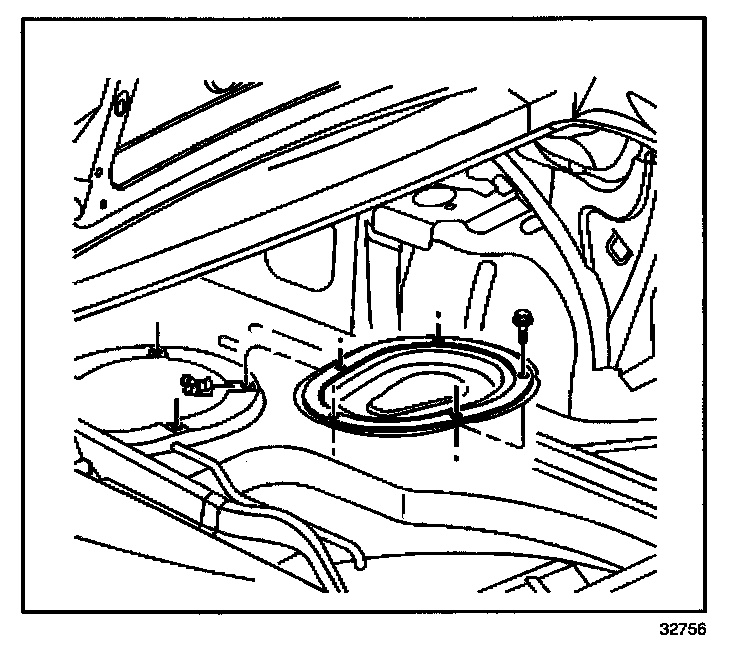

2. Remove the fuel sender access panel bolts.
3. Remove the fuel sender access panel.




4. Disconnect the fuel tank pressure sensor electrical connector.

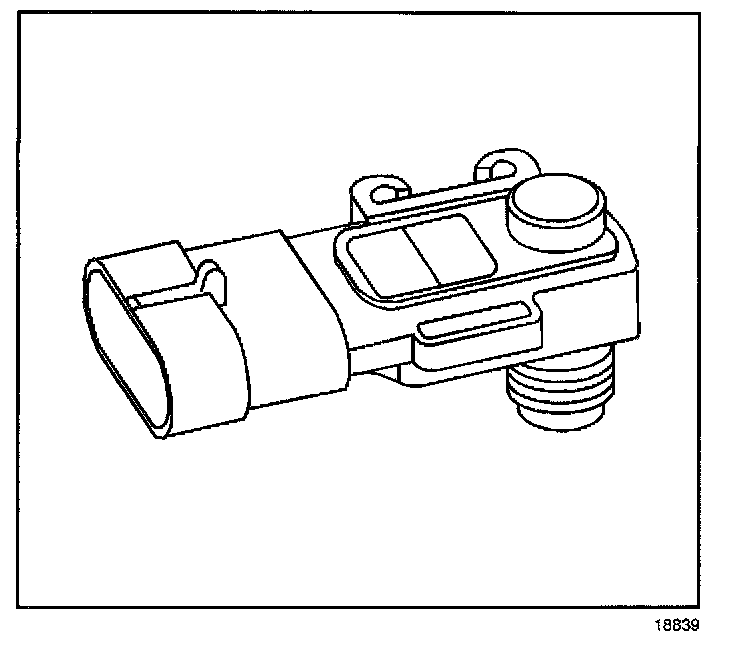

5. Remove the fuel tank pressure sensor.

INSTALLATION PROCEDURE

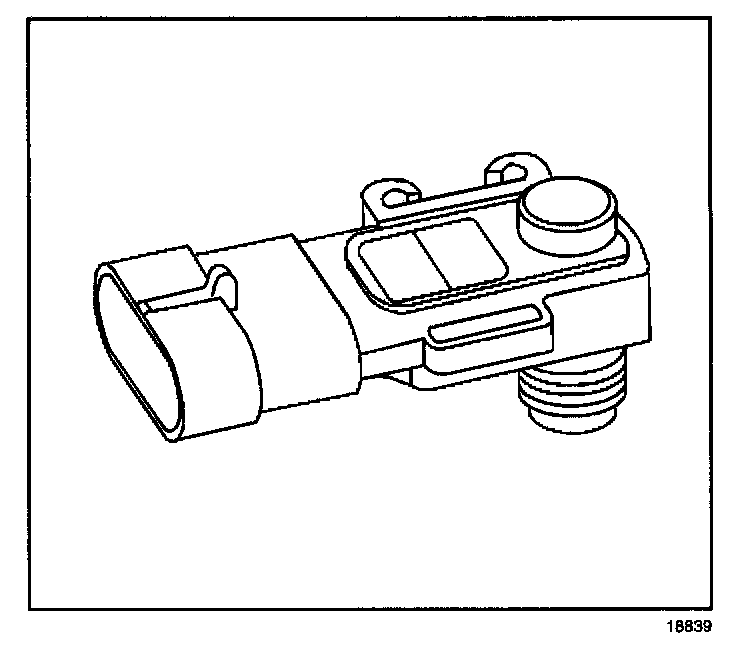

1. Install the fuel tank pressure sensor.
2. Connect the fuel tank pressure sensor electrical connector.

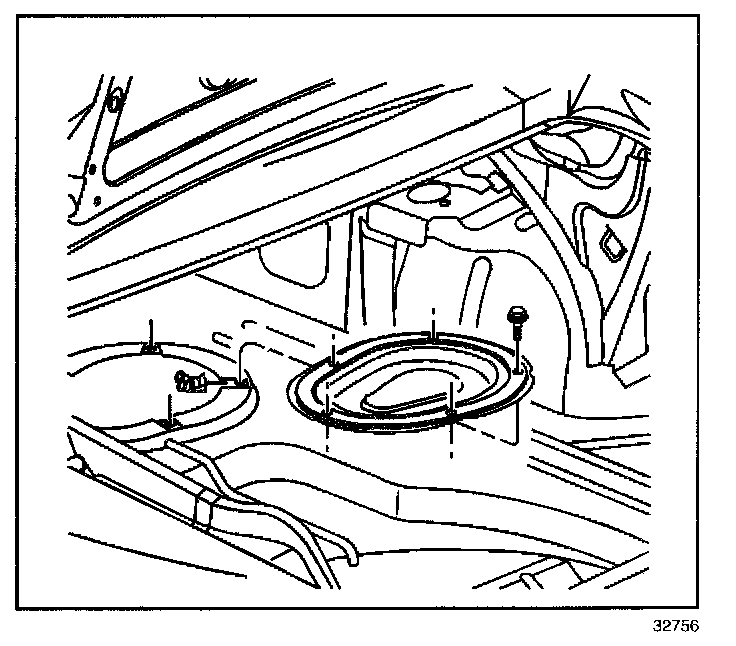

3. Install the fuel sender access panel.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the fuel sender access panel bolts.

Tighten
Tighten the fuel sender access panel bolts to 2 Nm (18 lb in).

5. Install the rear compartment trim panel.
