Manifold Pressure/Vacuum Sensor: Service and Repair

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Turn the ignition OFF.
2. Disconnect the MAP sensor electrical connector.
3. Remove the throttle cable bracket bolts and bracket.

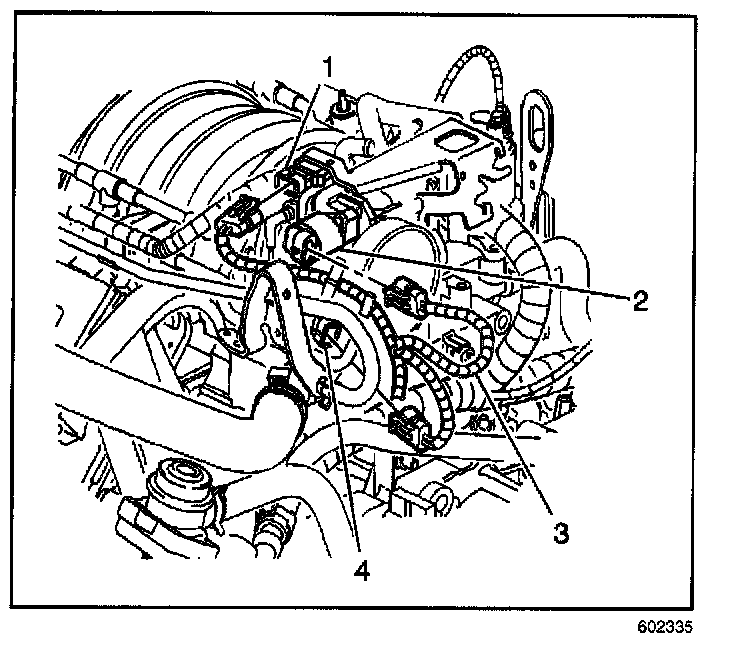

4. Remove the MAP (1) sensor from the intake manifold.
5. Inspect the MAP sensor grommet for wear or damage. If a problem is found, replace as necessary.

INSTALLATION PROCEDURE




1. Install the MAP sensor (1) into the intake manifold.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the throttle cable bracket and bolts.

Tighten
Tighten the bracket bolts to 12 Nm (106 lb in).

3. Connect the MAP sensor electrical connector.
