Oil Pump, Engine





Tighten the oil pump mounting bolts 10 Nm (89 inch lbs.)

Final Pass

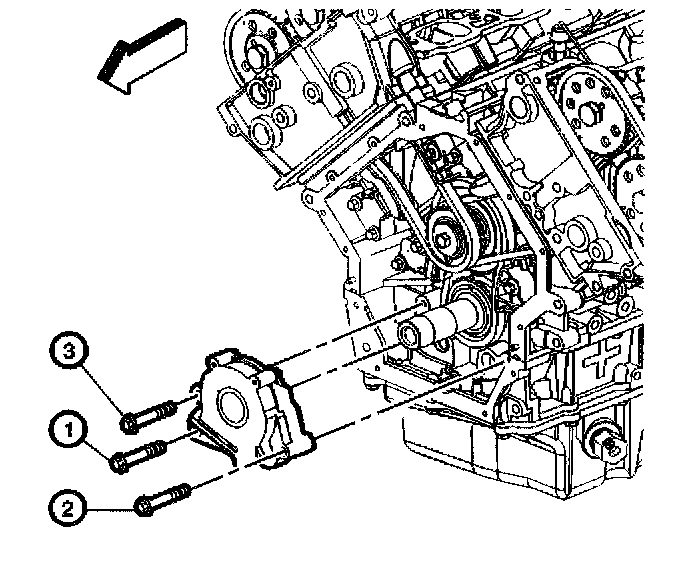

Tighten the oil pump mounting bolts in the sequence shown to 35 degrees using the J 45059.
