Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2004
>>
XLR V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Interlock
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>

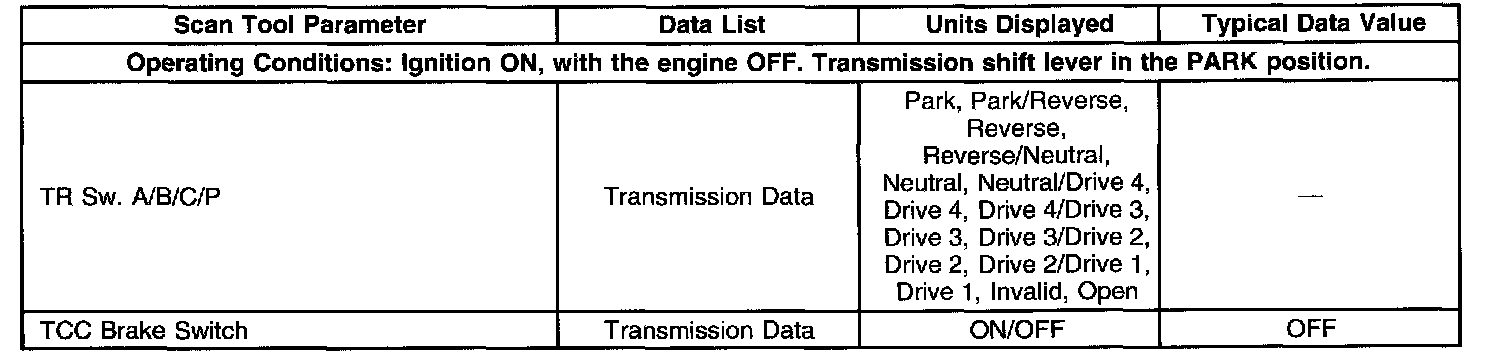

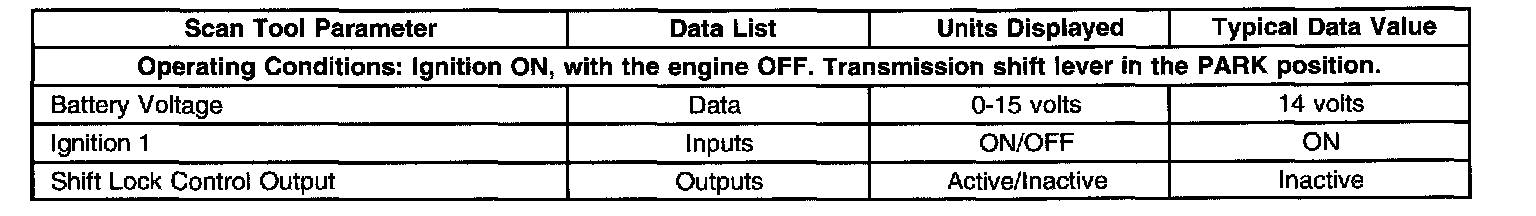

Scan Tool Data List
Scan Tool Data List
Scan Tool Data List
Remote Control Door Lock Receiver (RCDLR)
Transmission Control Module (TCM)
