Secondary Timing Chain Guide Replacement - Left

SECONDARY TIMING CHAIN GUIDE REPLACEMENT - LEFT

Removal Procedure

1. Remove the engine front cover. Timing Cover

2. Remove the left bank secondary camshaft drive chain tensioner.

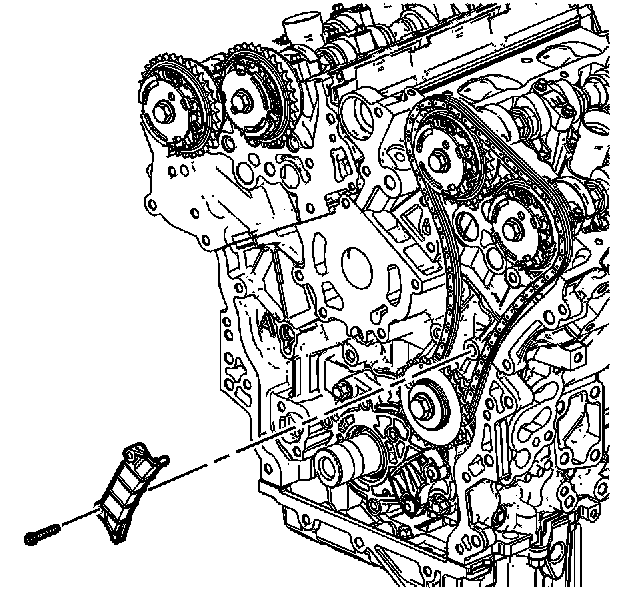

3. Remove the left bank secondary camshaft drive chain guide.

Installation Procedure

1. Install the left bank secondary camshaft drive chain guide.

2. Install the left bank secondary camshaft drive chain tensioner.

3. Install the engine front cover.
