Scan Tool Data List - Antitheft System

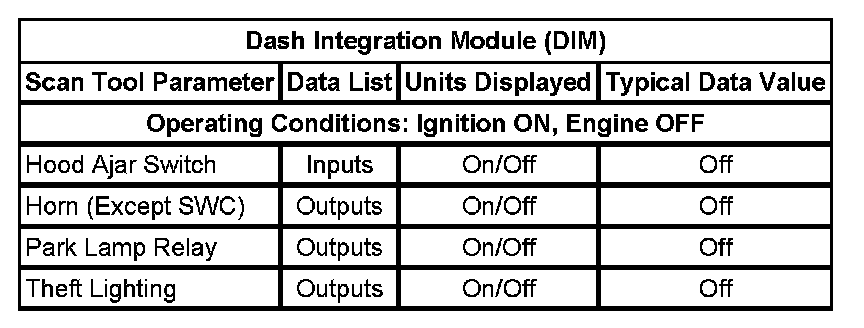

Dash Integeation Module (DIM):

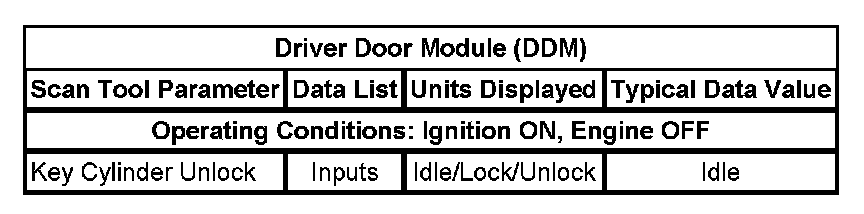

Driver Door Module (DDM):

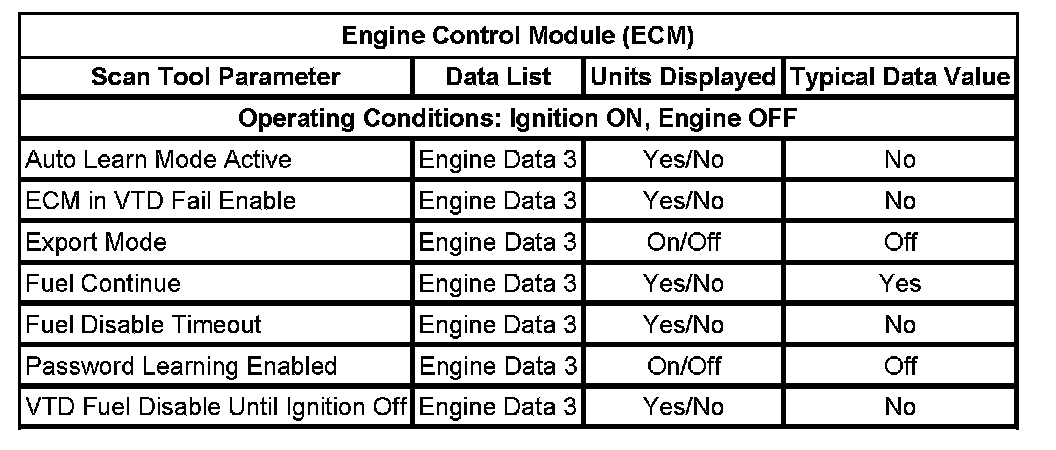

Engine Control Module (ECM):

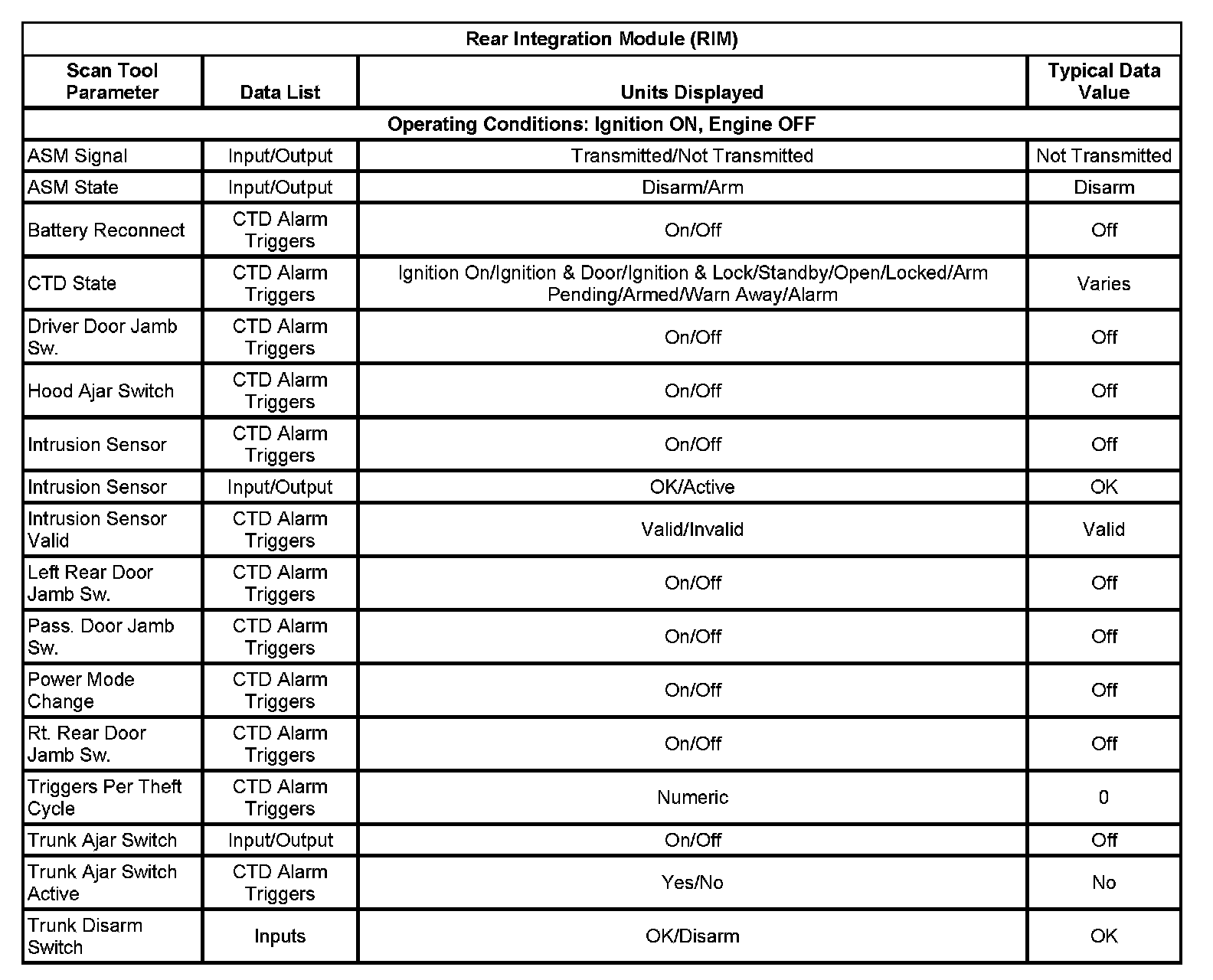

Rear Integration Module (RIM):

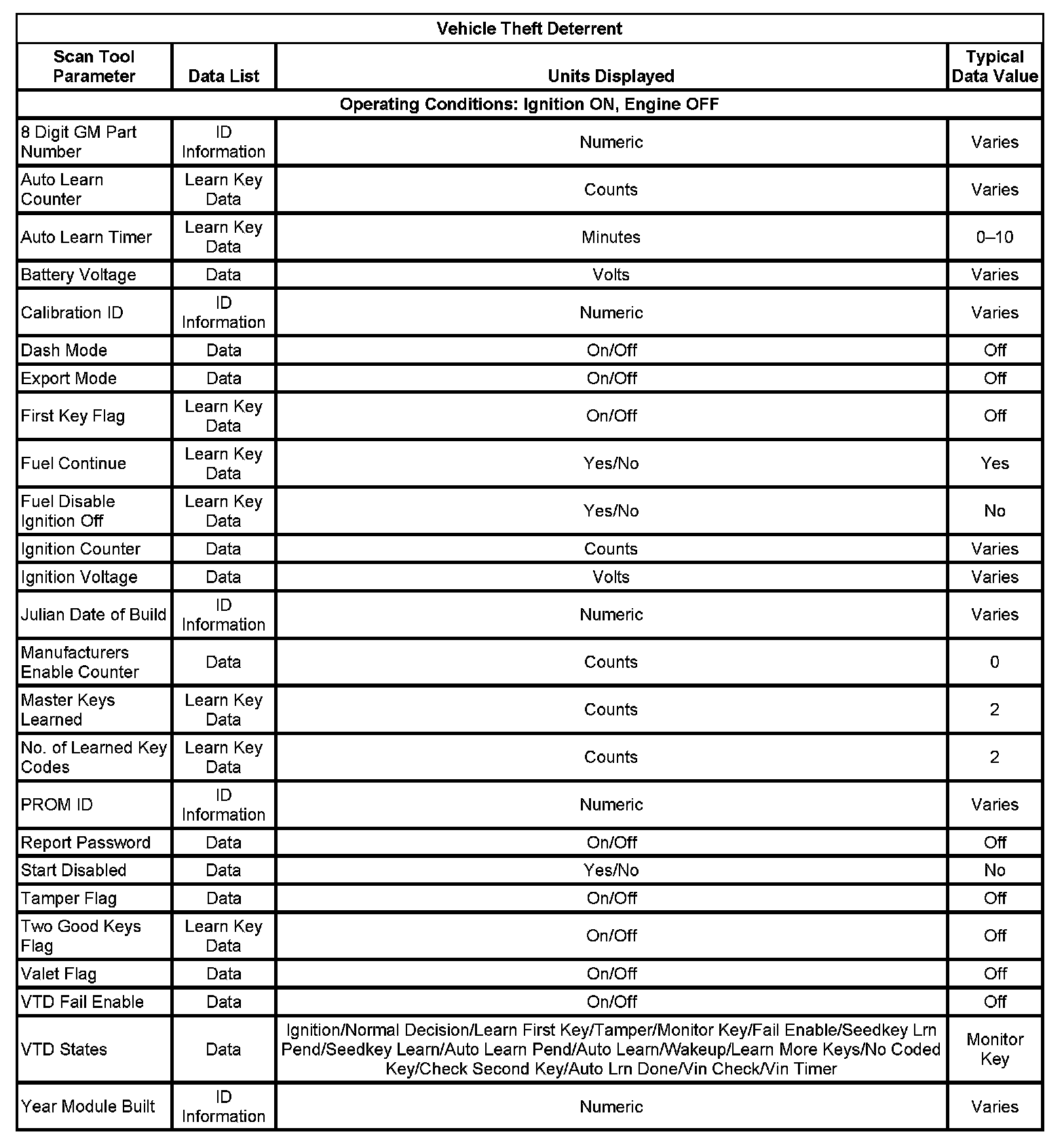

Vehicle Theft Deterrent:
