Mainshaft Sensor, A/T

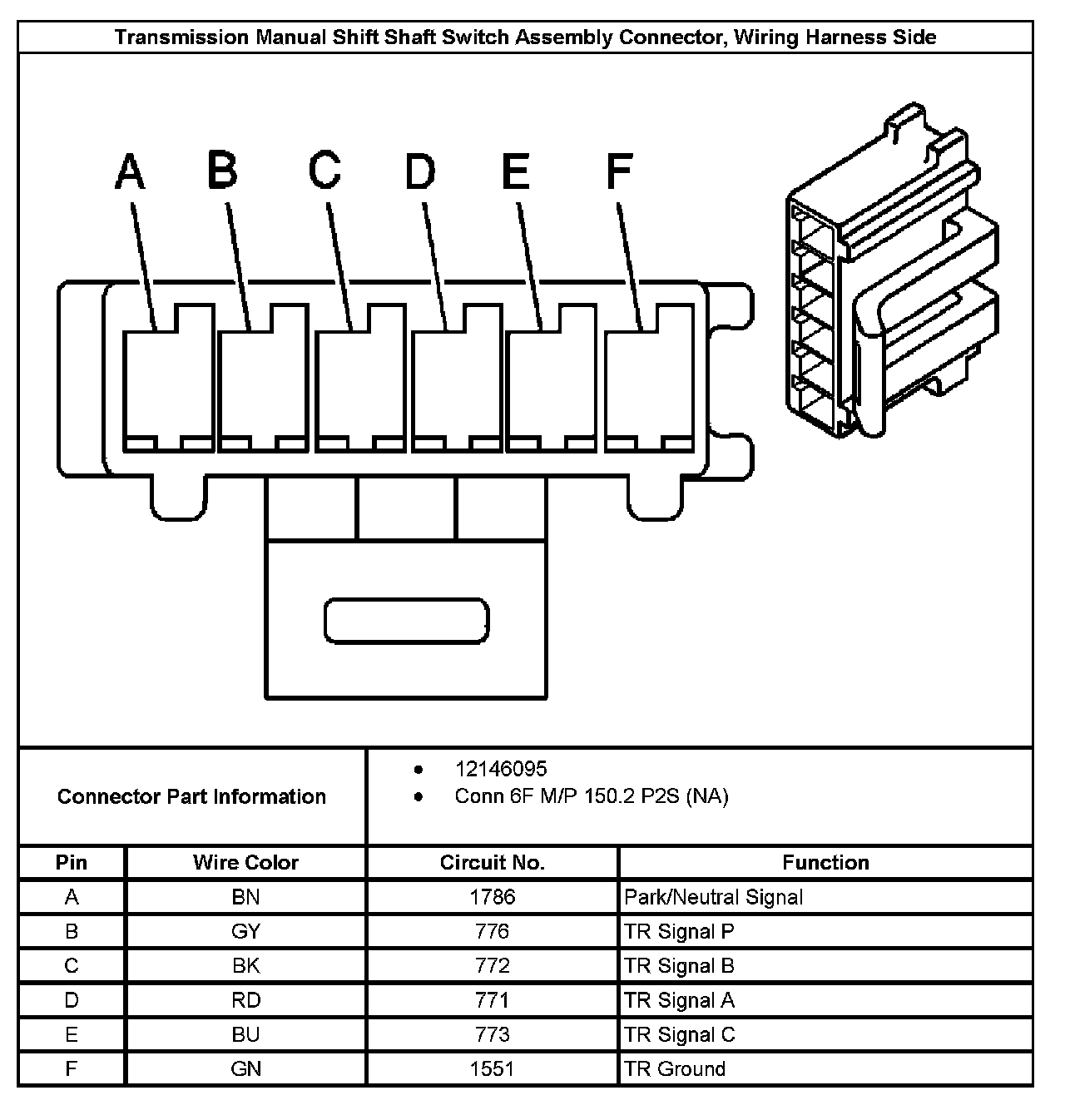

Transmission Manual Shift Shaft Switch Assembly Connector, Wiring Harness Side:
