Home >> Cadillac >> 2005 >> CTS V8-5.7L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> Front Center

Front Center

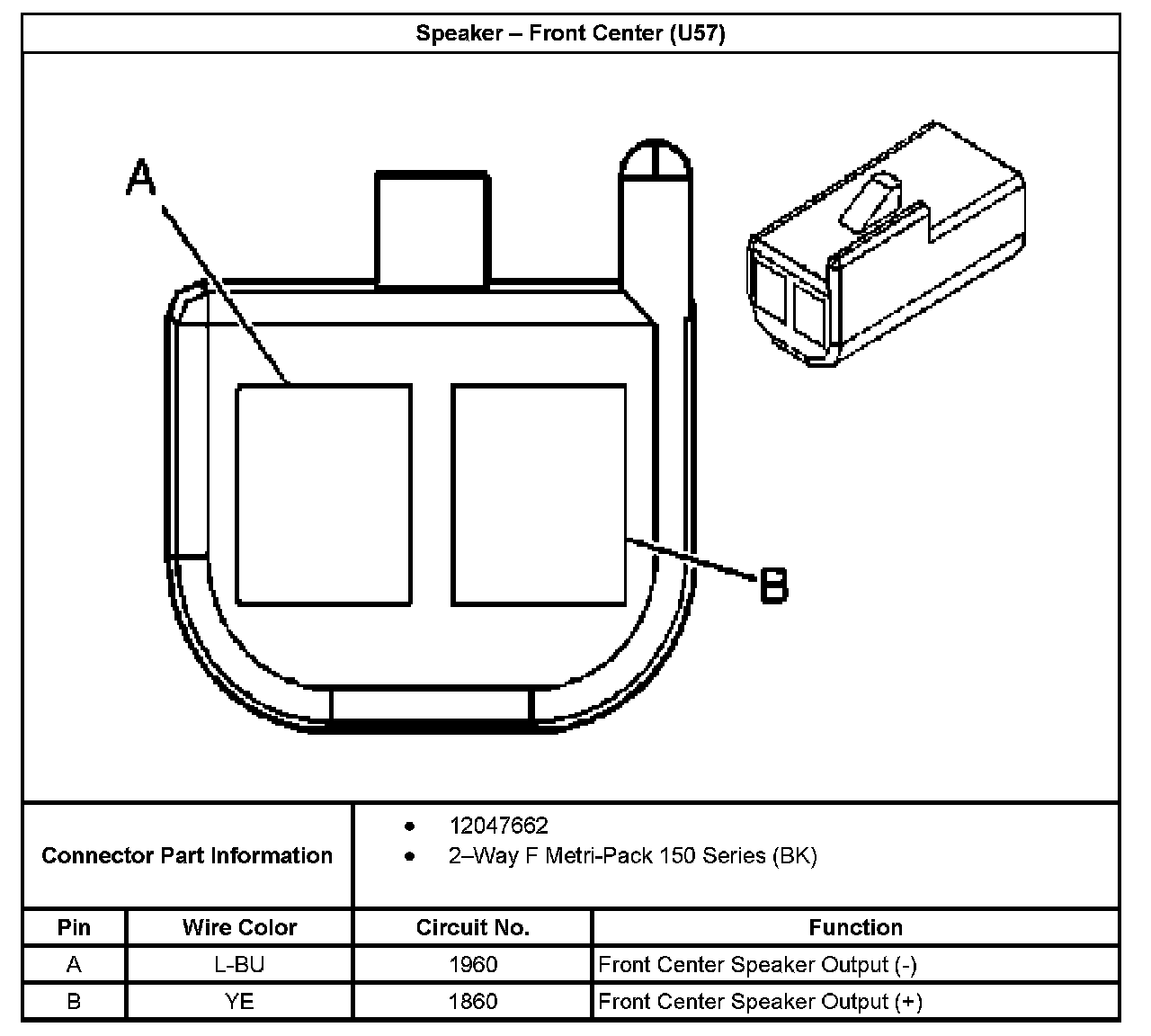

Speaker - Front Center (With RPO Code U57):
