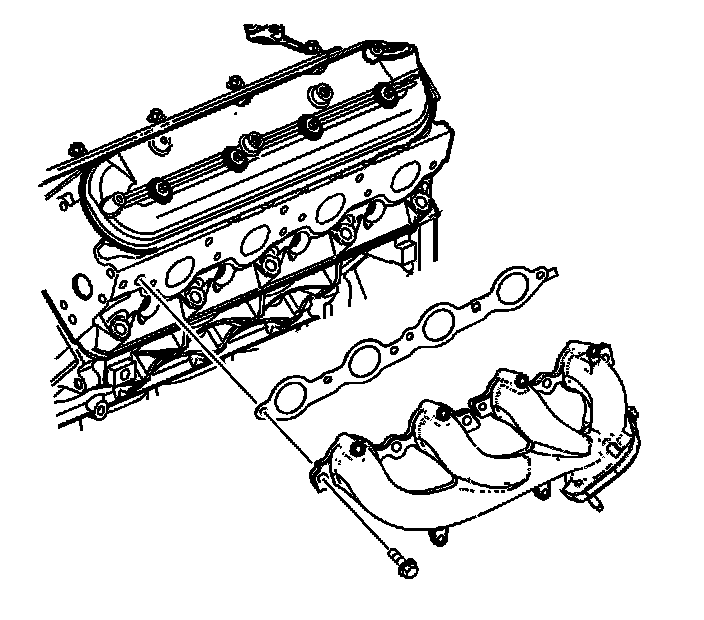

Exhaust Manifold

Exhaust Manifold Bolts
First Pass 15 Nm (11 ft. lbs.)
Tighten the exhaust manifold bolts beginning with the center two bolts. Alternate from side-to-side, and work toward the outside bolts.
Final Pass 25 Nm (18 ft. lbs.)
Tighten the exhaust manifold bolts beginning with the center two bolts. Alternate from side-to-side, and work toward the outside bolts.
Exhaust Manifold Heat Shield Bolts 9 Nm (80 inch lbs.)
