Rear Parking Assist Malfunction

REAR PARKING ASSIST MALFUNCTION

DIAGNOSTIC AIDS
Before performing this procedure, ensure that the vehicle park brake is SET.

TEST

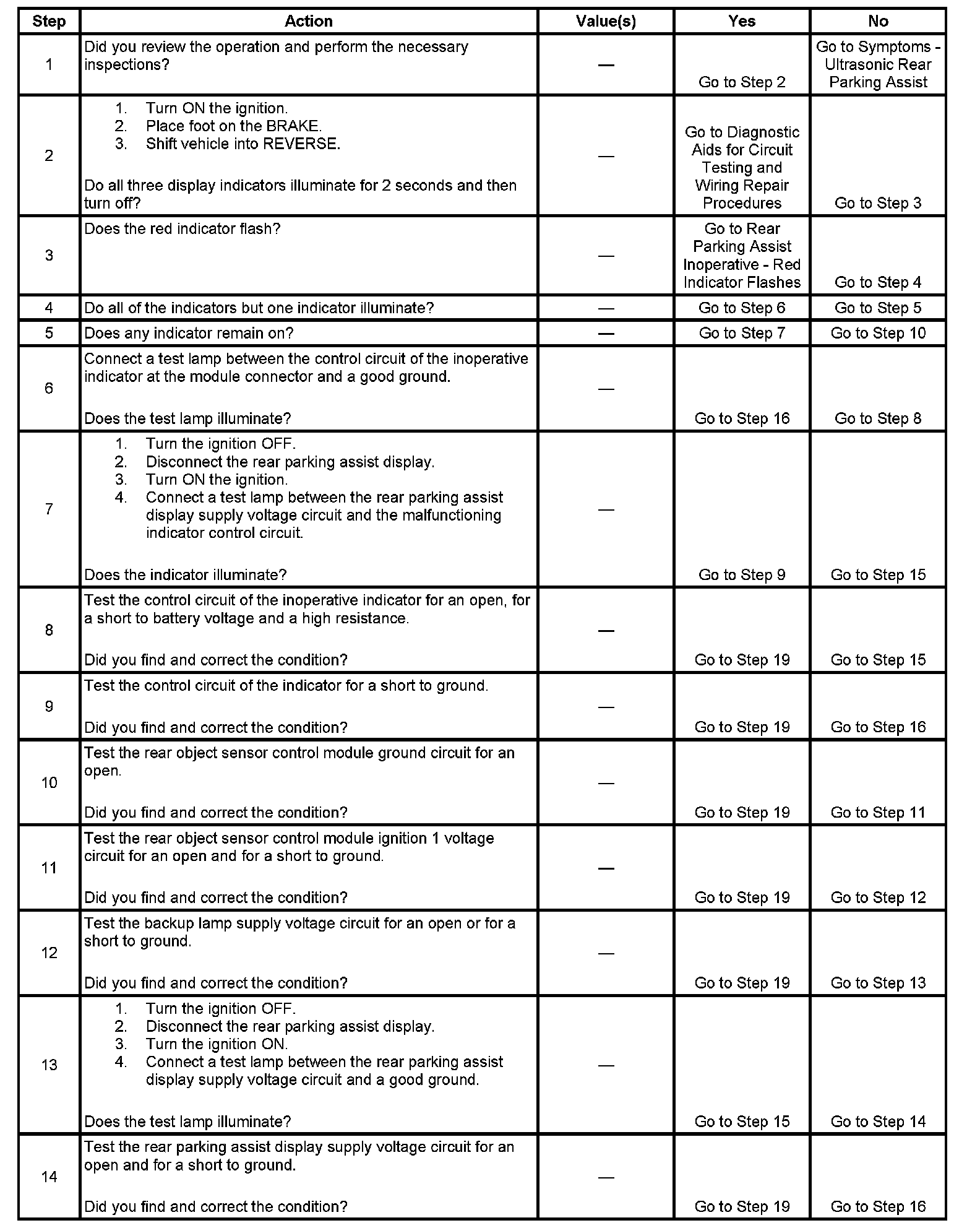

Steps 1-14:

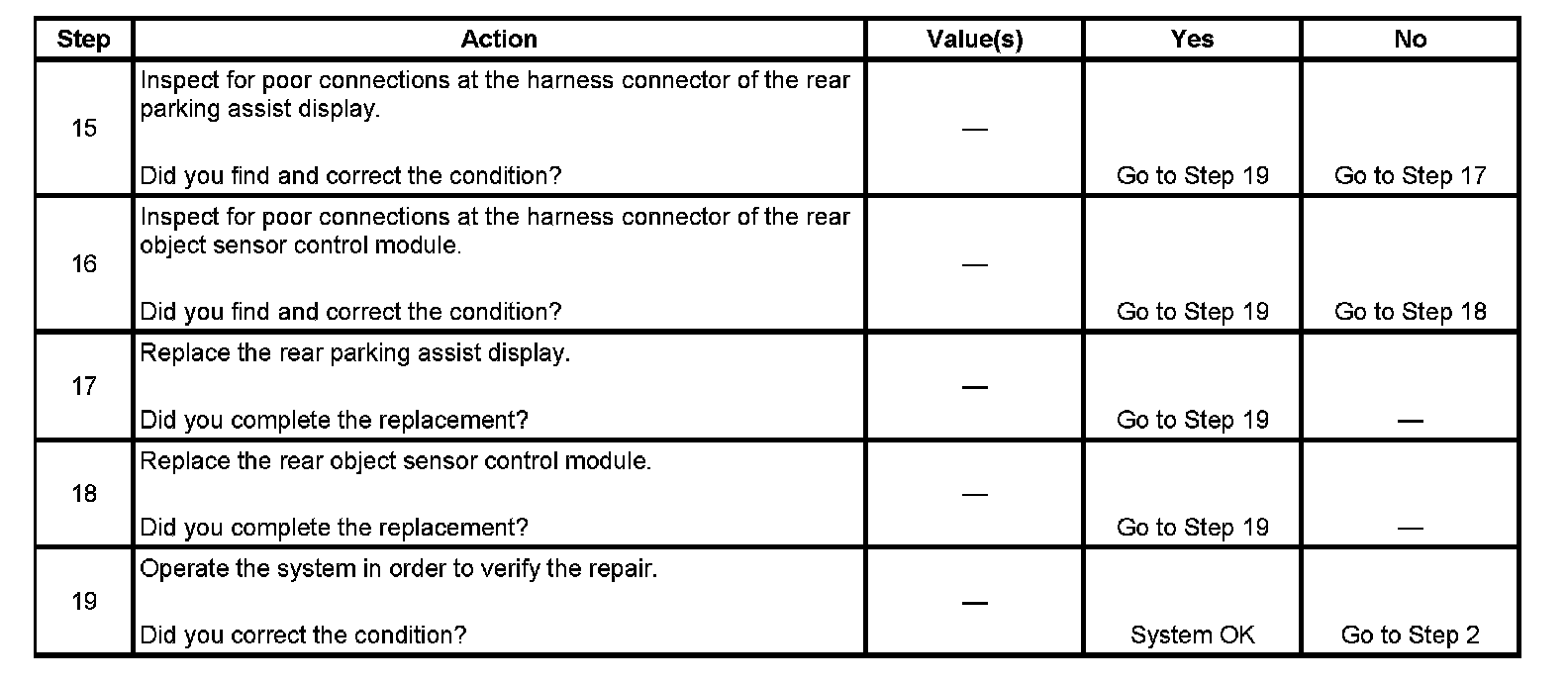

Steps 15-19:
