Radio/Audio System Diagrams (With RPO Code U57)

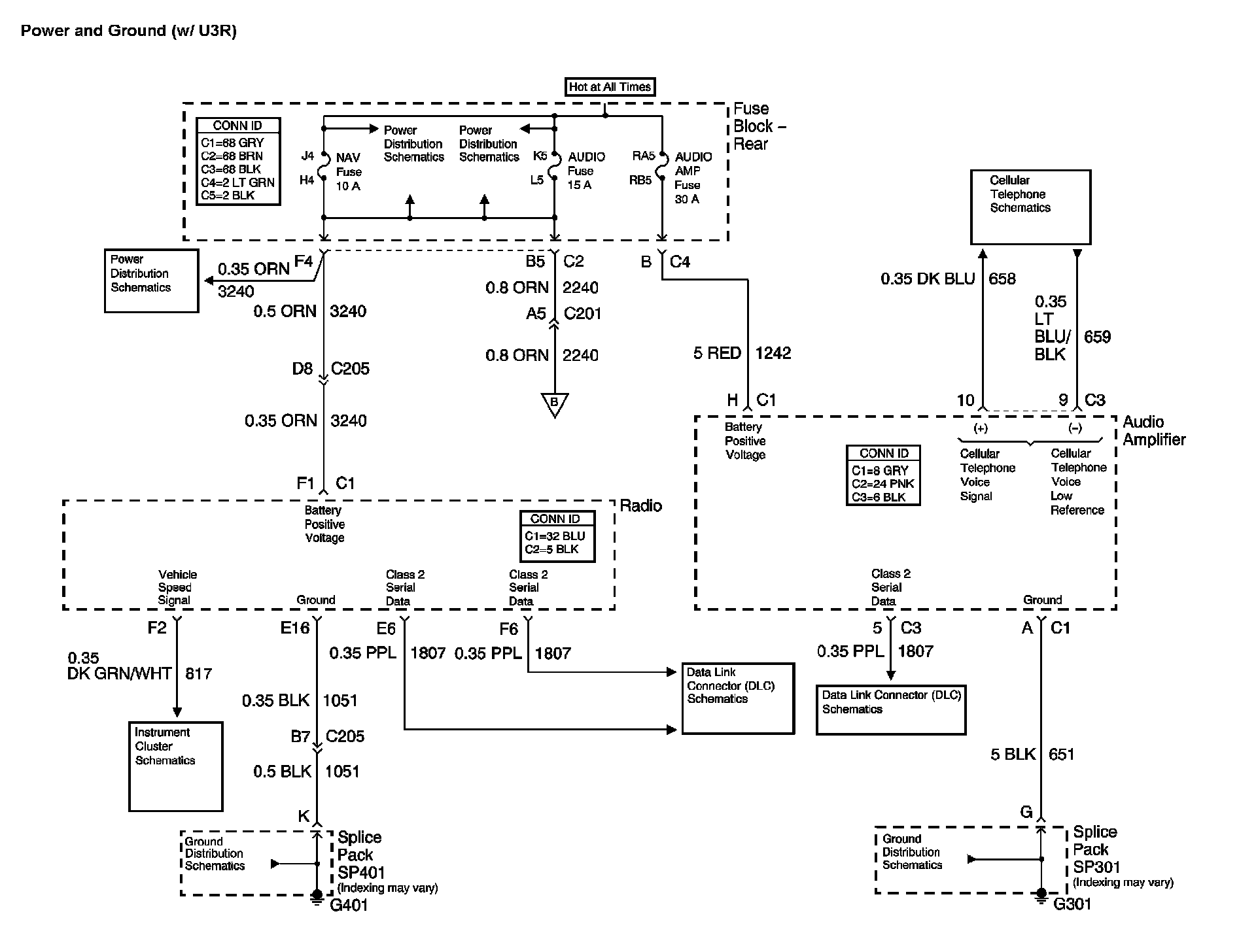

Radio/Audio System Diagram 1 (With RPO Code U57):

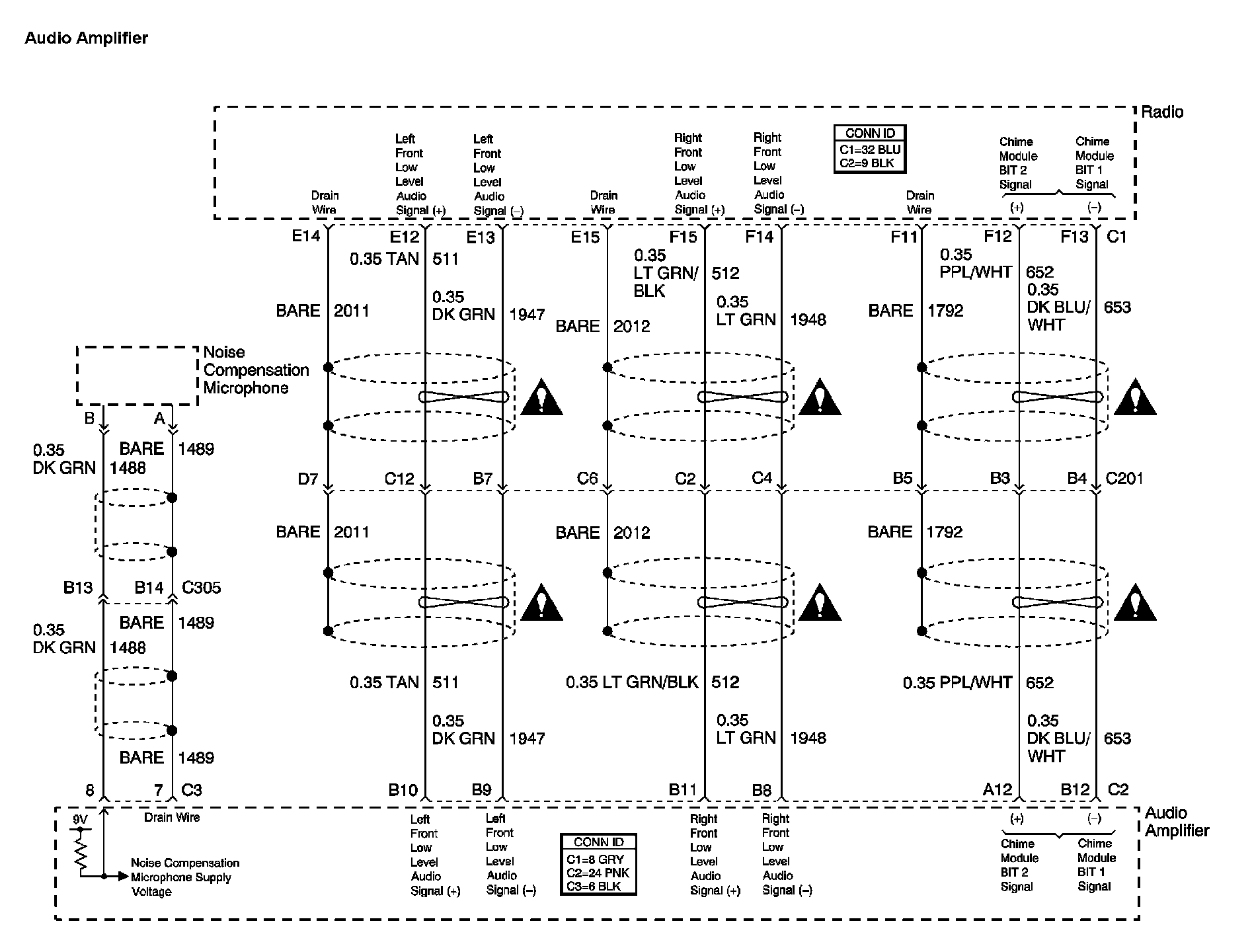

Radio/Audio System Diagram 2 (With RPO Code U57):

Radio/Audio System Diagram 3 (With RPO Code U57):

Radio/Audio System Diagram 4 (With RPO Code U57):

Radio/Audio System Diagram 5 (With RPO Code U57):

Radio/Audio System Diagram 6 (With RPO Code U57):

LOCATION: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
