Receiver Replacement - Digital Radio

RECEIVER REPLACEMENT - DIGITAL RADIO

REMOVAL PROCEDURE




1. Remove the left rear compartment trim panel.

IMPORTANT: Do not swap digital radio receivers between vehicles. Swapping digital receivers between vehicles will activate the digital radio Theftlock, "XM Theftlock" will be displayed.

2. Loosen the digital receiver mounting bolts (1).
3. Slide the receiver and the bracket up and out of the keyhole slots in the rear reinforcement panel.




4. Disengage the electrical connector from the connection position assurance (CPA) (1).

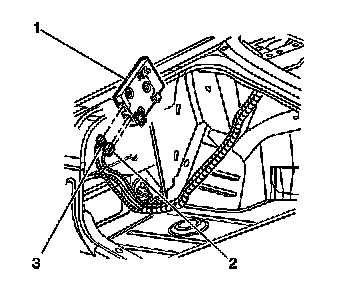

5. Disconnect the electrical connector (3) from the digital radio receiver (1).
6. Disconnect the antenna connector (2).
7. Remove the digital receiver and the bracket (1) from the vehicle.




8. Remove the nuts (1) securing the receiver bracket to the digital radio receiver.
9. Remove the digital radio receiver from the receiver bracket.

INSTALLATION PROCEDURE




1. Install the digital radio receiver to the receiver bracket.
2. Install the nuts (1) to secure the receiver to the bracket.

Tighten the nuts to 7 N.m (62 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.




3. Connect the electrical connector (3) to the digital receiver (1).
4. Engage the CPA electrical connector.
5. Connect the antenna connector (2) to the digital receiver (1).
6. If removed, install the mounting bolts to the bracket to a depth of 3-4 threads.




7. Align the receiver and bracket assembly to the keyhole slots in the rear reinforcement, with the electrical connection end towards the rear compartment floor.
8. Install the receiver mounting bolts (1) to the keyhole slots. Slide the receiver and the bracket down.

Tighten the bolts to 9 N.m (80 lb in).

9. Install the left rear compartment trim panel.
10. Perform the setup procedure for the digital radio receiver. Refer to Digital Radio Receiver Setup.
