Power Sunroof Does Not Close from Vent Position

POWER SUNROOF DOES NOT CLOSE FROM VENT POSITION

DIAGNOSTIC AIDS
The sunroof switch close vent signal circuit can cause the sunroof not to respond correctly, if it were an open or a short to voltage. If the circuits test OK, an intermittent or poor connection can also cause the sunroof not to operate normally.

TEST DESCRIPTION

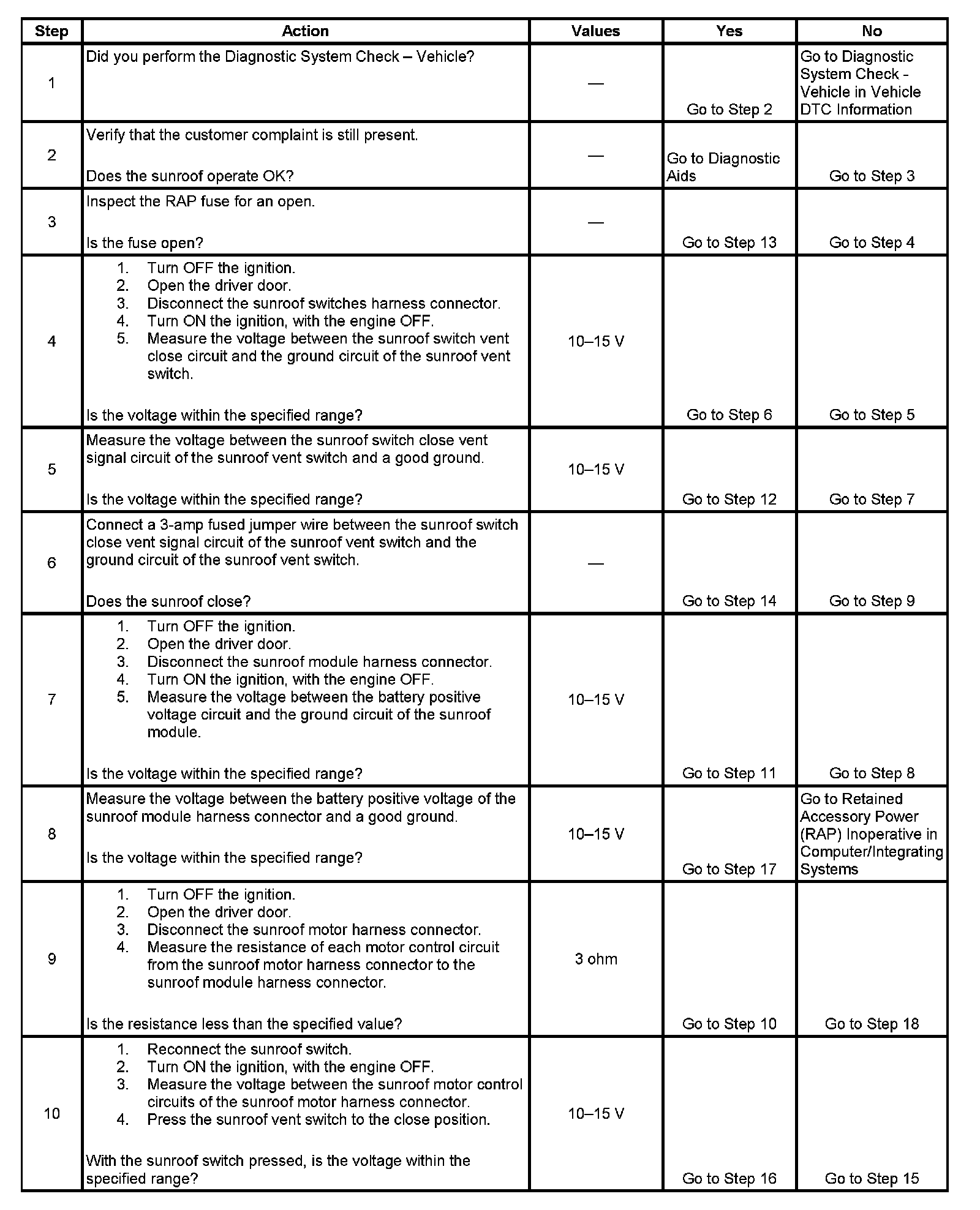

Steps 1 - 10:

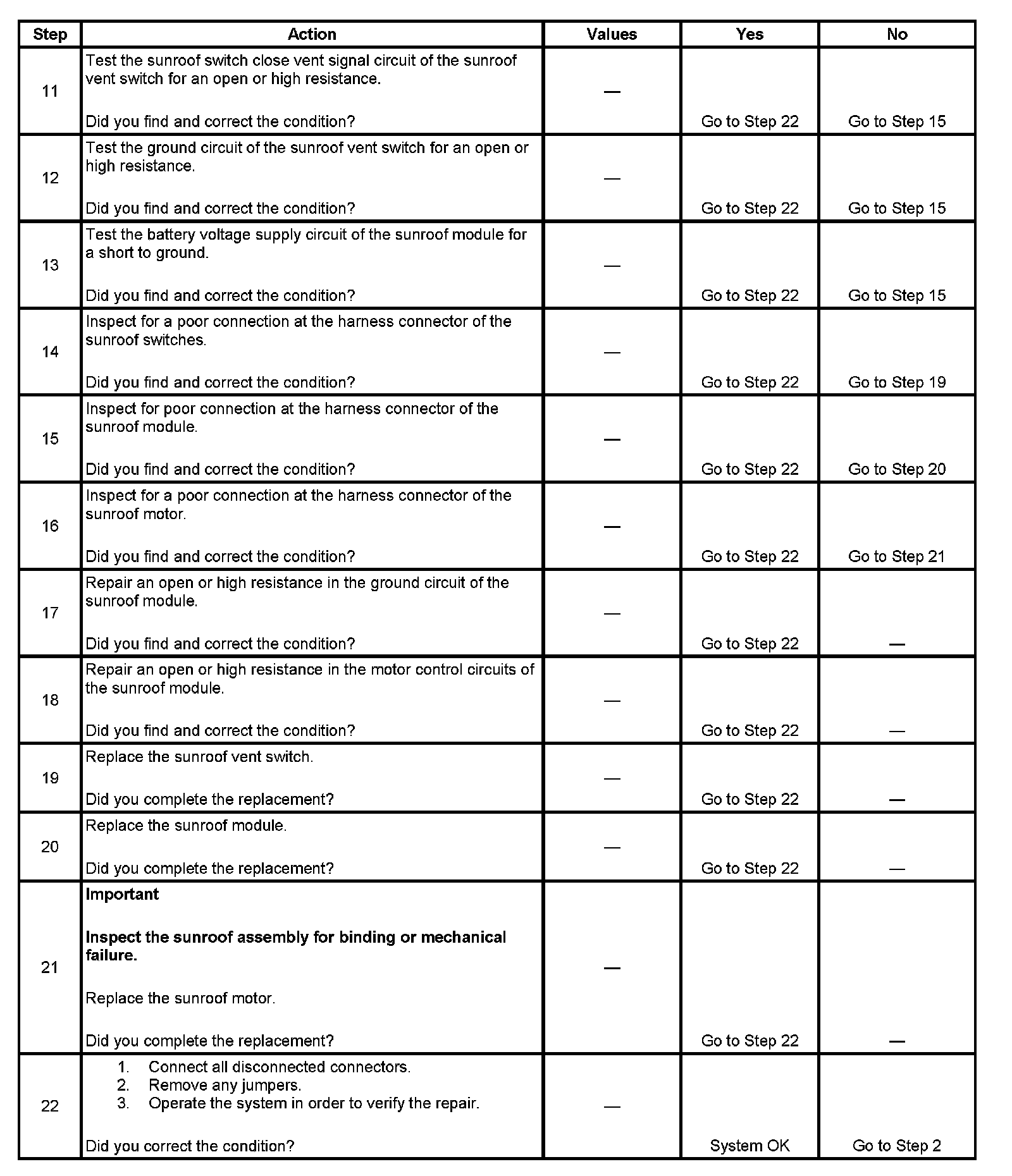

Steps 11 - 22:

The step below refers to the step number on the diagnostic table.
8. This step tests for battery voltage (B+) in the battery positive circuit of the sunroof module. If voltage is not present, go to the RAP Inoperative table.
