Seat Lumbar Switch

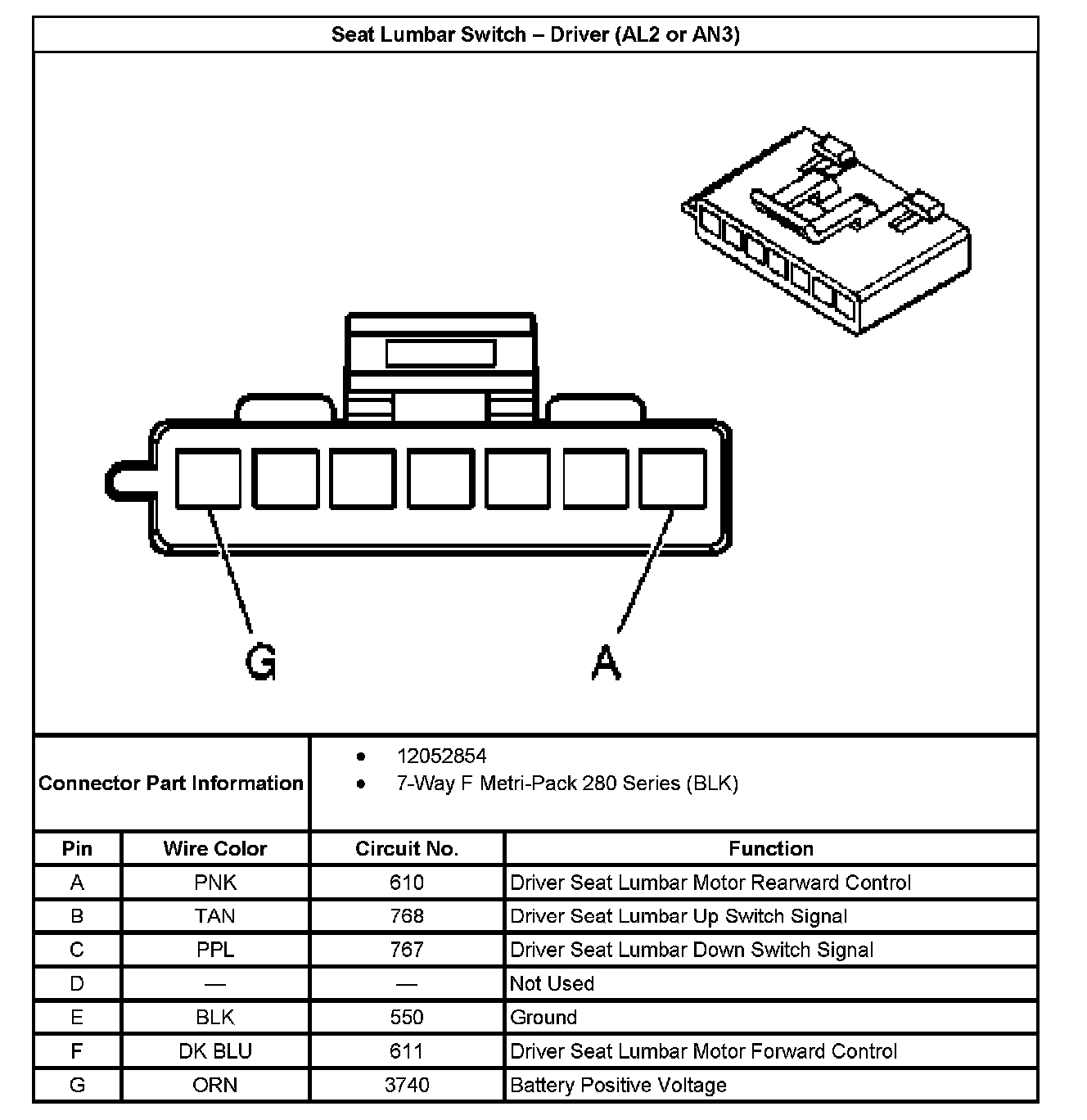

Seat Lumbar Switch - Driver (With RPO Code AL2 Or AN3):



Seat Lumbar Switch - Driver (With RPO Code A45, AL2):



Seat Lumbar Switch - Front Passenger (With RPO Code AL2):



Seat Lumbar Switch - LR (DHS With RPO Code AL2):



Seat Lumbar Switch - RR (DHS With RPO Code AL2):
