Home >> Cadillac >> 2005 >> DeVille V8-4.6L VIN Y >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Lumbar Support Does Not Move Up or Down >> Massaging Lumbar - RPO AM3 Without Memory - RPO A45)

Massaging Lumbar - RPO AM3 Without Memory - RPO A45)

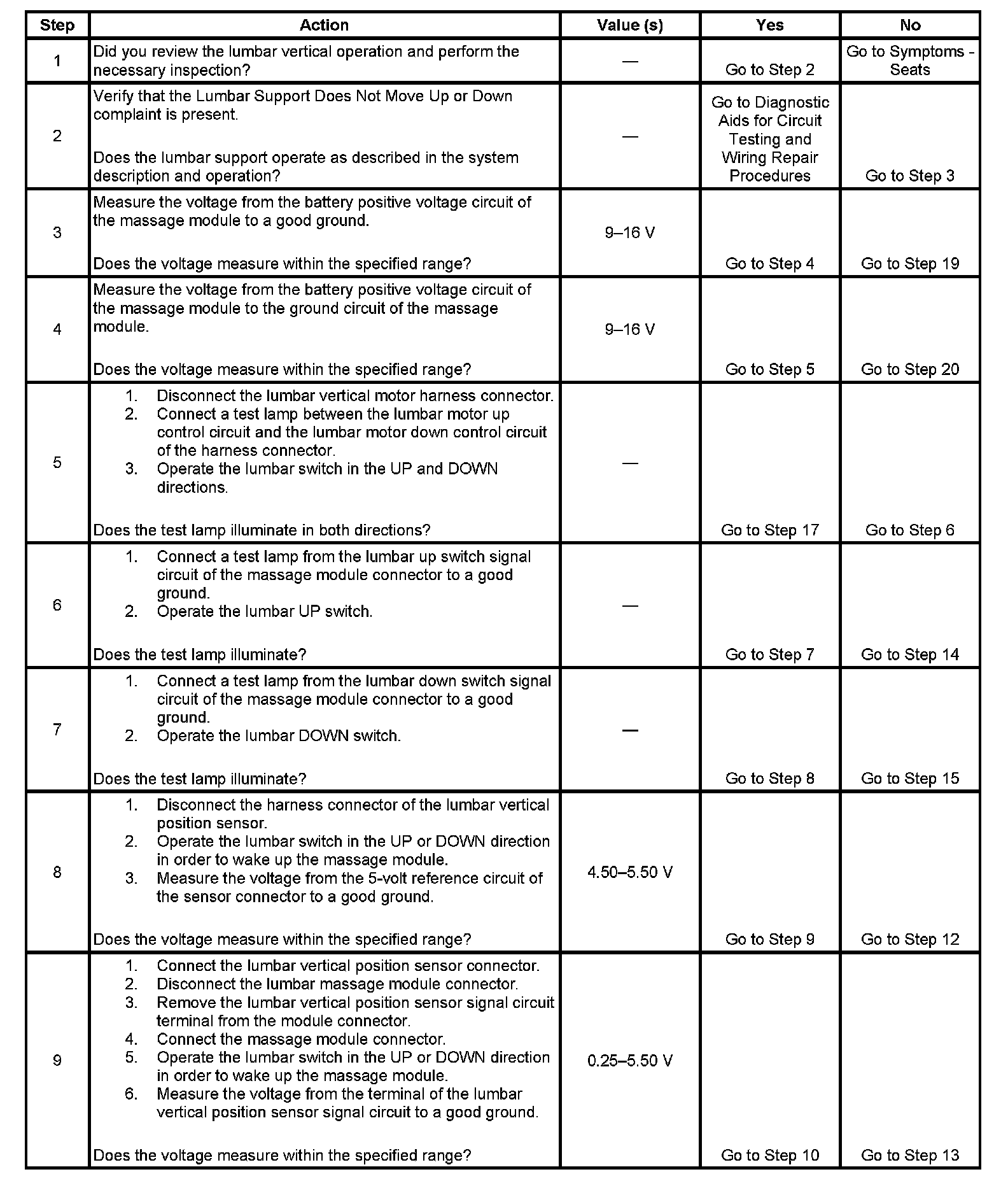

Steps 1 - 9:

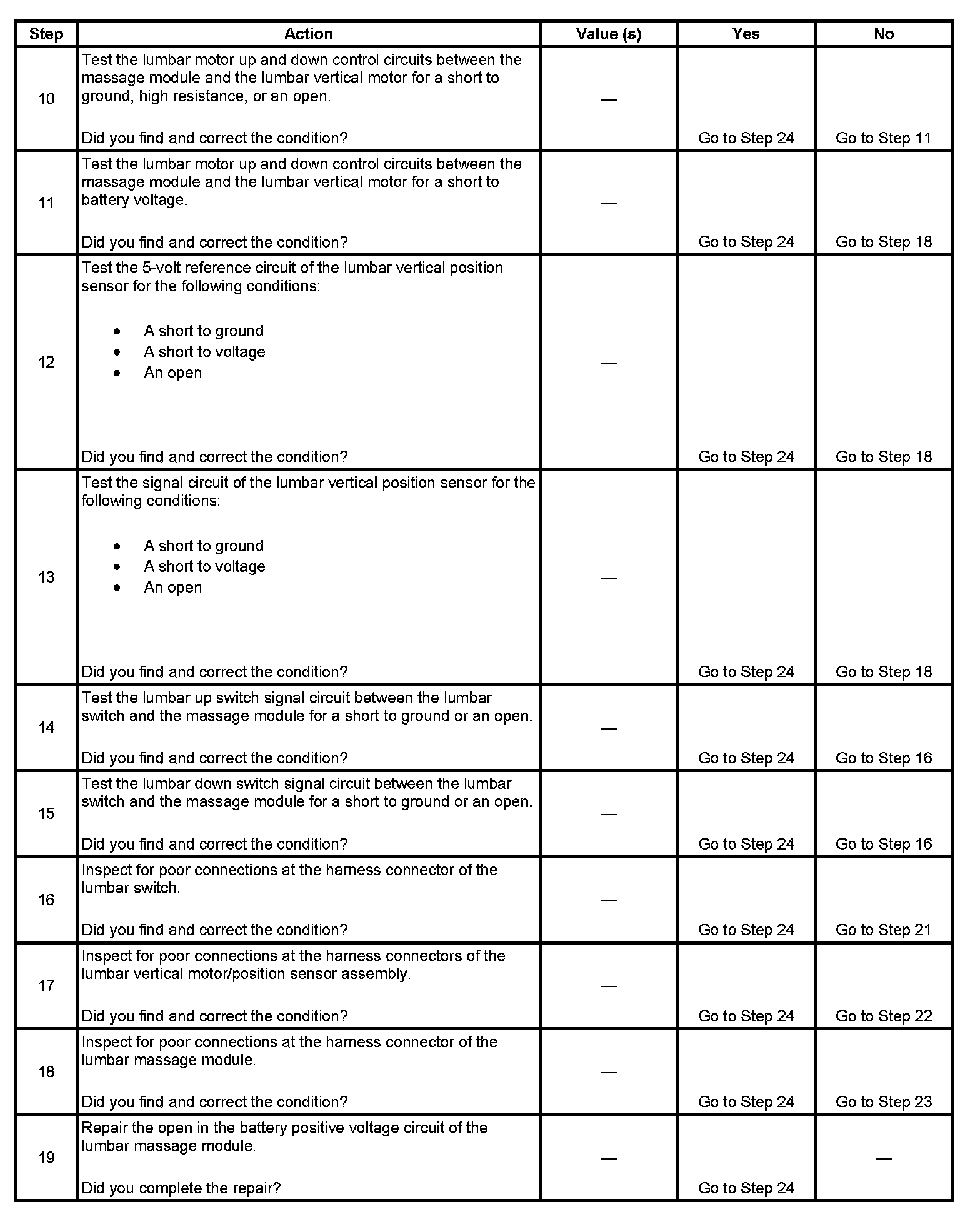

Steps 10 - 19:



Steps 20 - 24:
