Sealing Strip Replacement - Front Door Bottom Auxiliary
Sealing Strip Replacement - Front Door Bottom Auxiliary
Removal Procedure

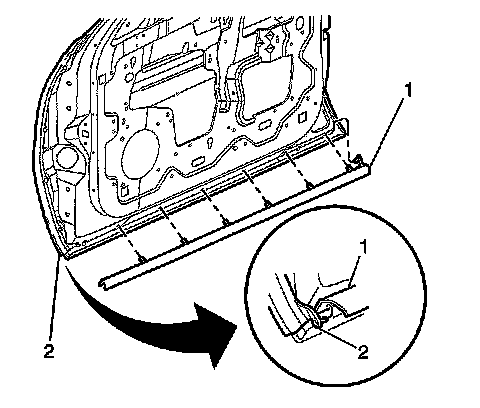

1. With the door open, remove the lower retainer of the front auxiliary sealing strip (2).
2. Remove the front door bottom auxiliary sealing strip retainers.
3. Remove the sealing strip (1).
Installation Procedure
1. Install the front door bottom auxiliary sealing strip (1) on to the inside lower door edge.
2. Secure the sealing strip (1) by inserting the retainers into the holes in the lower door panel.
3. Insert the last forward retainer, securing the front auxiliary sealing strip (2) over the bottom sealing strip (1).
