Electrical Diagrams

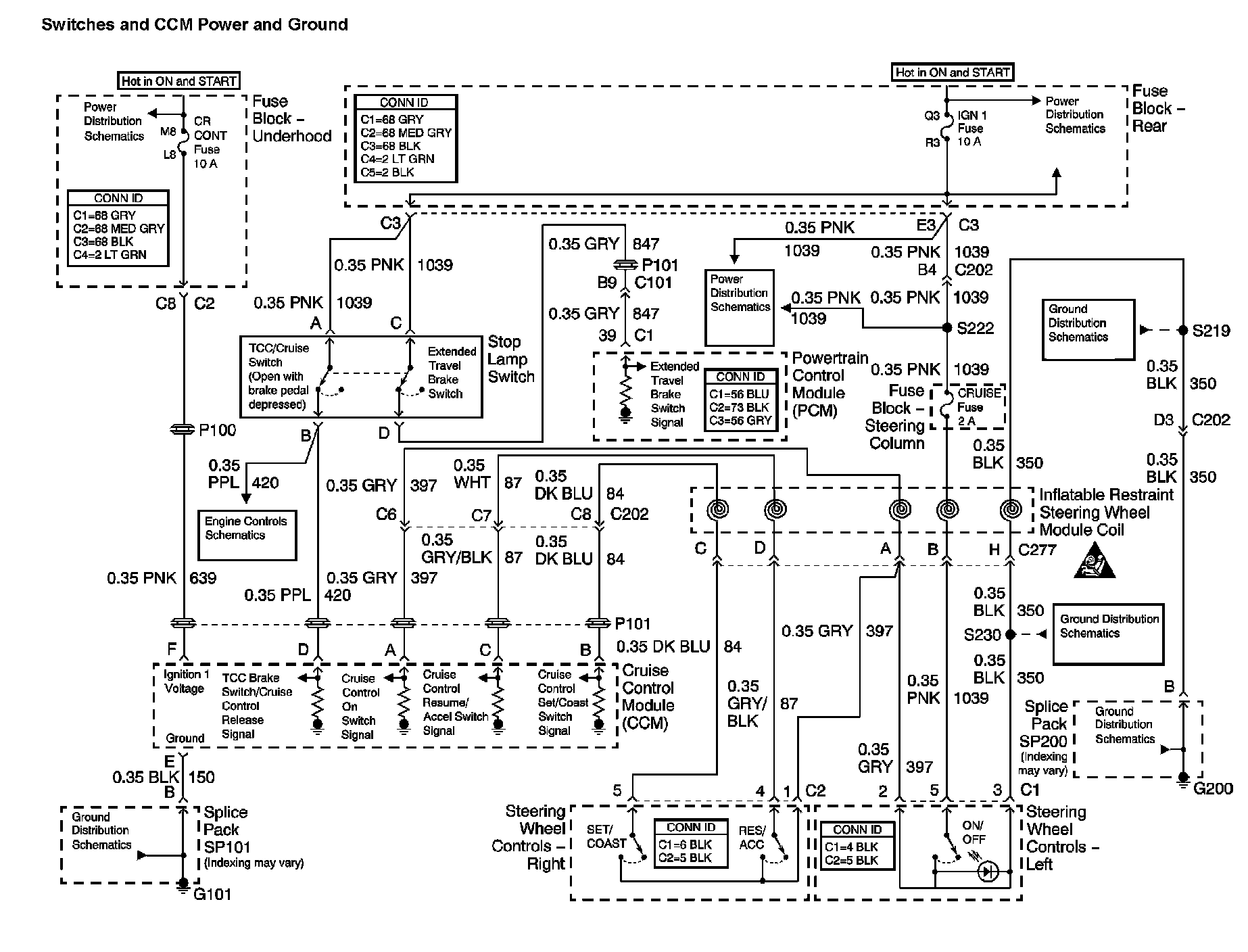

Cruise Control Diagram 1:
Cruise Control Diagram 2:
LOCATION: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
LOCATION: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
