DeVille V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>

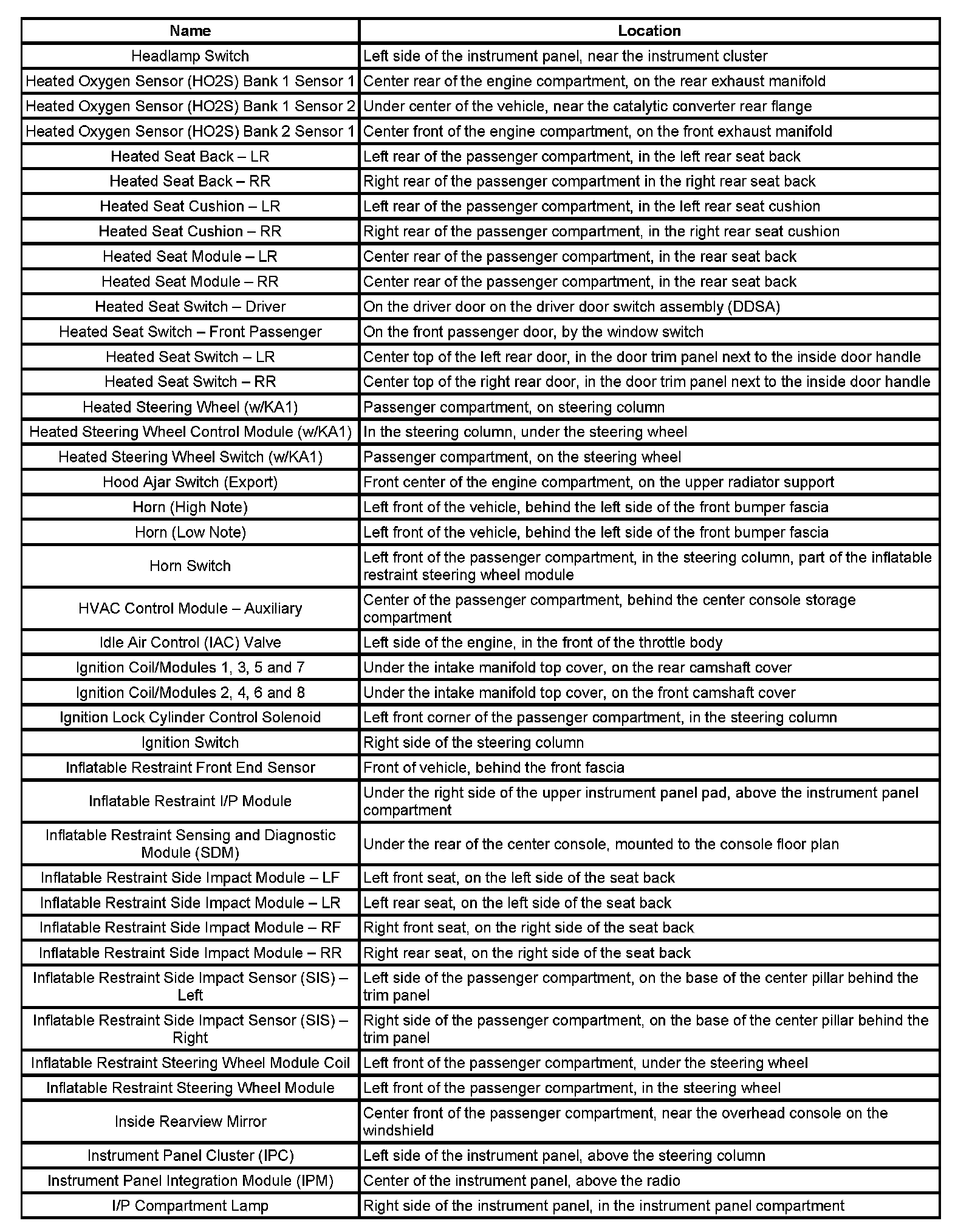

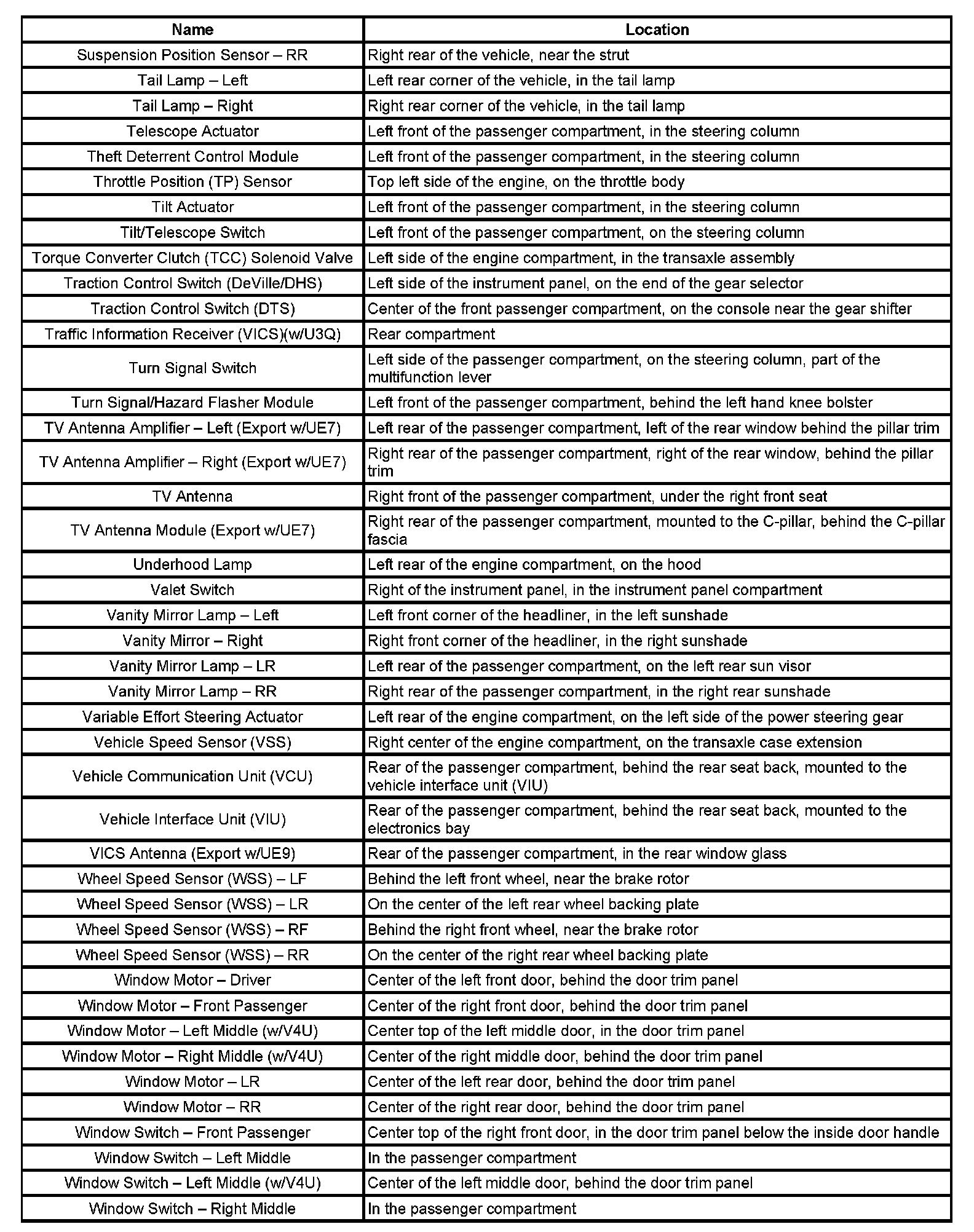

Components
Components
1-2 Sh - Ce:
Ce - Do:
Do - He:
He - I/P:
I/P - Re:
Re - Se:
Se - Su:
Su - Wi:
Wi - Ya:
