Audio Amplifier (With RPO Code UX8)

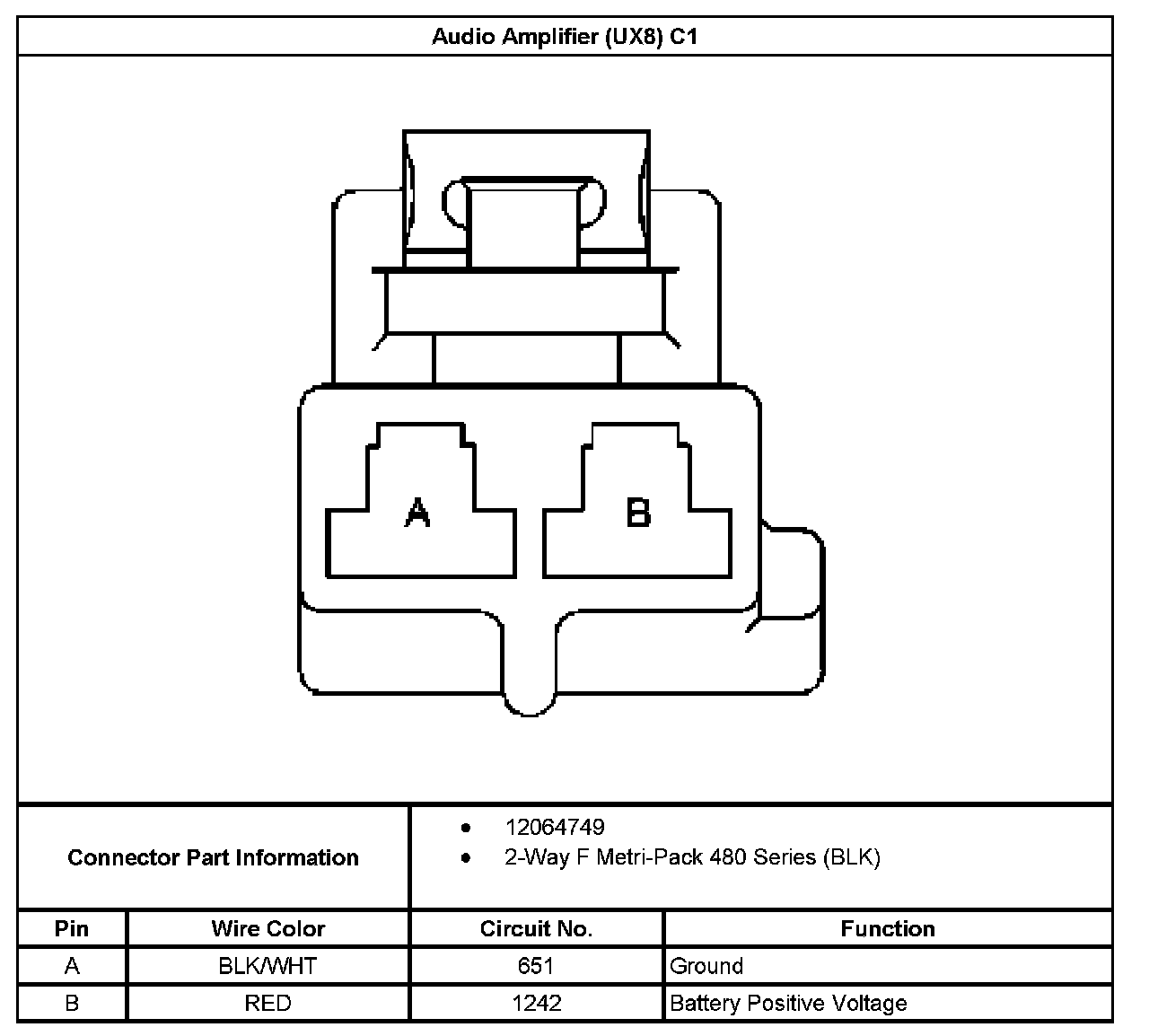

Audio Amplifier (With RPO Code UX8) C1:



Audio Amplifier (With RPO Code UX8) C2:

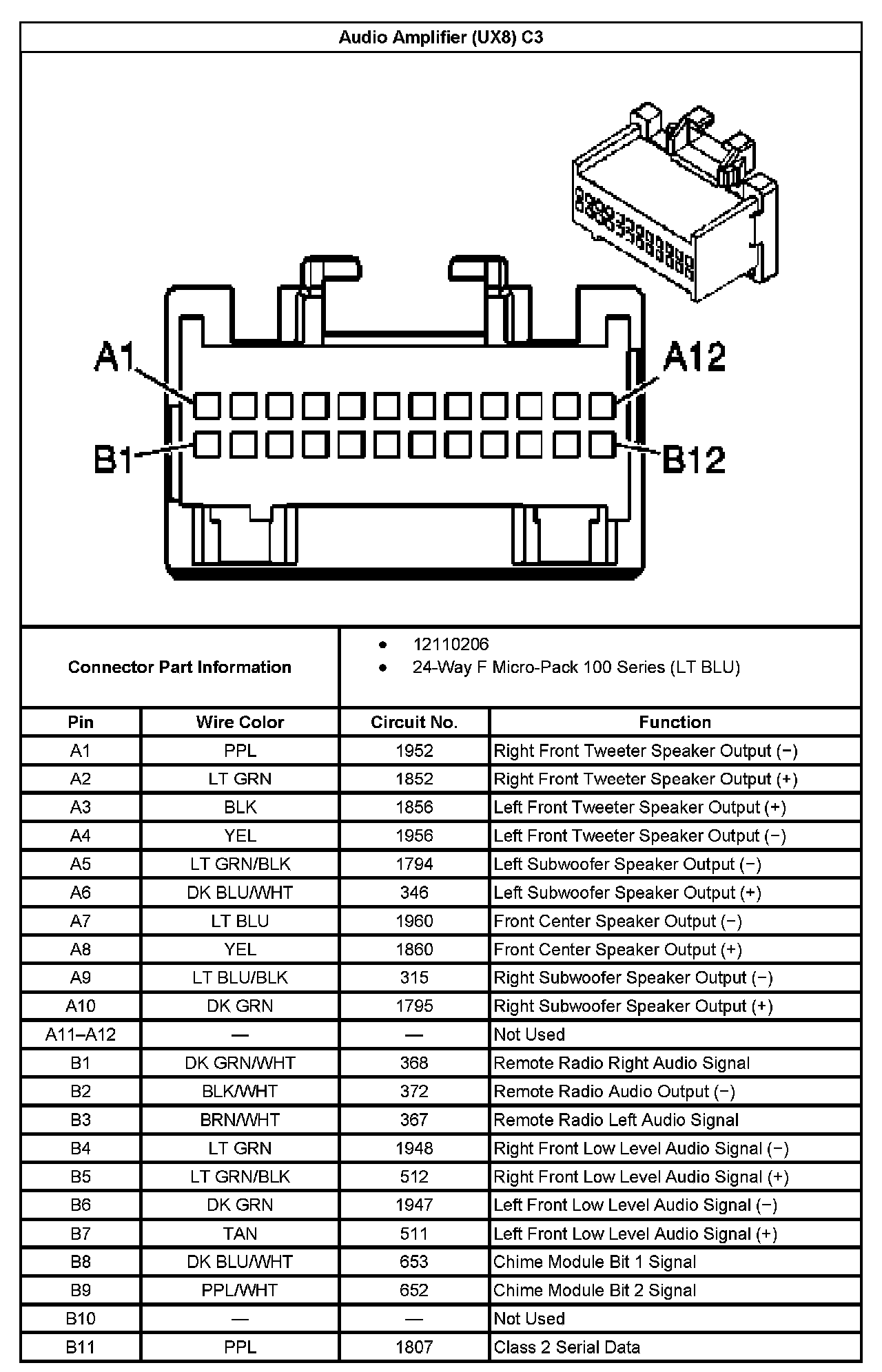

Audio Amplifier (With RPO Code UX8) C3 Part 1:



Audio Amplifier (With RPO Code UX8) C3 Part 2:
