C326
C326

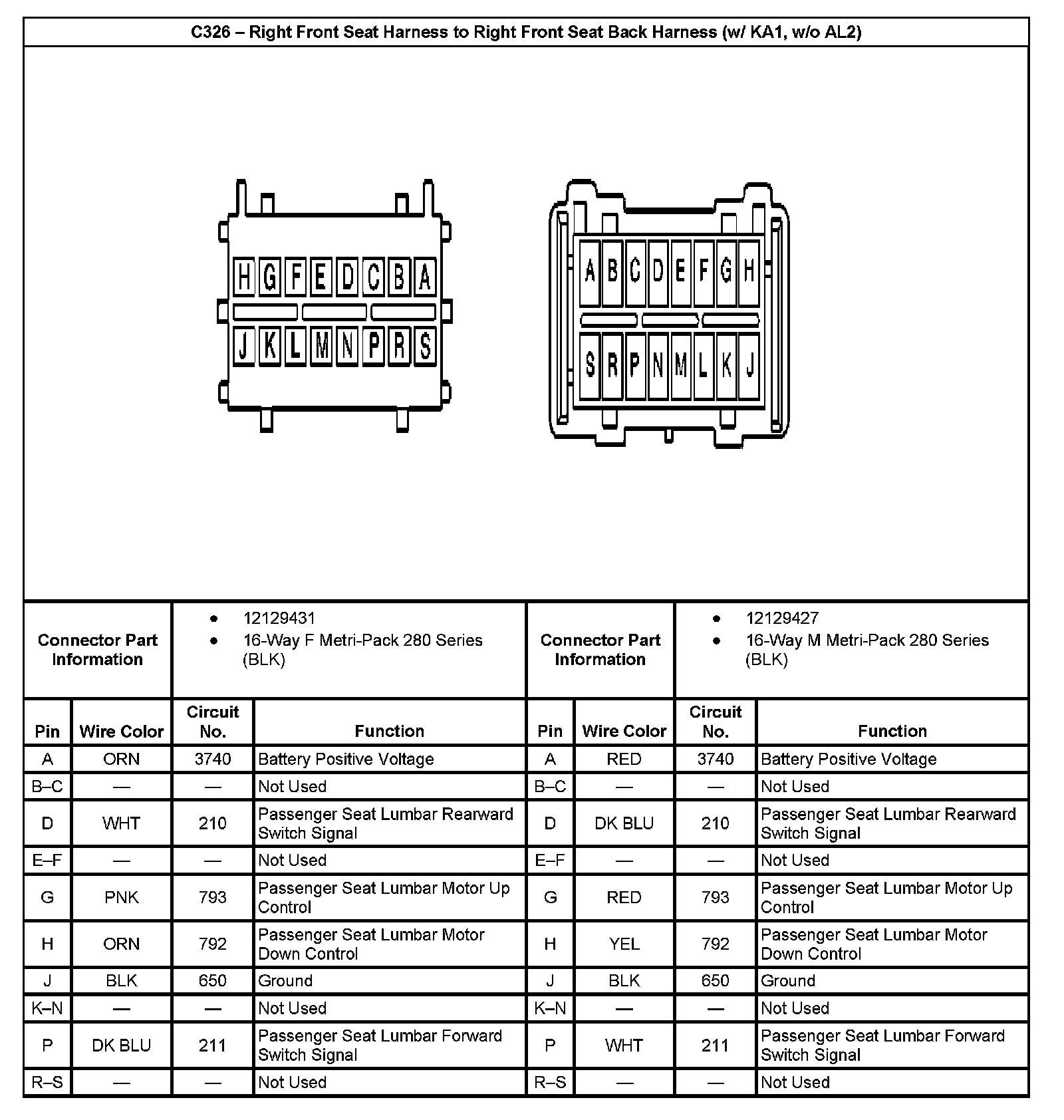

C326 - Right Front Seat Harness To Right Front Seat Back Harness (With RPO Code KA1, Without RPO Code AL2):
