Home >> Cadillac >> 2005 >> DeVille V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> C300 - C399 >> C328

C328

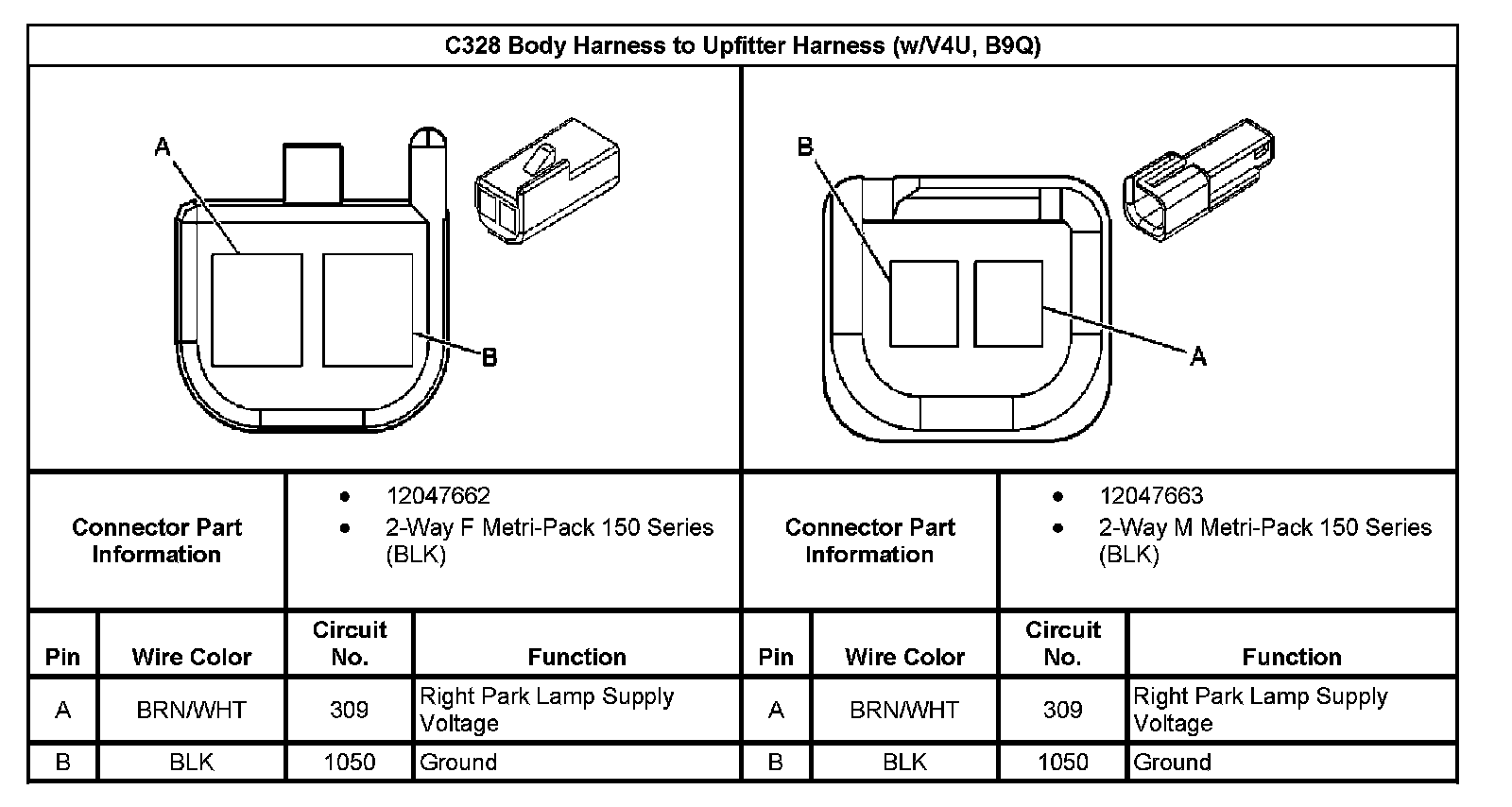

C328 Body Harness To Upfitter Harness (With RPO Code V4U, B9Q):
