C501
C501

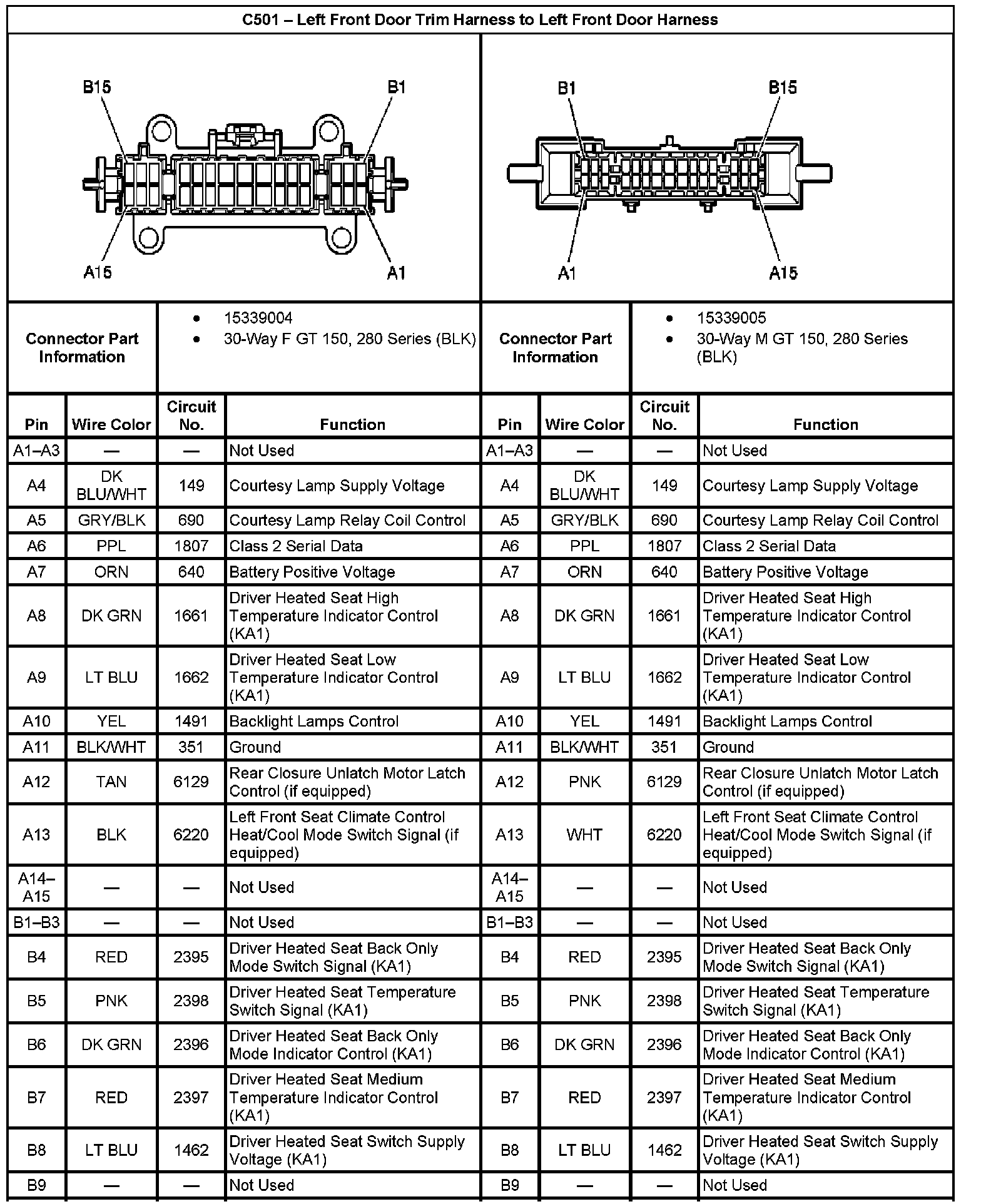

C501 - Left Front Door Trim Harness To Left Front Door Harness Part 1:
C501 - Left Front Door Trim Harness To Left Front Door Harness Part 2:
