Home >> Cadillac >> 2005 >> DeVille V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heads Up Display Unit

Heads Up Display Unit

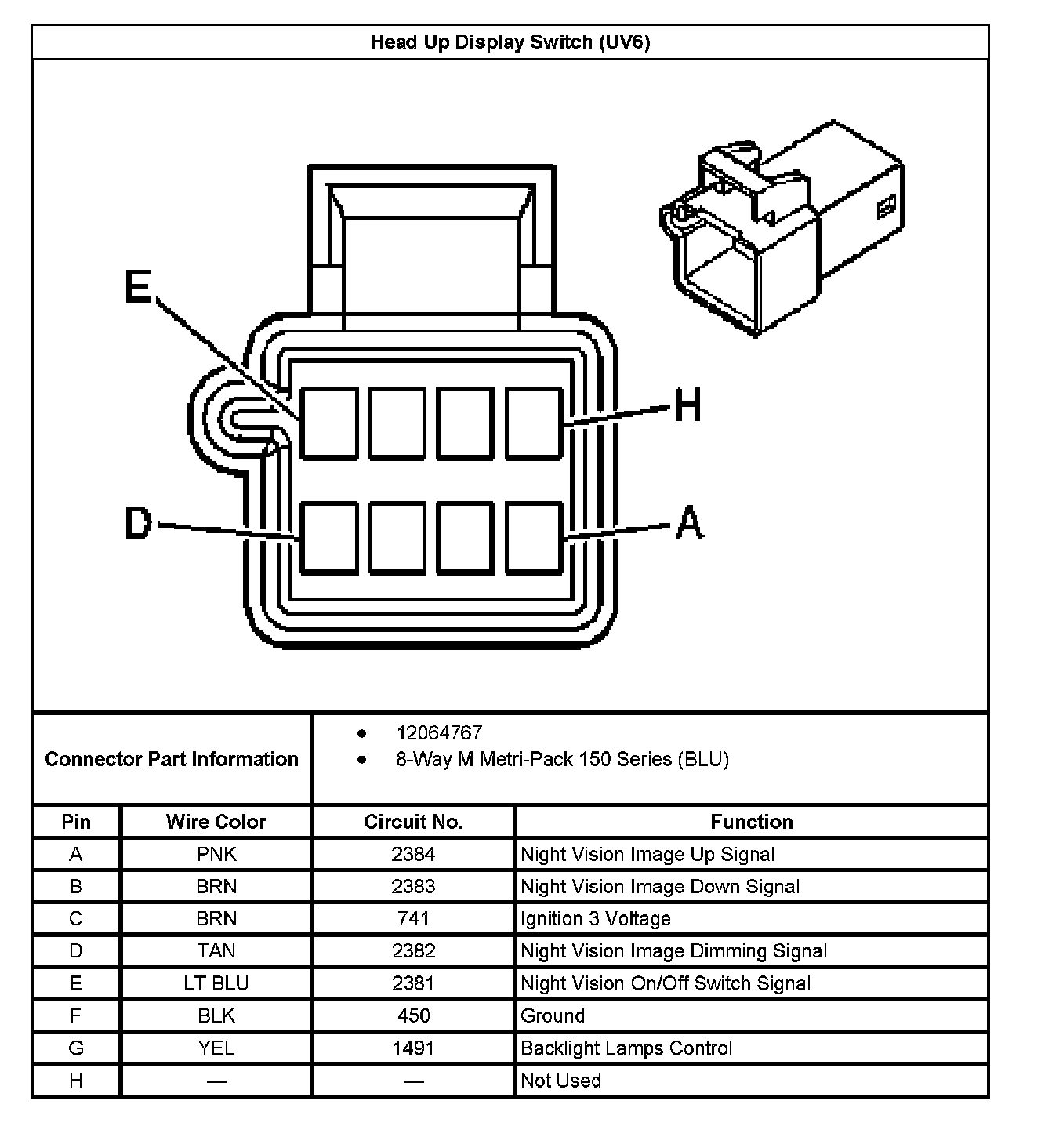

Head Up Display Switch (UV6):

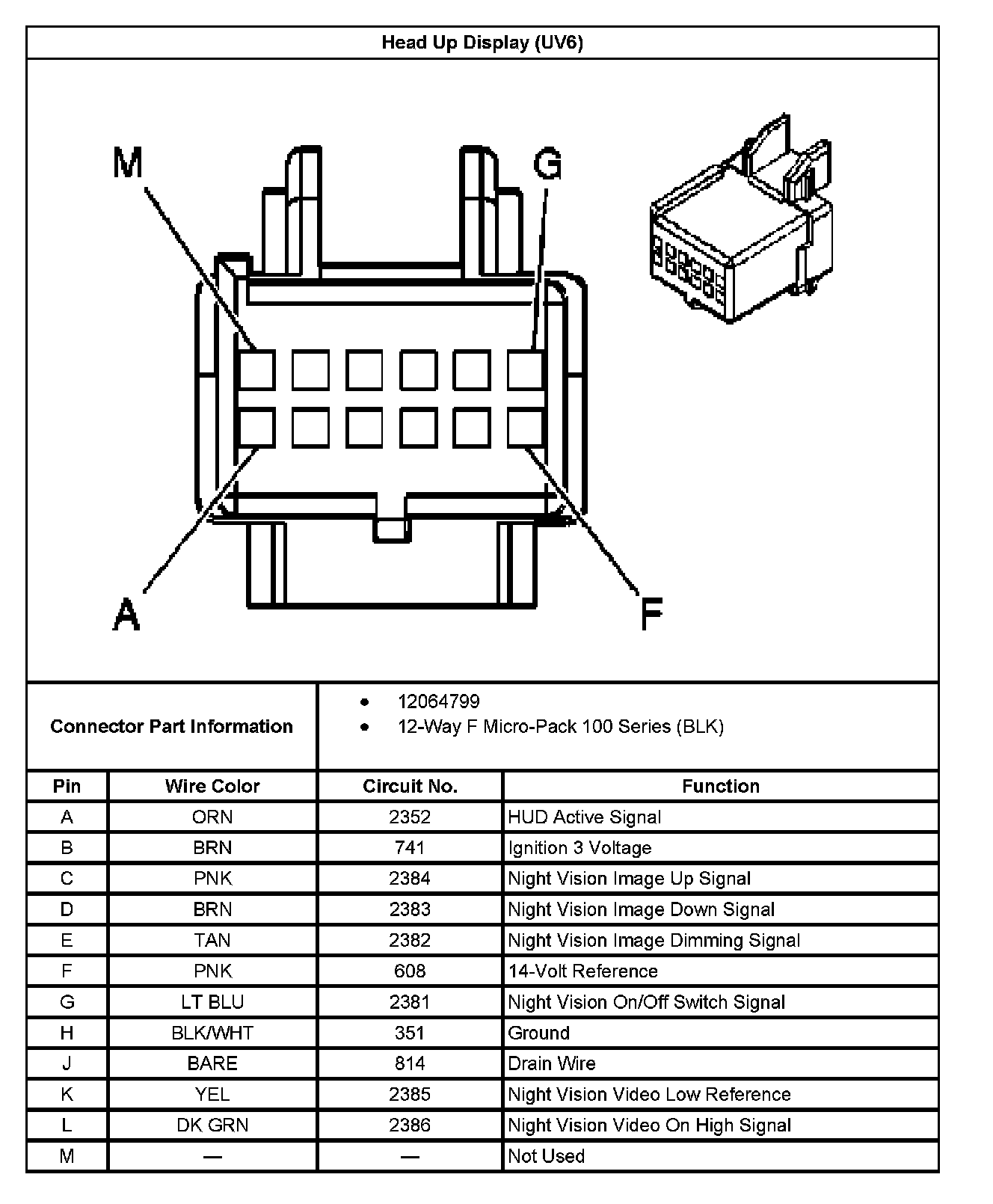

Head Up Display (UV6):
