Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2005
>>
DeVille V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
SP100 - SP199
>>
SP104
SP104

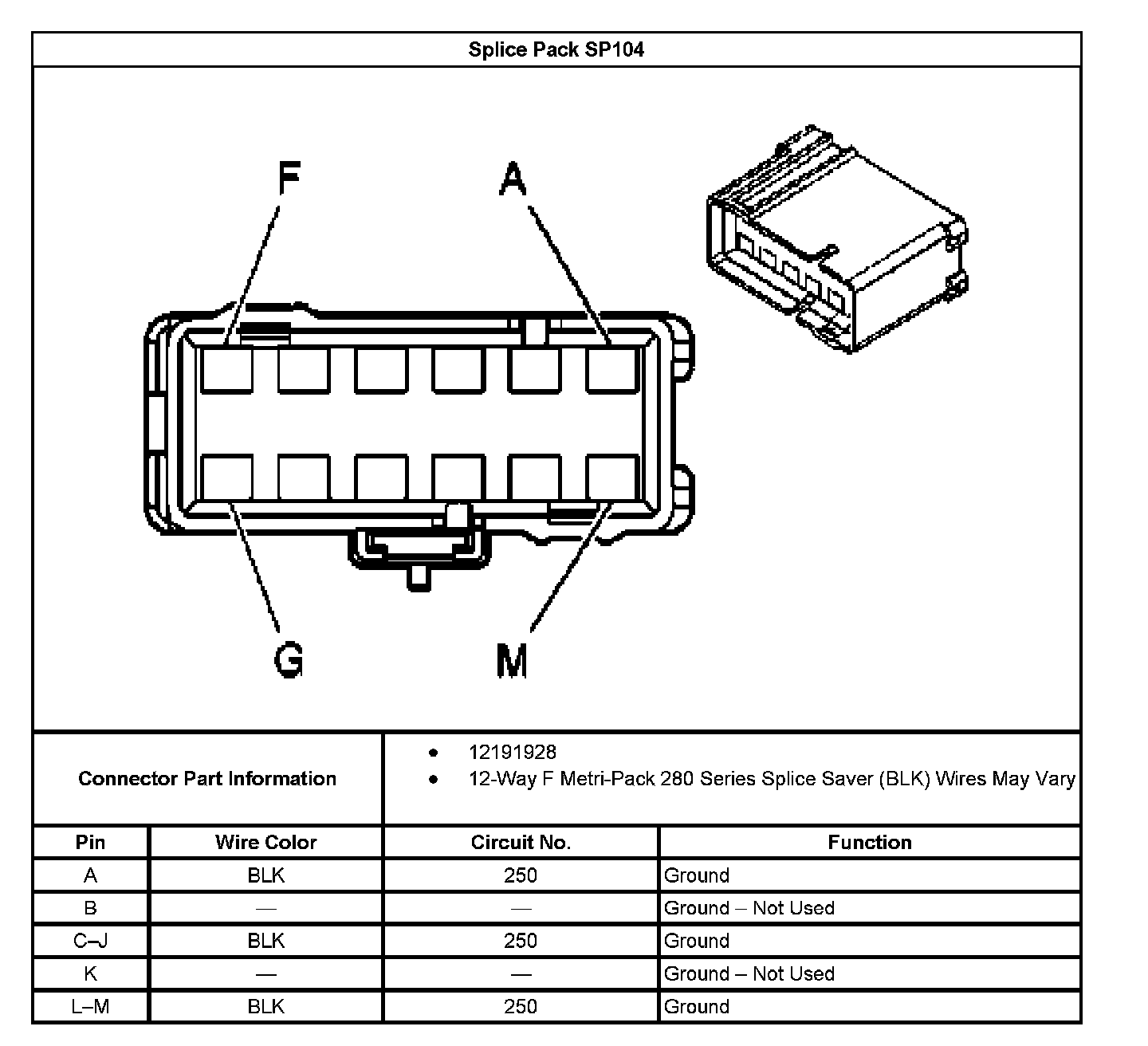

Splice Pack SP104:
