Door Lock Actuator - Front passenger

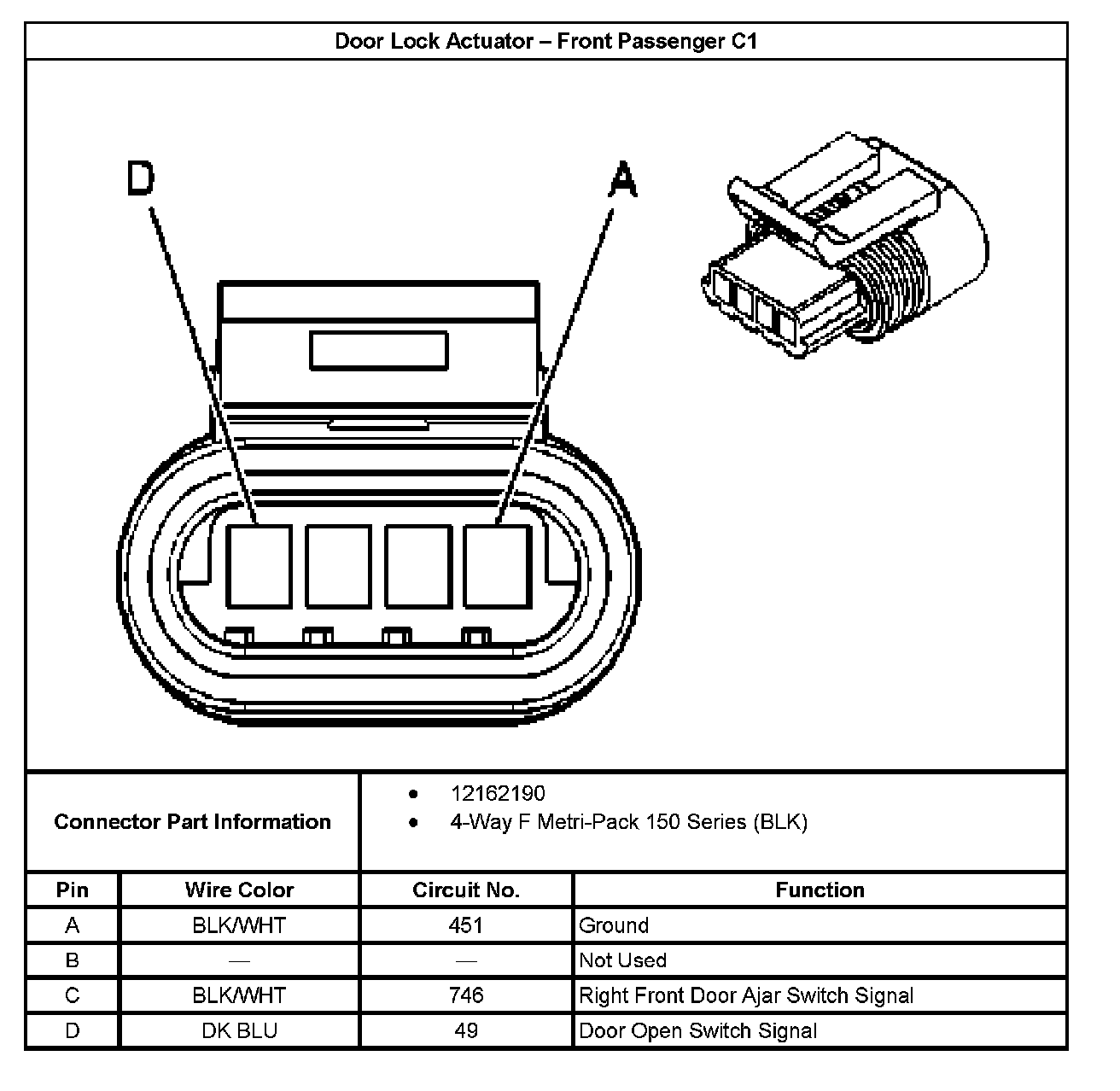

Door Lock Actuator - Front Passenger C1:



Door Lock Actuator - Front Passenger C2:
