Home
>>
Cadillac
>>
2005
>>
DeVille V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
>>
Door Lock Actuator - Right Middle (With RPO Code V4U)
Door Lock Actuator - Right Middle (With RPO Code V4U)
Door Lock Actuator - Right Middle (With RPO Code V4U) C1:

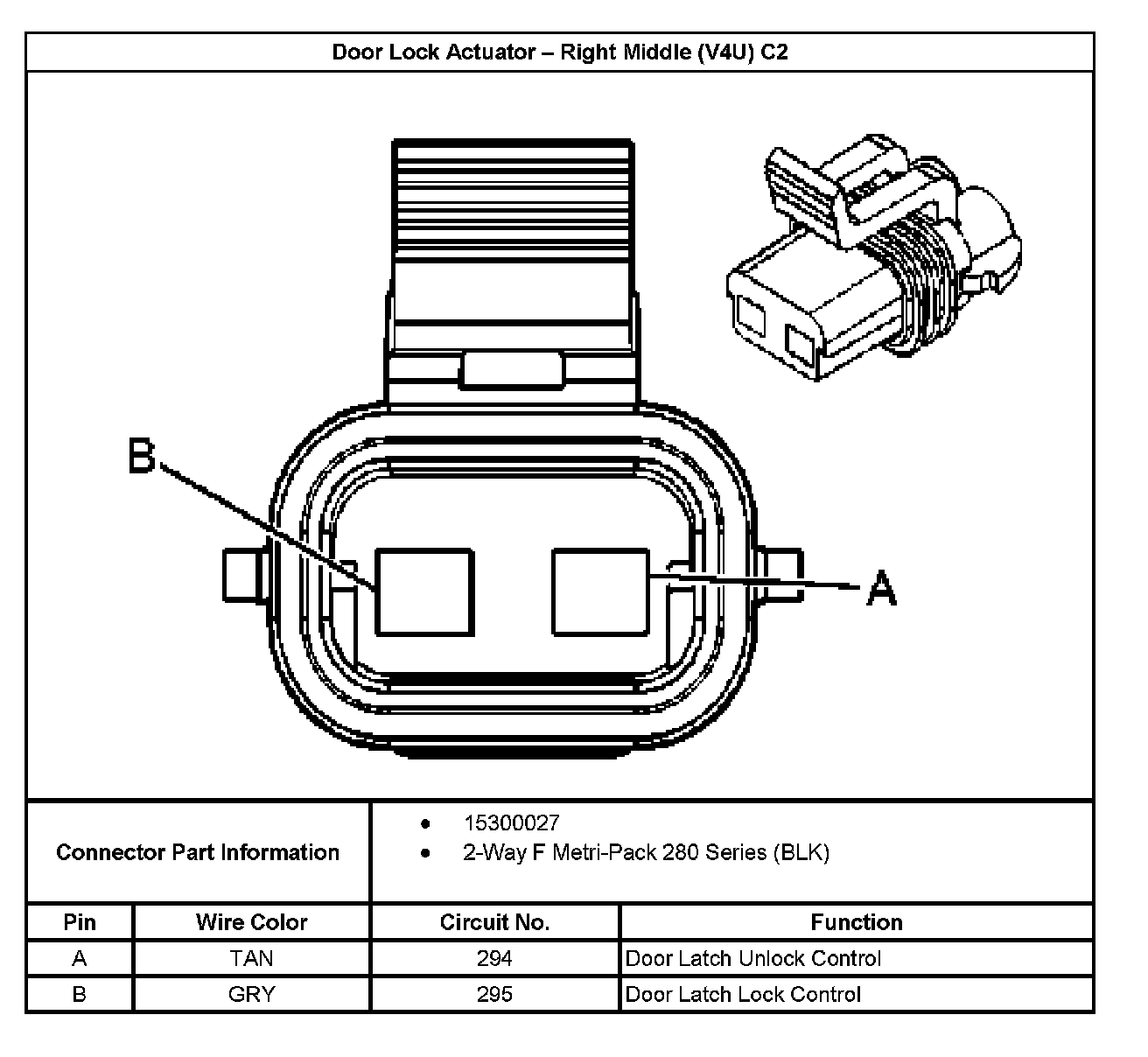

Door Lock Actuator - Right Middle (With RPO Code V4U) C2:
