Seat Lumbar Vertical Motor

Seat Lumbar Vertical Motor - Driver:



Seat Lumbar Vertical Motor - Front Passenger:

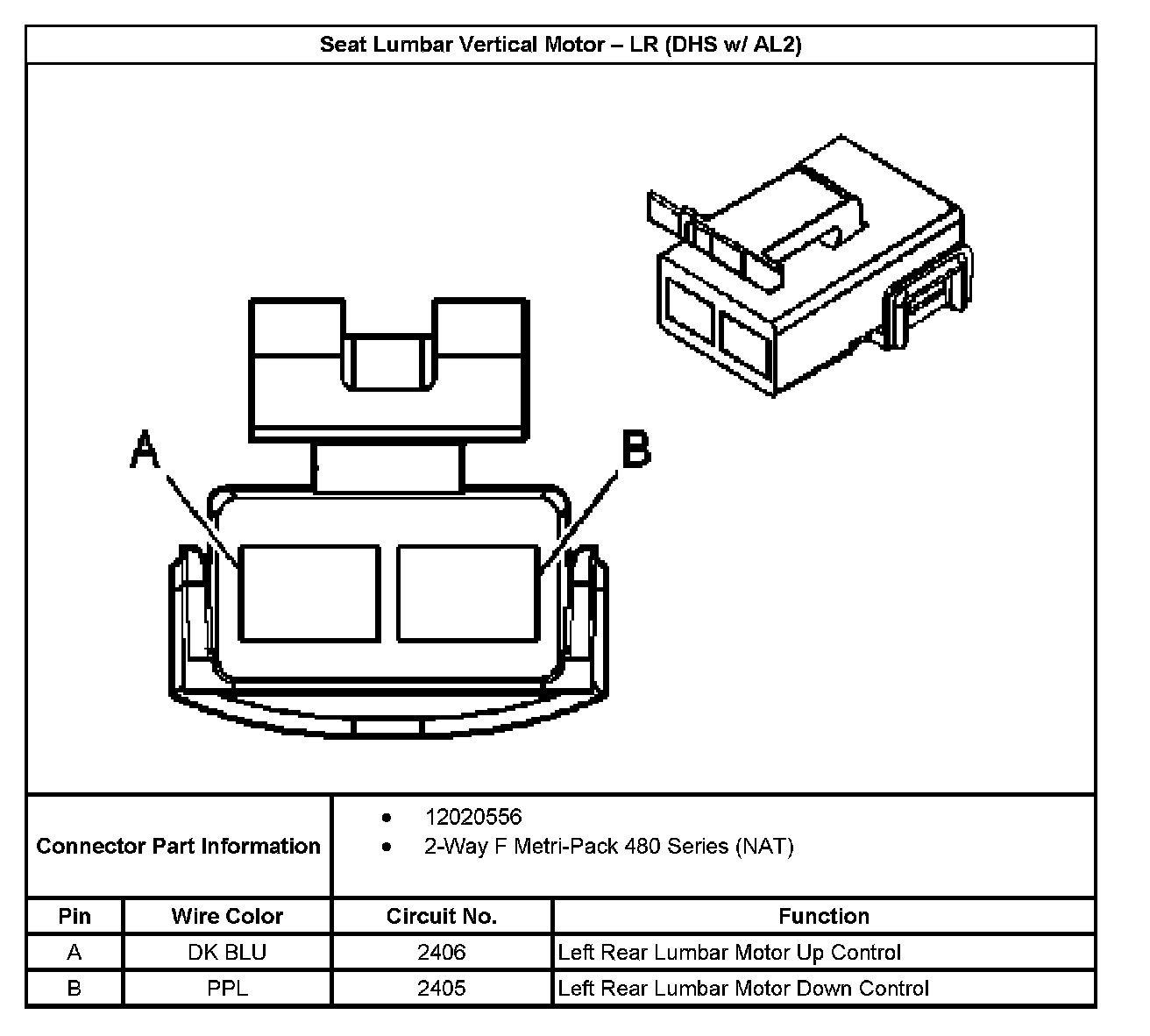

Seat Lumbar Vertical Motor - LR (DHS With RPO Code AL2):

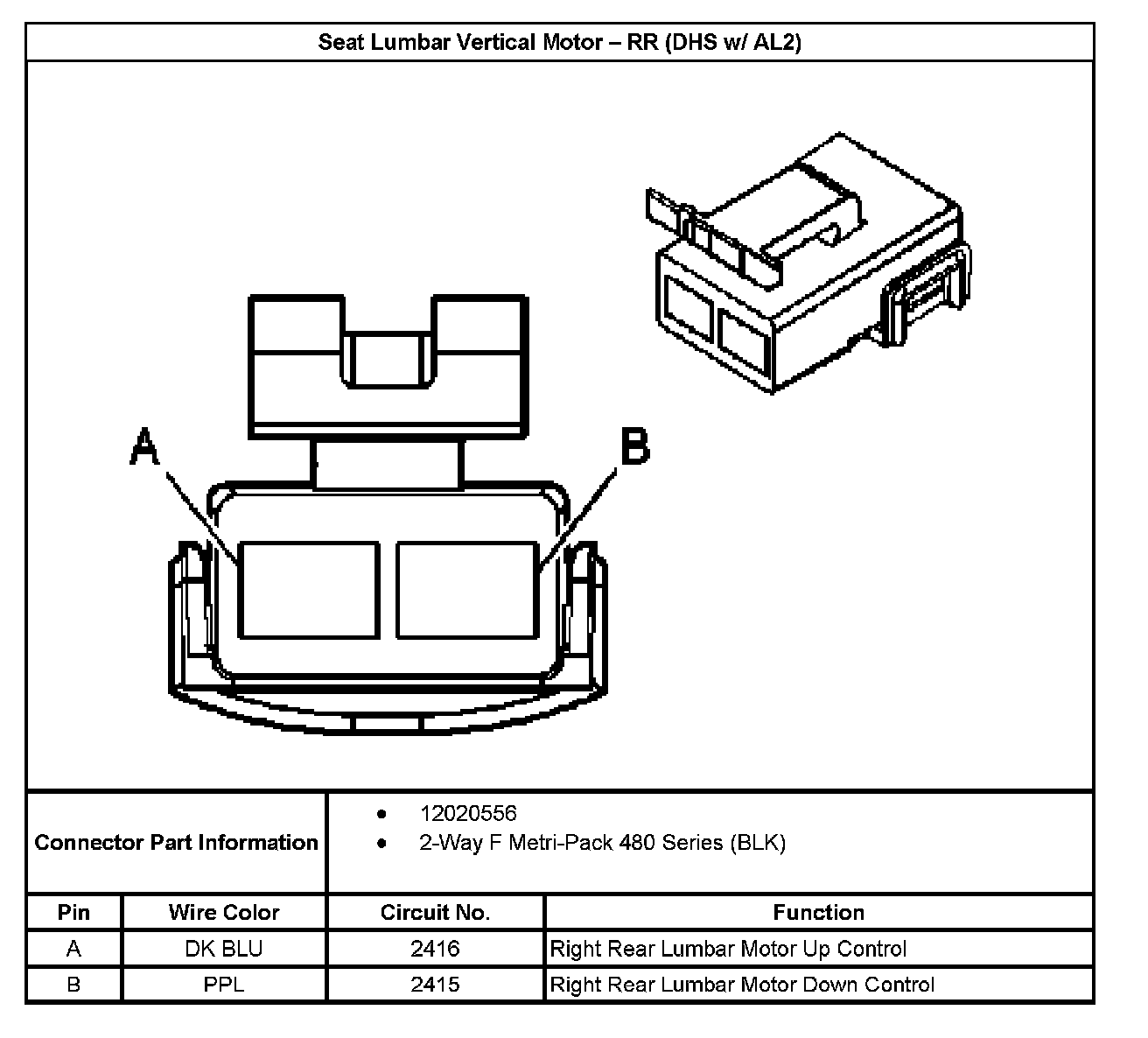

Seat Lumbar Vertical Motor - RR (DHS With RPO Code AL2):
