Power Seat Switch
>>
Seat Adjuster Switch
Seat Adjuster Switch

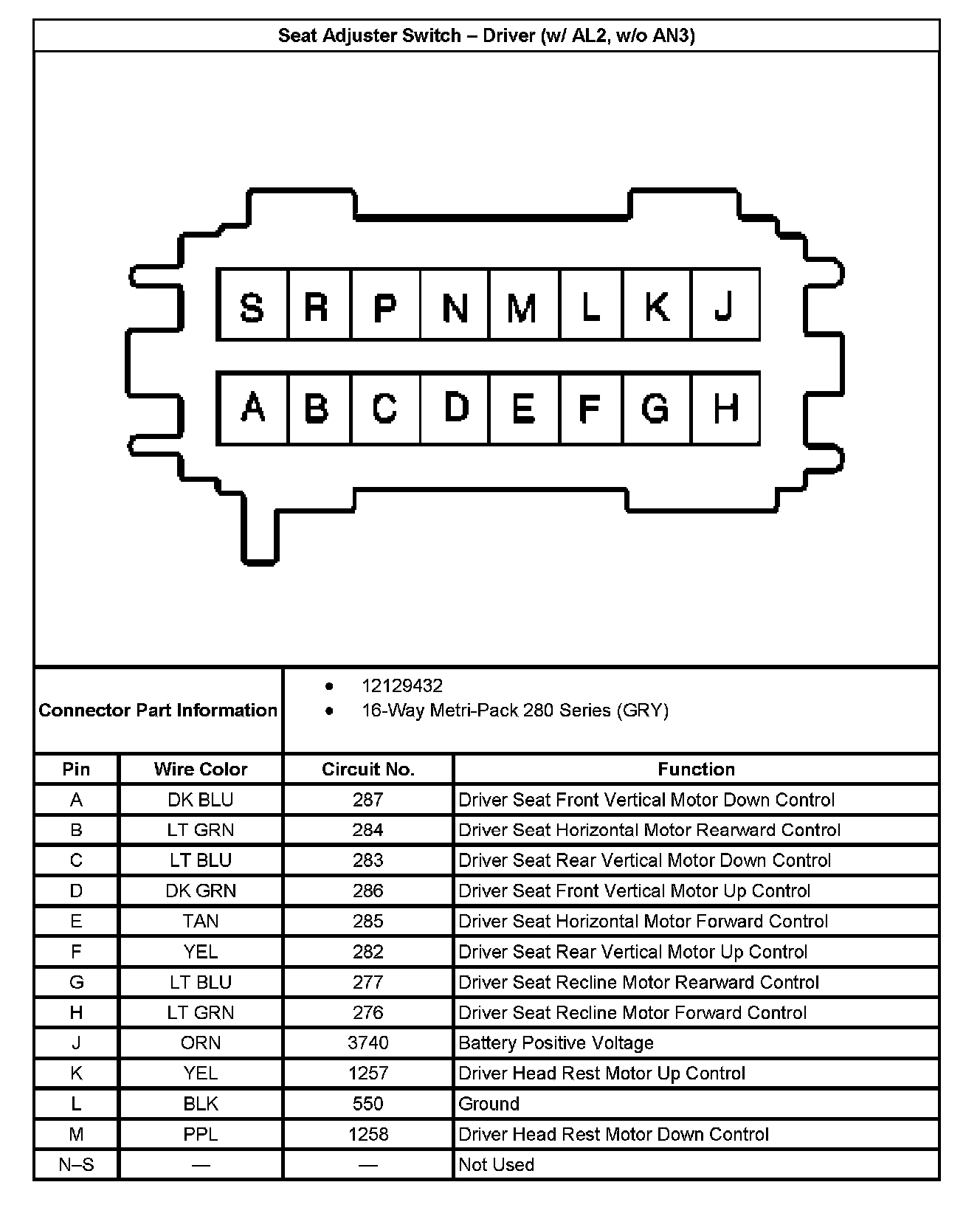

Seat Adjuster Switch - Driver (With RPO Code AL2, Without RPO Code AN3):

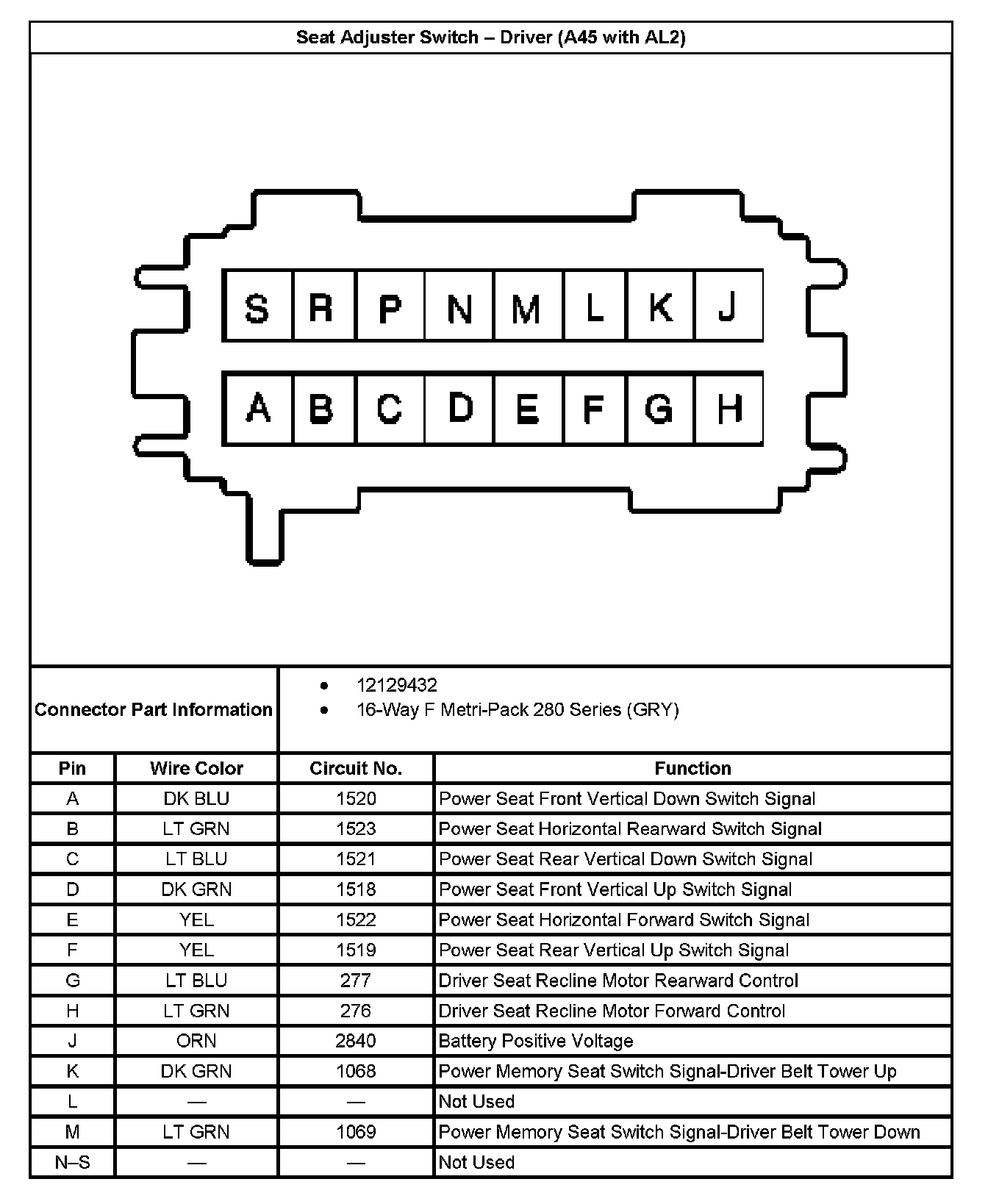

Seat Adjuster Switch - Driver (With RPO Code A45, AL2):
Seat Adjuster Switch - Front Passenger:
