Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2005
>>
DeVille V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

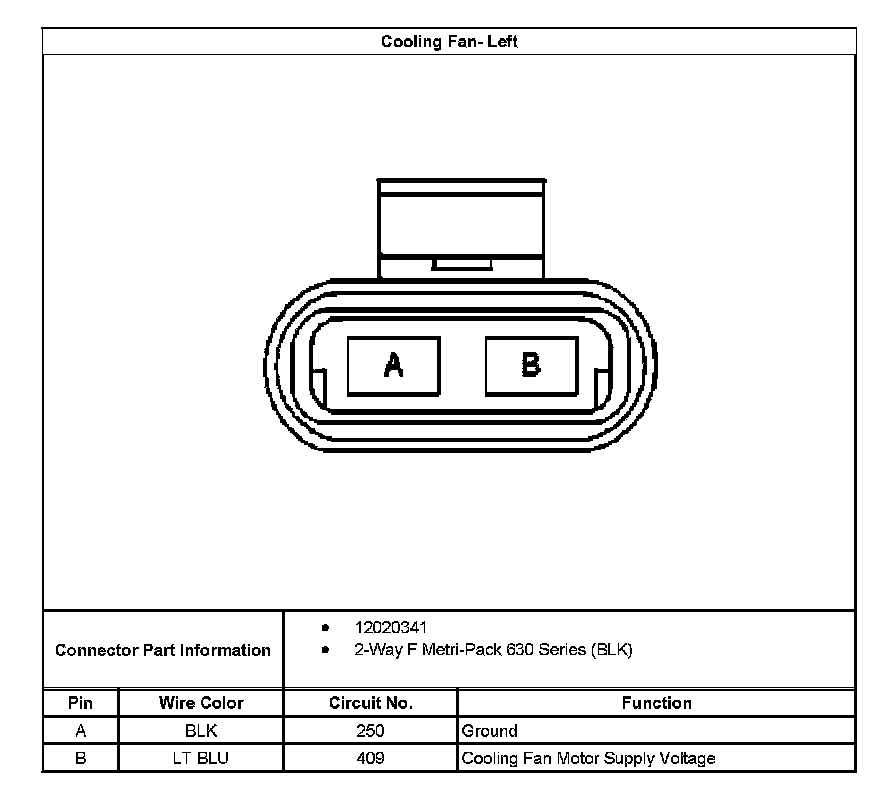

Cooling Fan - Left:
Cooling Fan - Right:
