Seat Temperature Element
>>
Heated Seat Back Element
Heated Seat Back Element

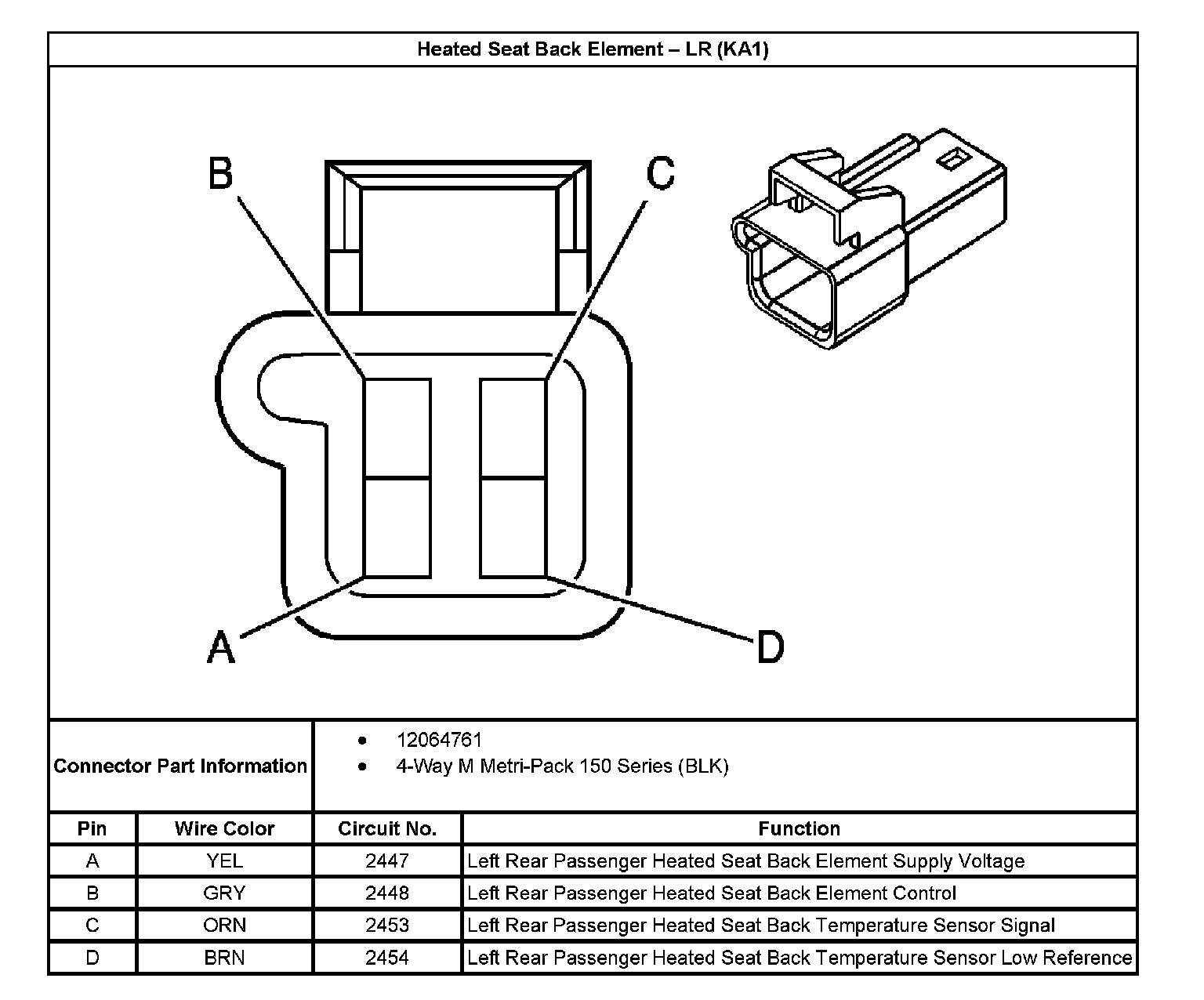

Heated Seat Back Element - LR (With RPO Code KA1):

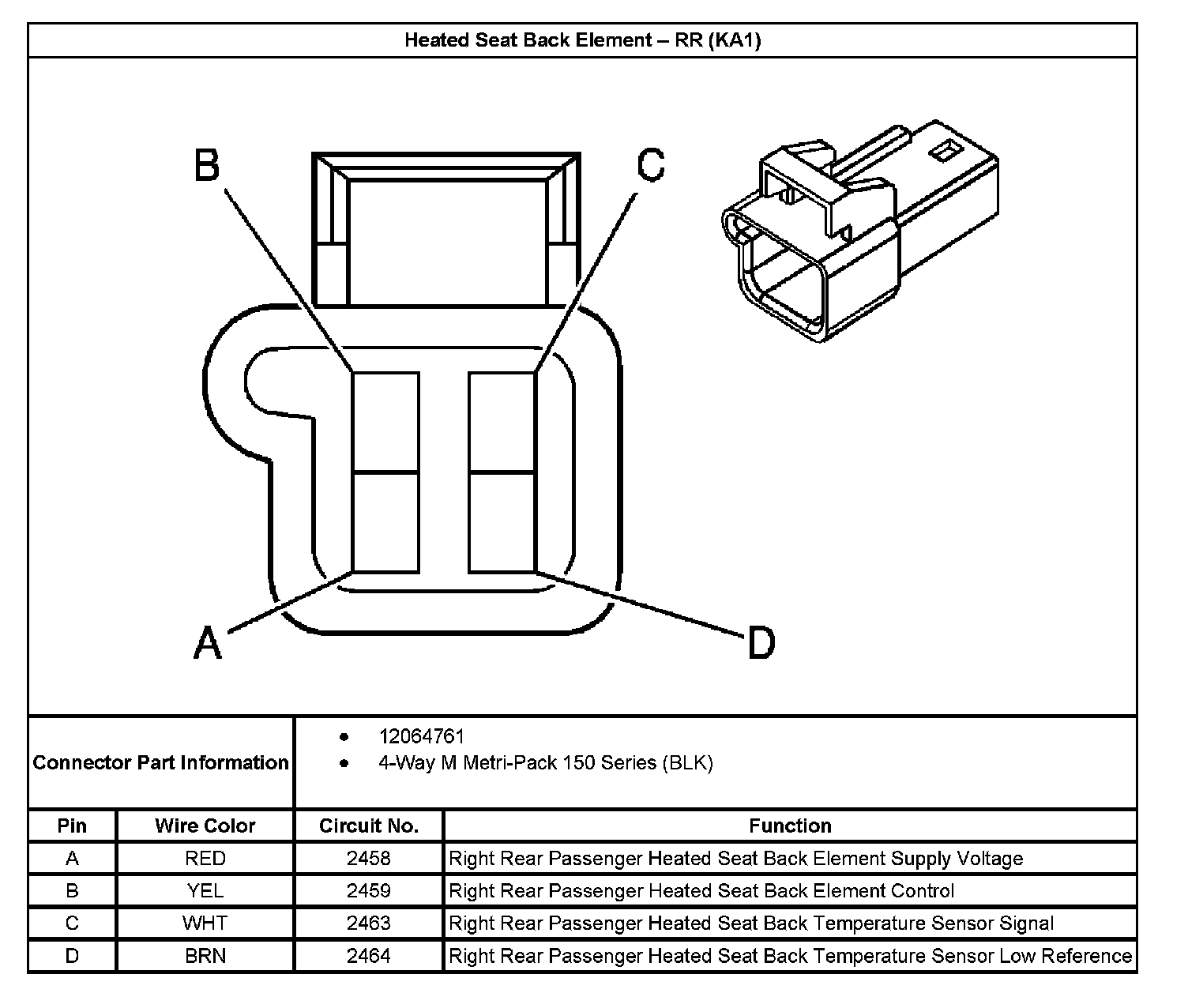

Heated Seat Back Element - RR (With RPO Code KA1):
