C205

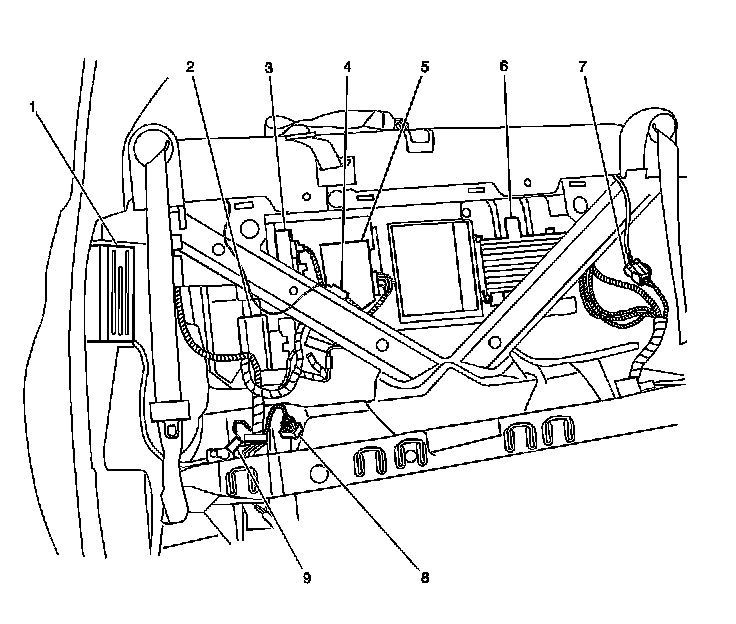

Behind Rear Seat Back
1 - RR Inflatable Restraint Side Impact Module
2 - Rear Integration Module (RIM)
3 - Electronic Suspension Control (ESC) Module
4 - C205
5 - Vehicle Communication Interface Module (VCIM)
6 - Audio Amplifier
7 - T.V. Antenna Module
8 - Rear Door Lock Relay (w/B9Q)
9 - RR Inflatable Restraint Side Impact Module Connector

Behind Rear Seat Back:

Left Front Of The Center Console, Near The Rear Blower Motor:
