SIR Diagrams

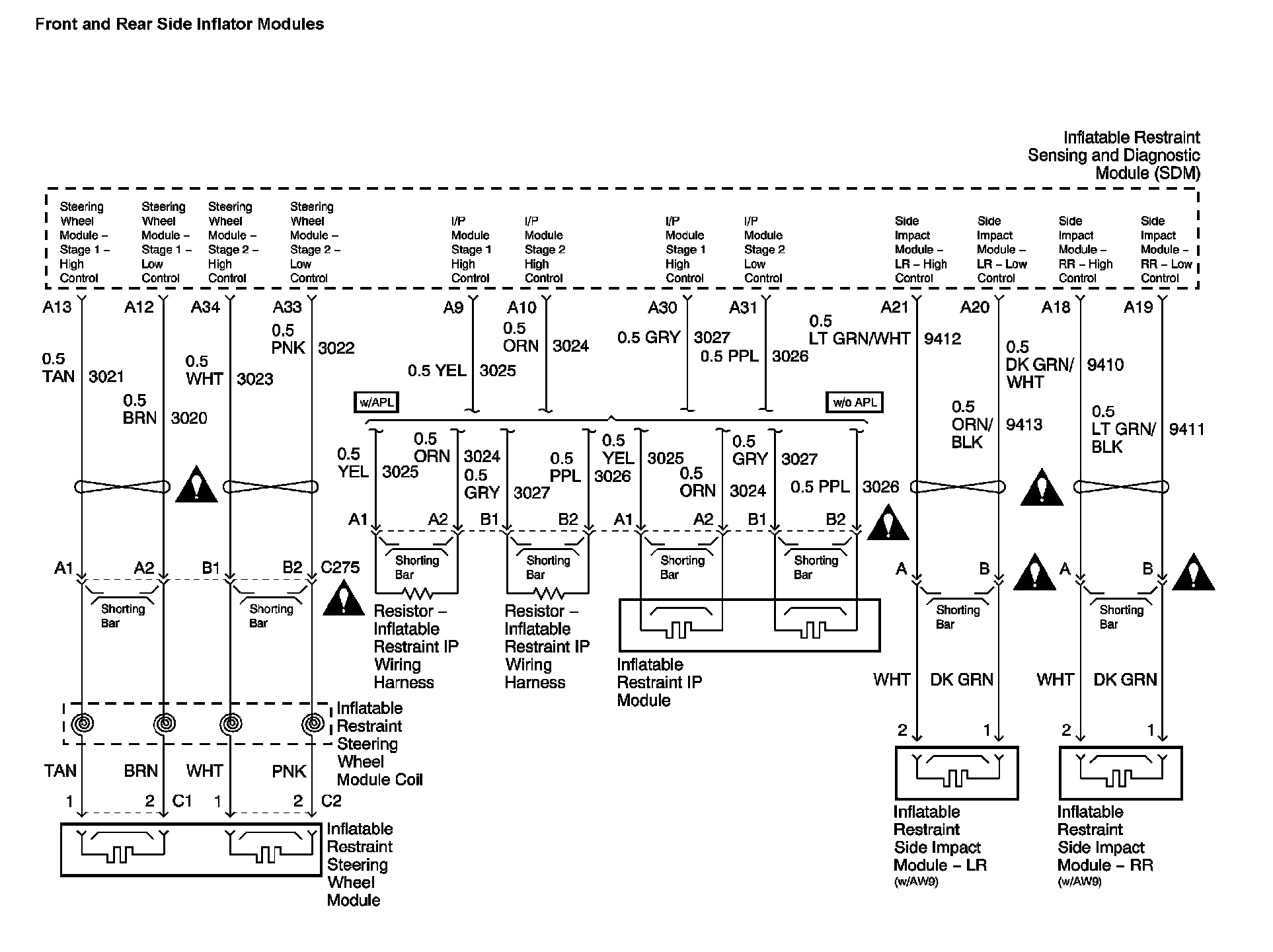

SIR Diagram 1:

SIR Diagram 2:

SIR Diagram 3:

LOCATION: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
