DeVille V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Instrument Panel Views
>>

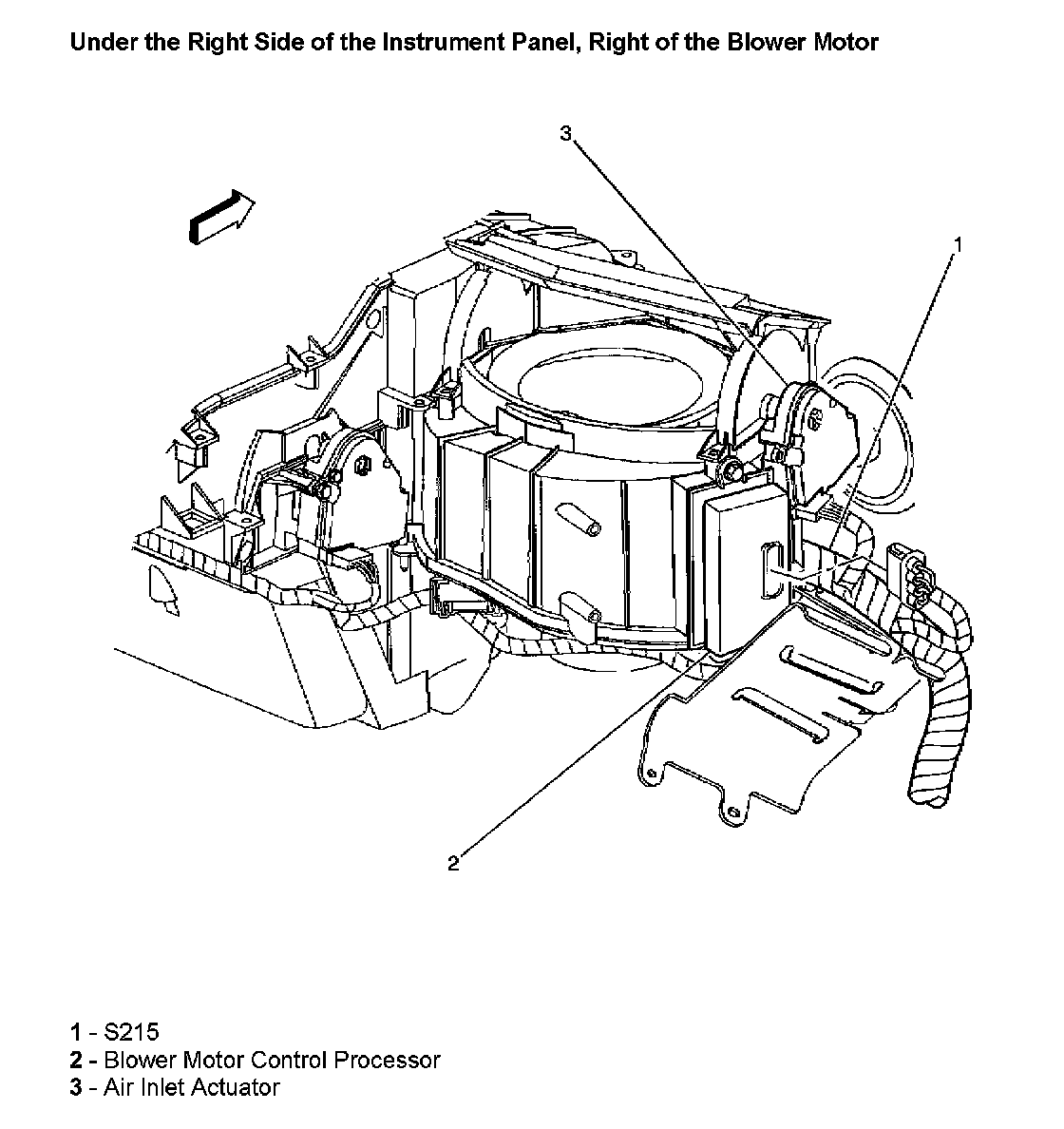

Under the Right Side of the Instrument Panel, Right of the Blower Motor
Under the Right Side of the Instrument Panel, Right of the Blower Motor
Under The Right Side Of The Instrument Panel, Right Of The Blower Motor:
