Cooling System: Locations

Cooling System Component Views

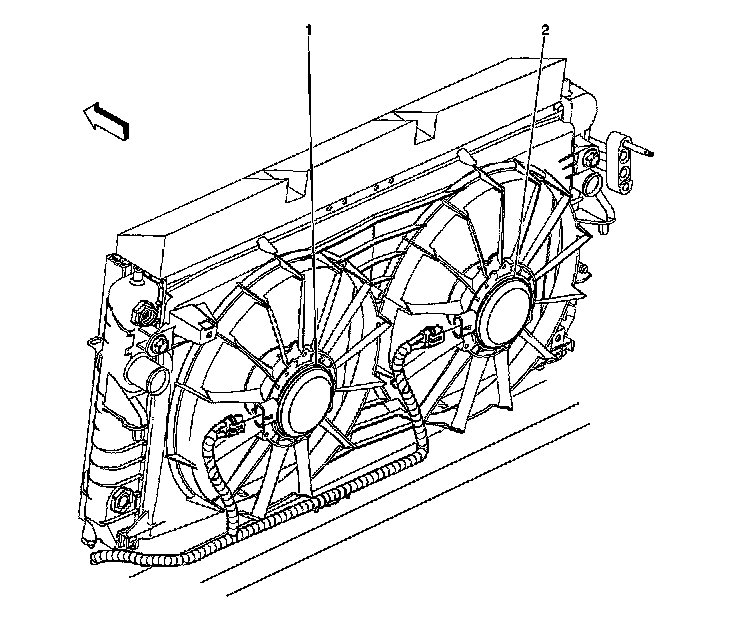

Front of the Engine Compartment, Behind the Radiator





1. Cooling Fan - Left
2. Cooling Fan - Right

AIR Relay





1. Secondary Air Injection (AIR) Pump Relay
2. Coolant Level Switch (in Coolant Surge Tank)
