Glove Box Lamp: Service and Repair

INSTRUMENT PANEL (I/P) STORAGE COMPARTMENT LAMP REPLACEMENT

REMOVAL PROCEDURE
1. Remove the instrument panel storage compartment.

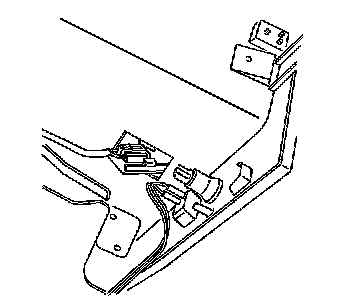

2. Insert a small bladed screwdriver and release the retainer tabs.




3. Remove the lamp assembly.

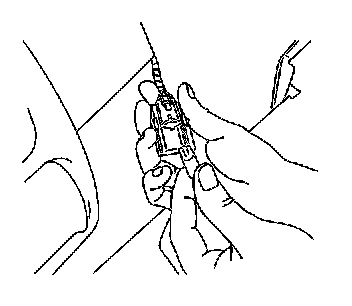

4. Remove the lamp.

INSTALLATION PROCEDURE




1. Install the instrument panel storage compartment lamp bulb.




2. Install the lamp assembly to the storage compartment.
3. Install the instrument panel storage compartment.
