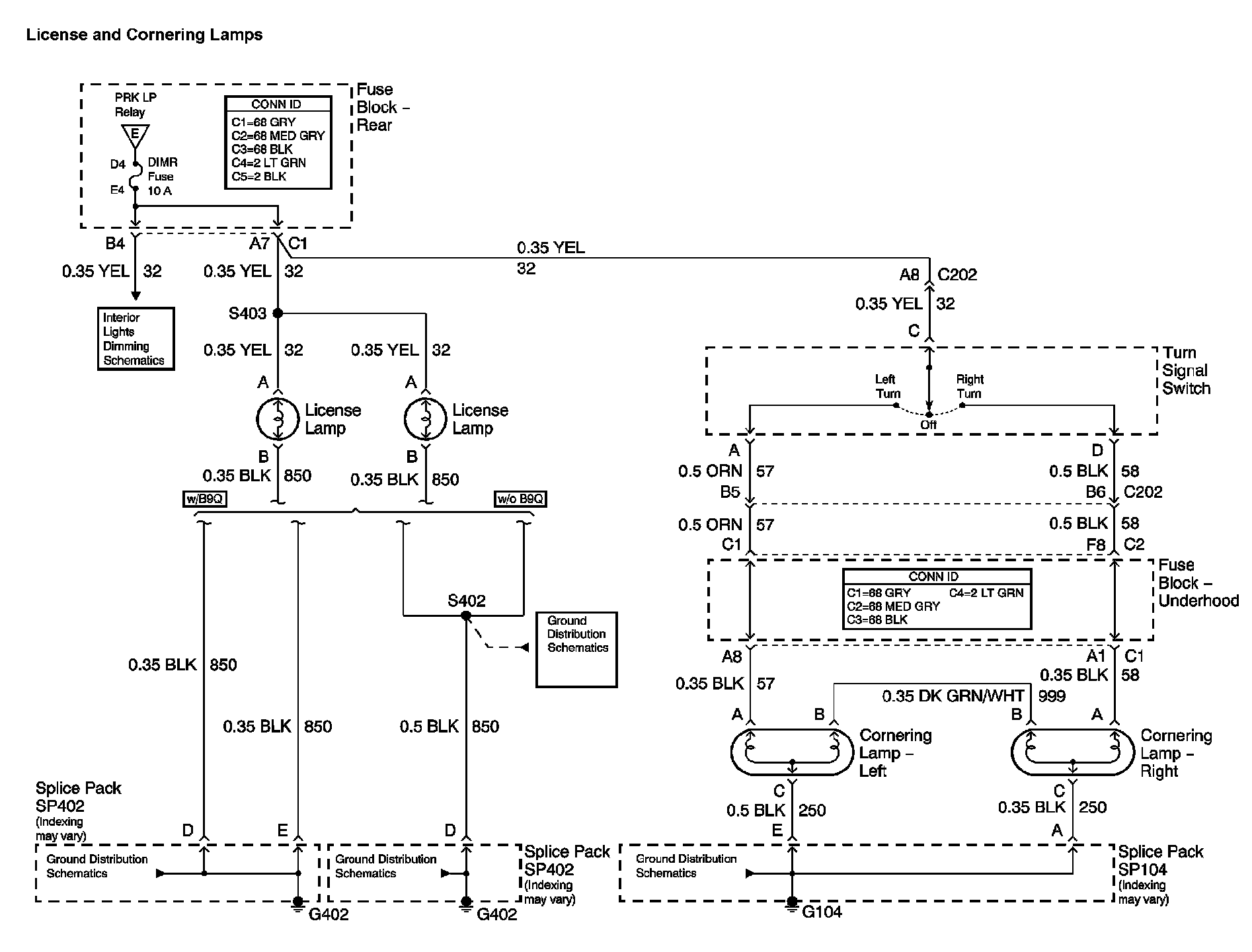

Exterior Lights Diagram 7 With RPO Code V92

Exterior Lights Diagram 7 (With V92):

Previous Diagram Exterior Lights Diagram 6 With RPO Code V92

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
