Home
>>
Cadillac
>>
2005
>>
DeVille V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Connectors By Number
>>
C300 - C399
>>
C312
C312

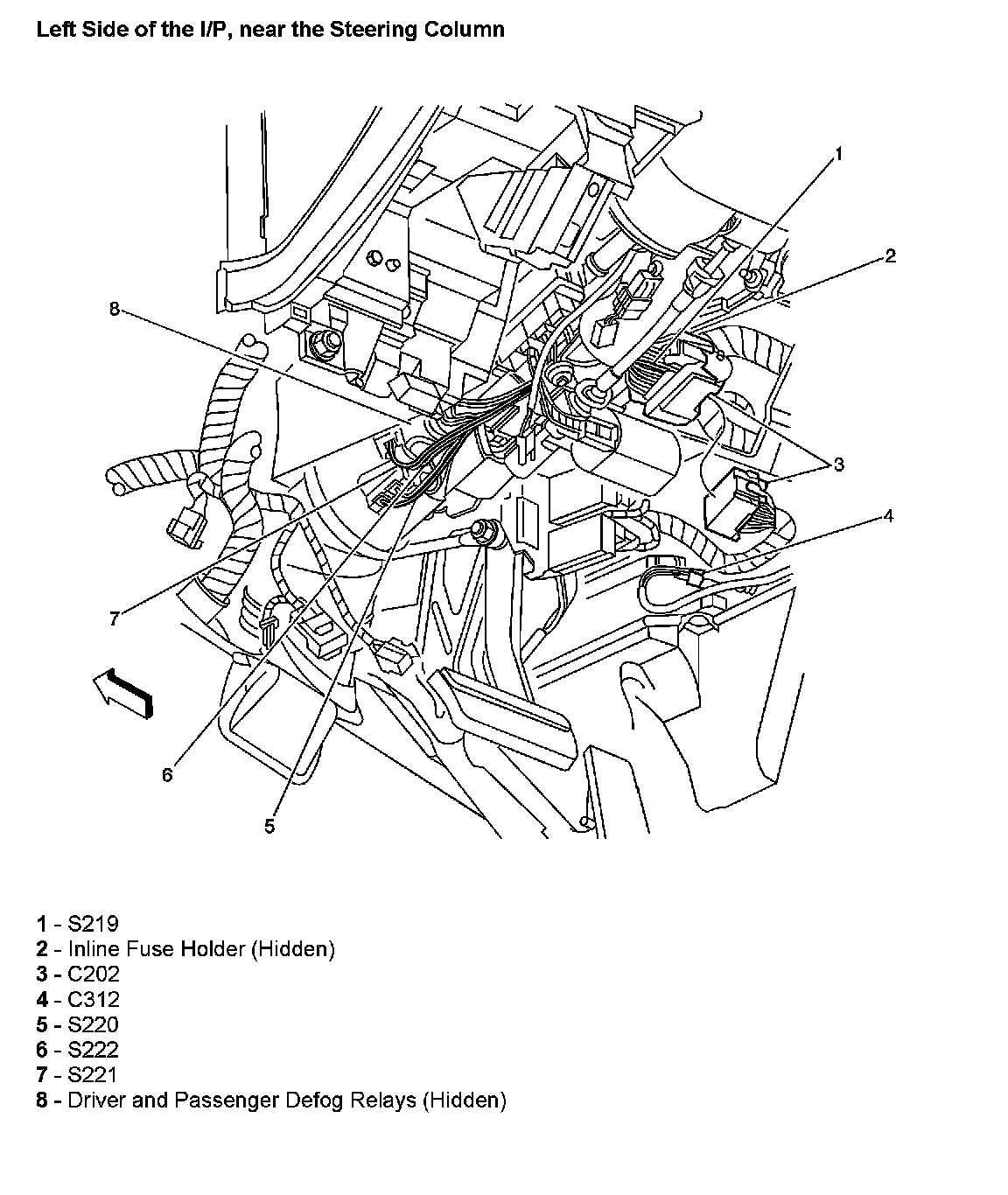

Left Side Of The I/P, Near The Steering Column:
