Radiator Hose Replacement - Inlet

Radiator Hose Replacement - Inlet

^ Tools Required
- J 38185 Hose Clamp Pliers
- J 38543 Heater Hose Clamp Tool

Remove Procedure
1. Partially drain the cooling system.
2. Remove the upper filler panel.





3. Position the J 38543 (3) to the clamp in order to remove the inlet radiator hose (2) from the radiator (1).

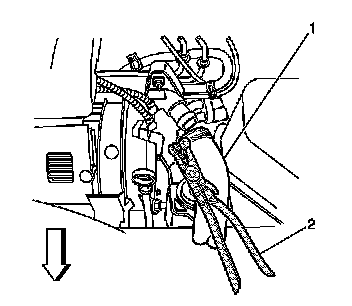

4. Position the J 38185 (2) to the clamp in order to remove the inlet radiator hose (1) from the engine.





5. Remove the inlet radiator hose from the vehicle.

Installation Procedure
1. Install the inlet radiator hose (1) into the original position.





2. Position the J 38185 (2) on the hose clamp and reposition.





3. Install the inlet radiator hose (2) to the radiator (1).
4. Position the J 38543 (3) on the inlet radiator hose clamp and reposition.
5. Install the upper filler panel.
6. Fill the cooling system.
