Seat Belt Tensioner: Diagrams

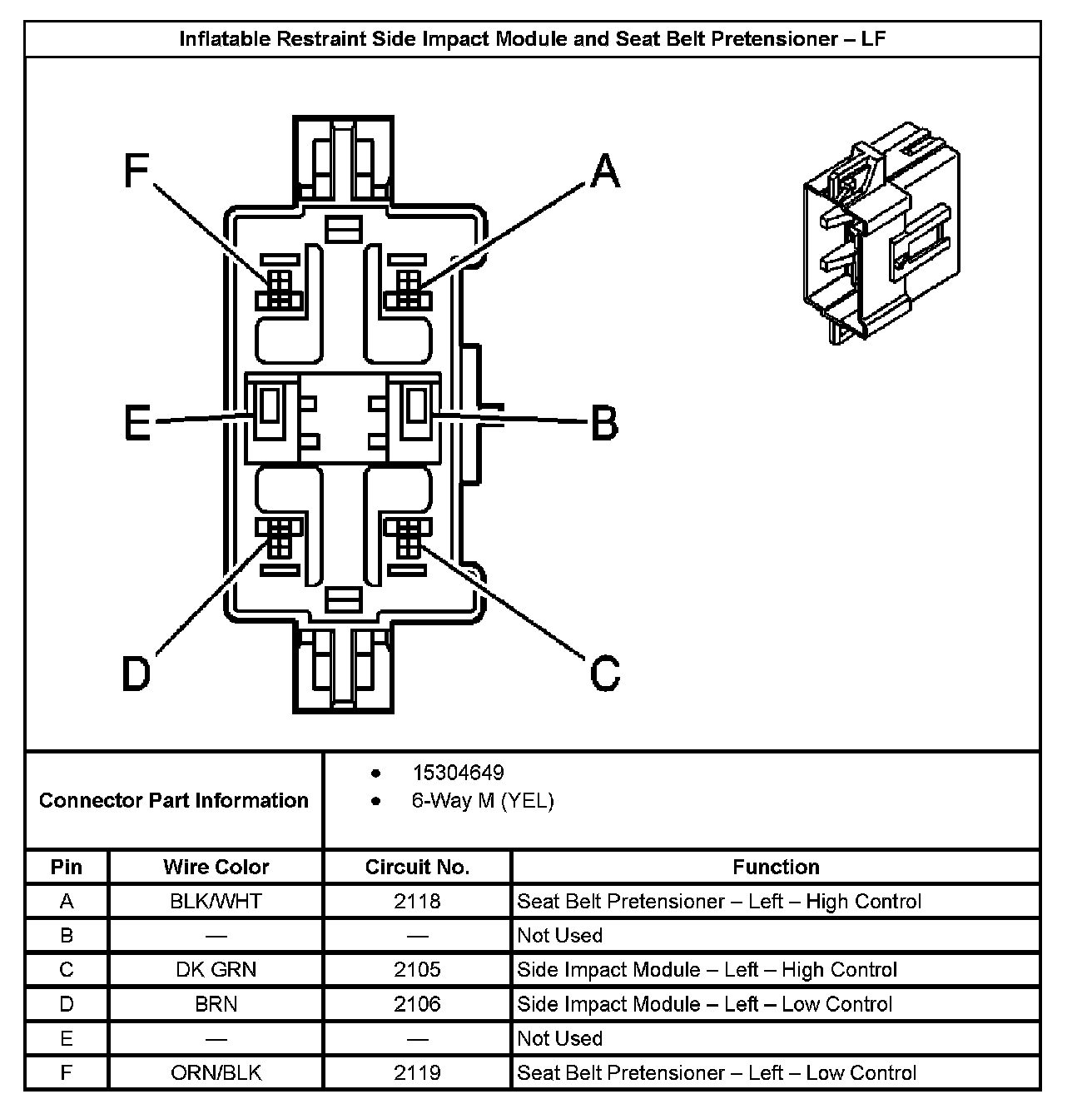

Inflatable Restraint Side Impact Module and Seat Belt Pretensioner - LF:
Inflatable Restraint Side Impact Module and Seat Belt Pretensioner - RF:
