Procedures

SUNROOF SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Carefully pull down on the overhead console to release the four retainer clips.
2. Disconnect the electrical connectors.

NOTE: Care should be taken not to damage the flat wire harness.

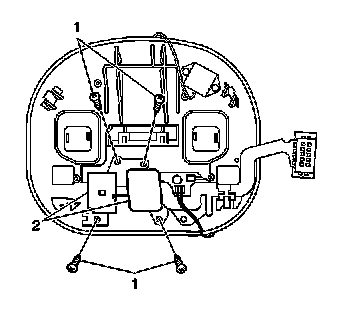

3. Remove the screws (1) securing the sunroof switch (2) and the vent switch (2) to the backside of the overhead console.

IMPORTANT: The sunroof switch and the vent switch must be replaced as a pair.

4. Remove the sunroof switch (2) and the vent switch (2) from overhead console.

INSTALLATION PROCEDURE




1. Install the sunroof switch (2) and the vent switch (2) to the overhead console.
2. Install the screws (1) that retain the sunroof switch (2) and the vent switch (2) to the overhead console.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 1 N.m (9 lb in).




3. Connect the electrical connectors.

IMPORTANT: Care should be taken not to damage the flat wire harness.

4. Install the overhead console into the opening in the headliner.
5. Push in on the overhead console to engage the four retainer clips.
