Disconnect/Connect Procedure

BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE

REMOVAL PROCEDURE




1. Turn OFF all the lamps and accessories.

CAUTION:
- Refer to SIR Caution in Service Precautions.
- Before servicing any electrical component, the ignition key must be in the OFF or LOCK position and all electrical loads must be OFF, unless instructed otherwise in these procedures. If a tool or equipment could easily come in contact with a live exposed electrical terminal, also disconnect the negative battery cable. Failure to follow these precautions may cause personal injury and/or damage to the vehicle or its components.

2. Make sure the ignition switch is OFF.
3. Remove the rear seat cushion.

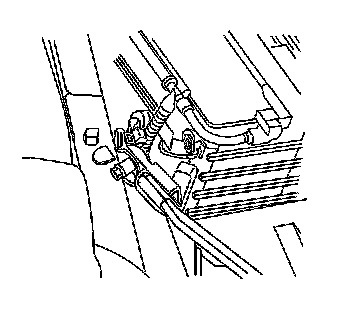

4. Remove the negative battery cable from the battery.

INSTALLATION PROCEDURE




1. Connect the negative battery cable to the battery.

Tighten the bolt to 17 N.m (13 lb ft).

NOTE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: Clean any existing oxidation from the contact face of the battery terminal and battery cable using a wire brush before installing the battery cable to the battery terminal.

2. Install the rear seat cushion.
