Home >> Cadillac >> 2005 >> DeVille V8-4.6L VIN Y >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Application and ID >> Fuse Block - Underhood

Fuse Block - Underhood

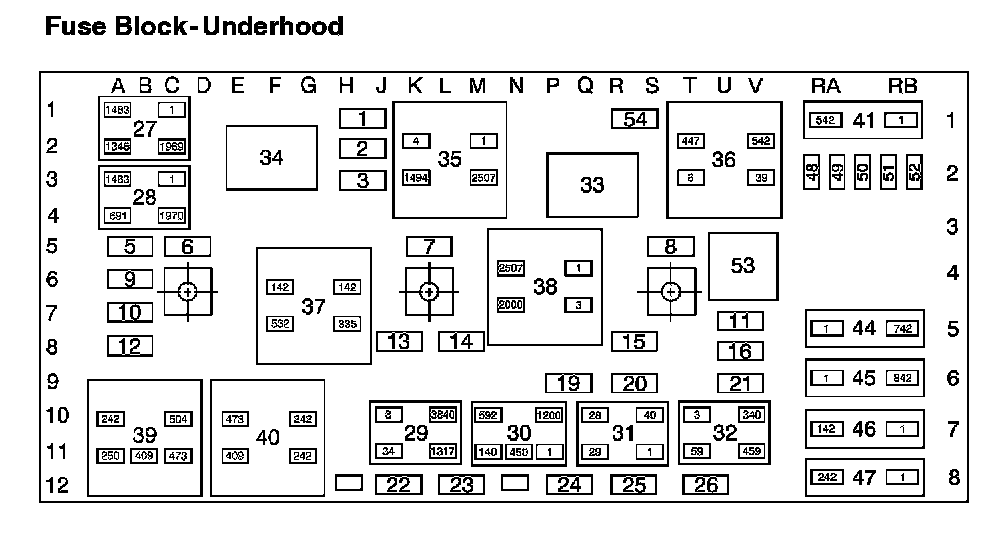

Location View:

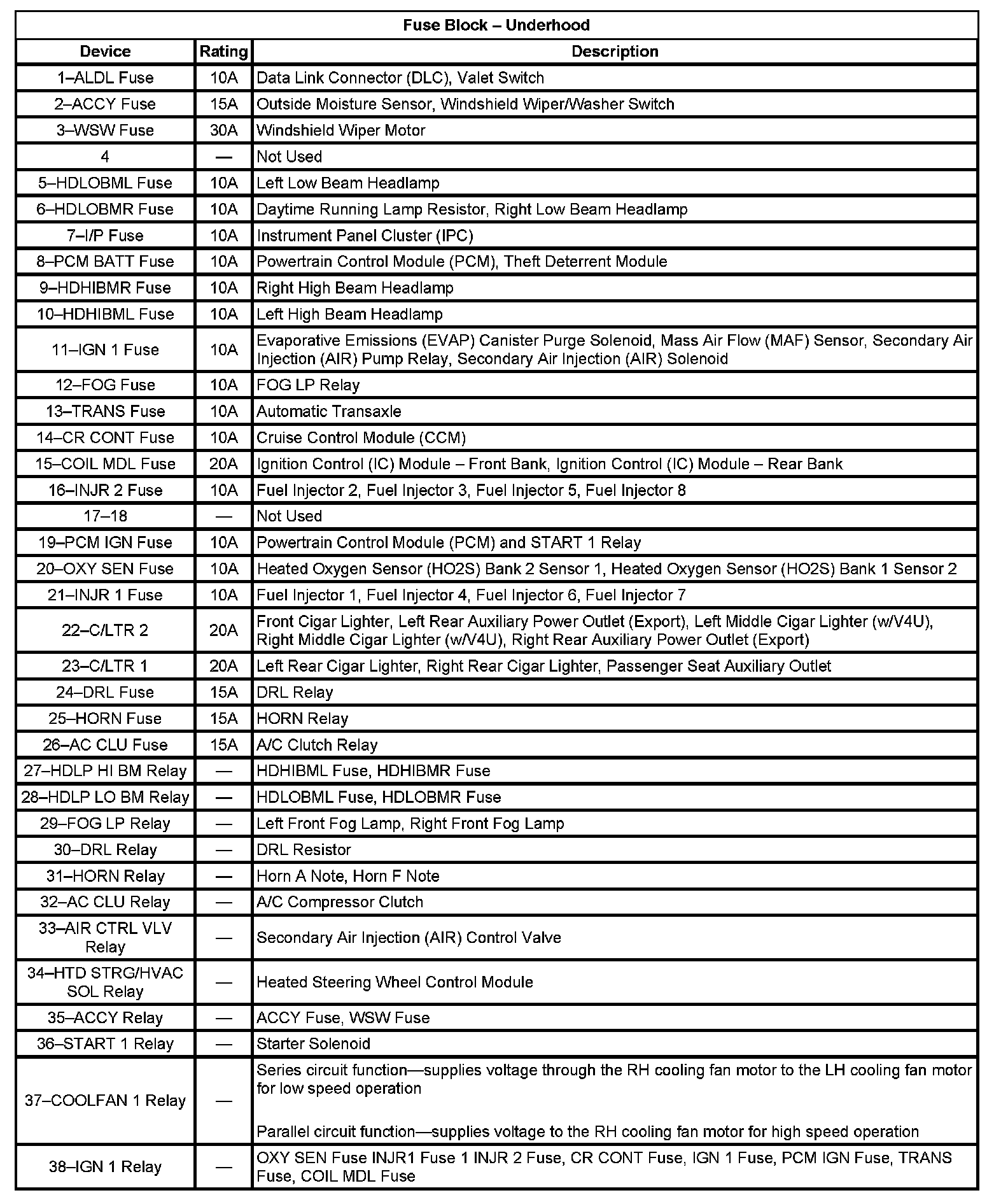

Appliction Table Part 1:

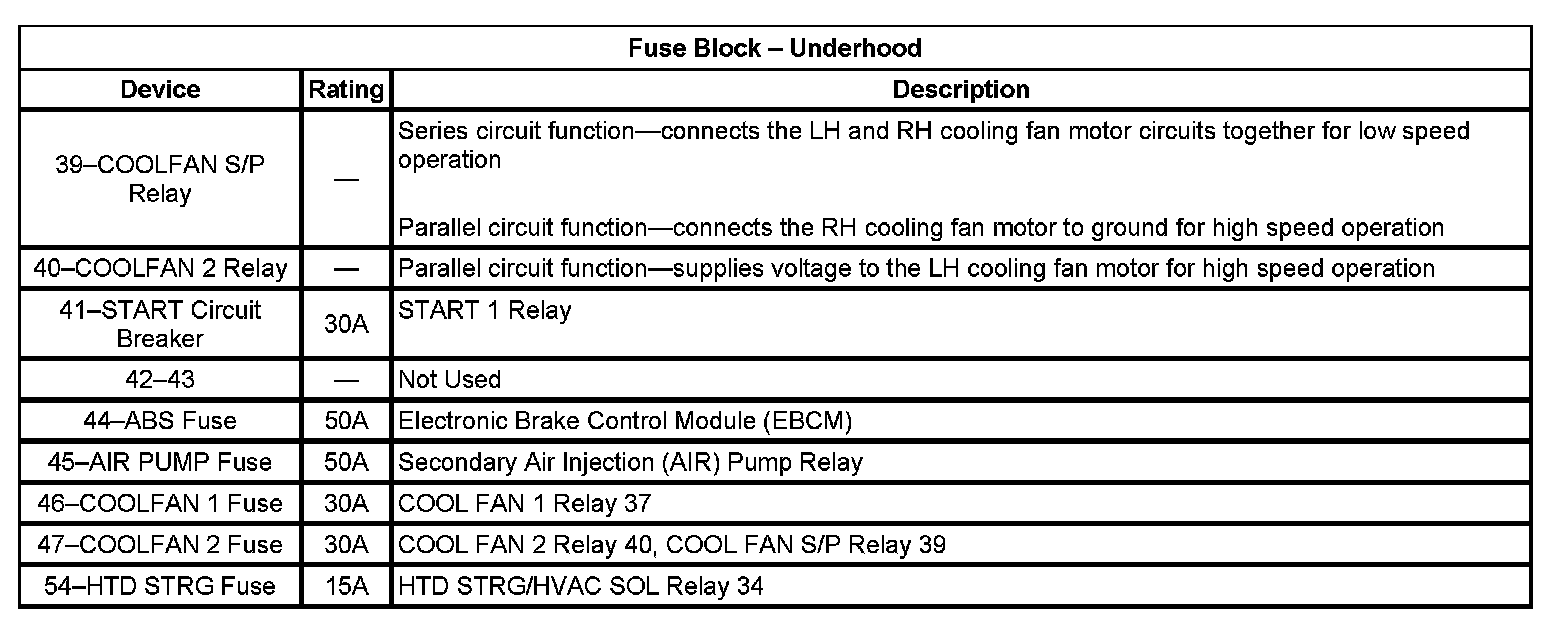

Appliction Table Part 2:
