Connector Views

Heated Steering Wheel Control Module C1/ Heated Steering Wheel (KA1):

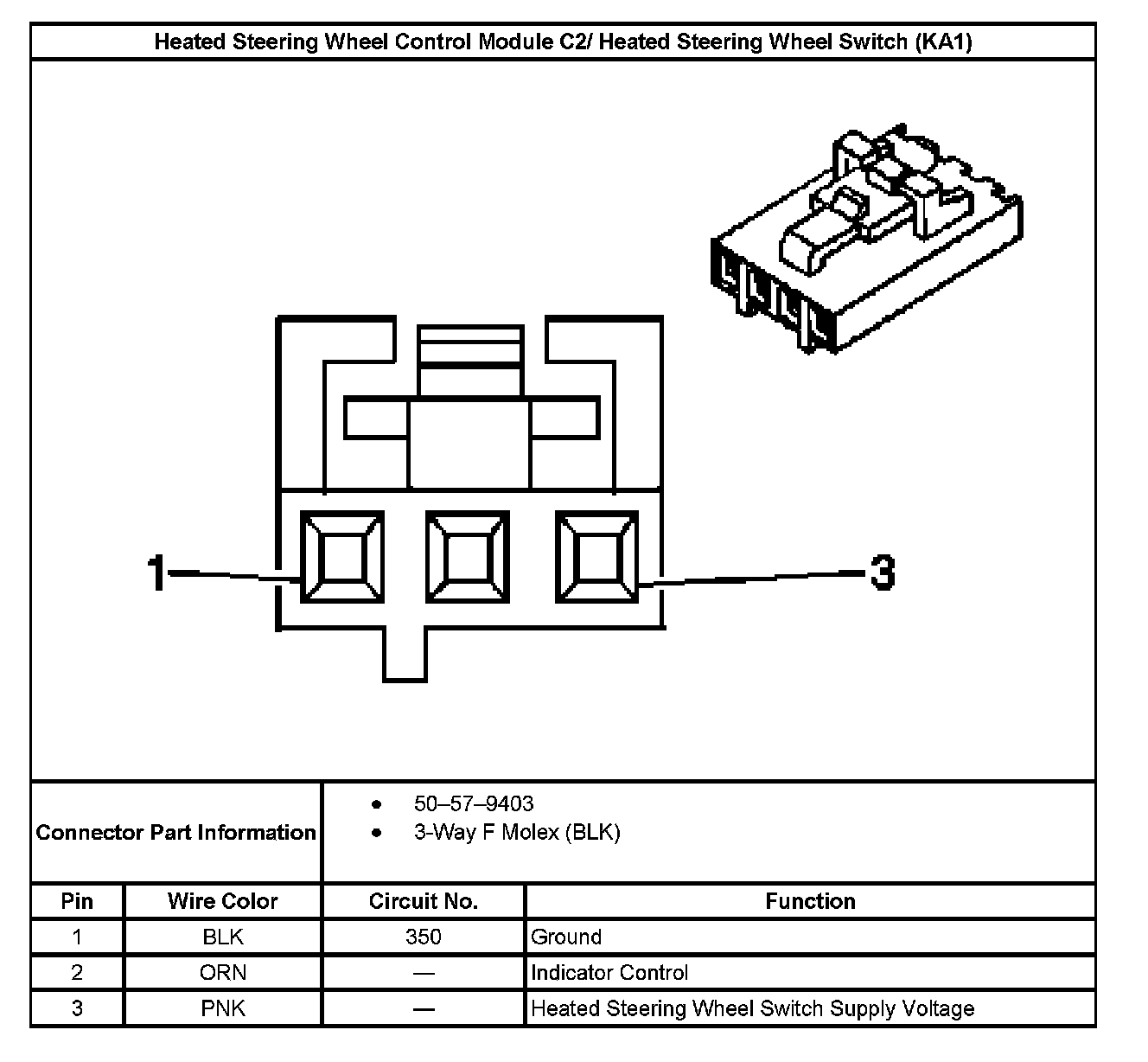

Heated Steering Wheel Control Module C2/ Heated Steering Wheel Switch (KA1):

Heated Steering Wheel Control Module C3:

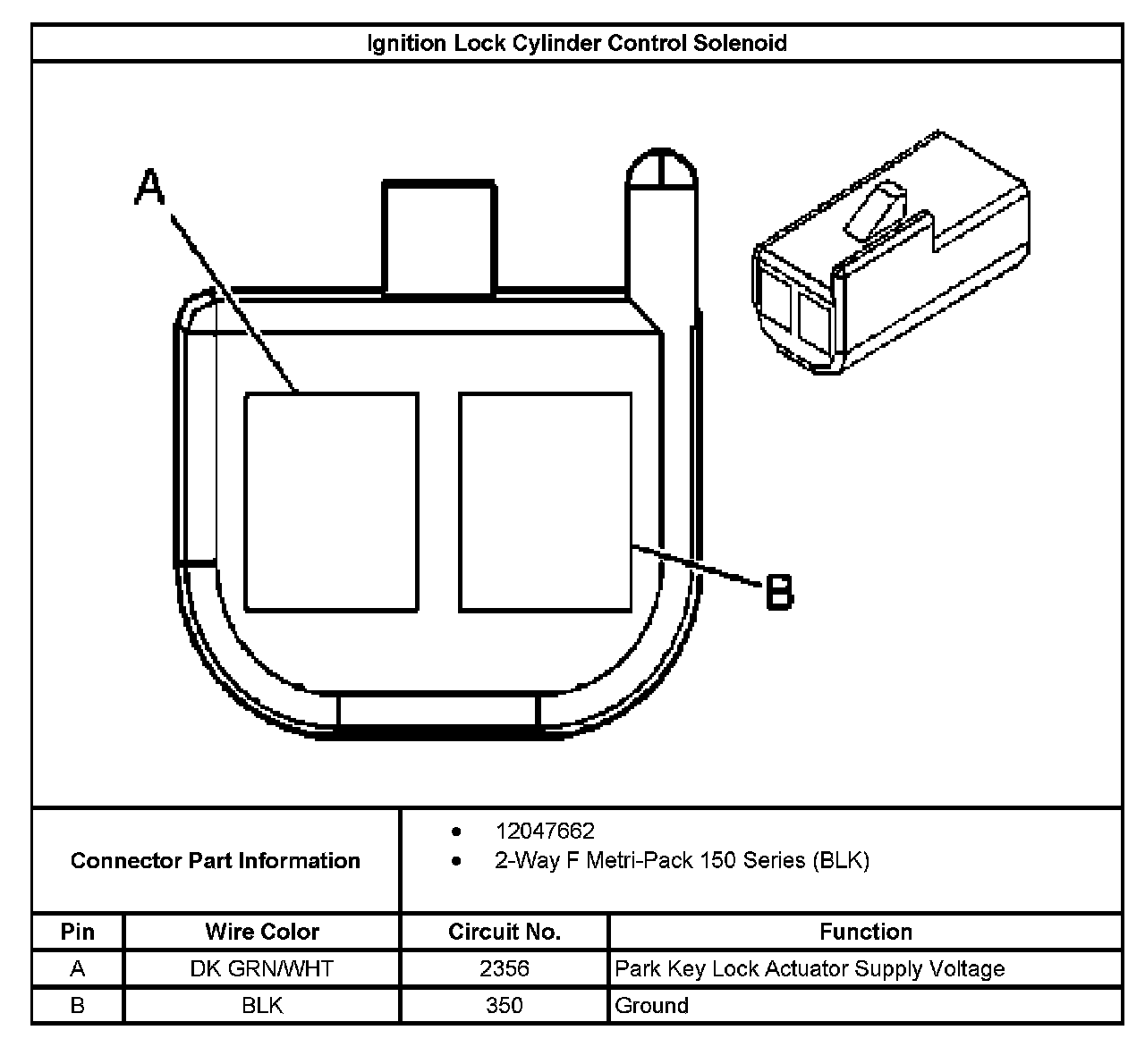

Ignition Lock Cylinder Control Solenoid:

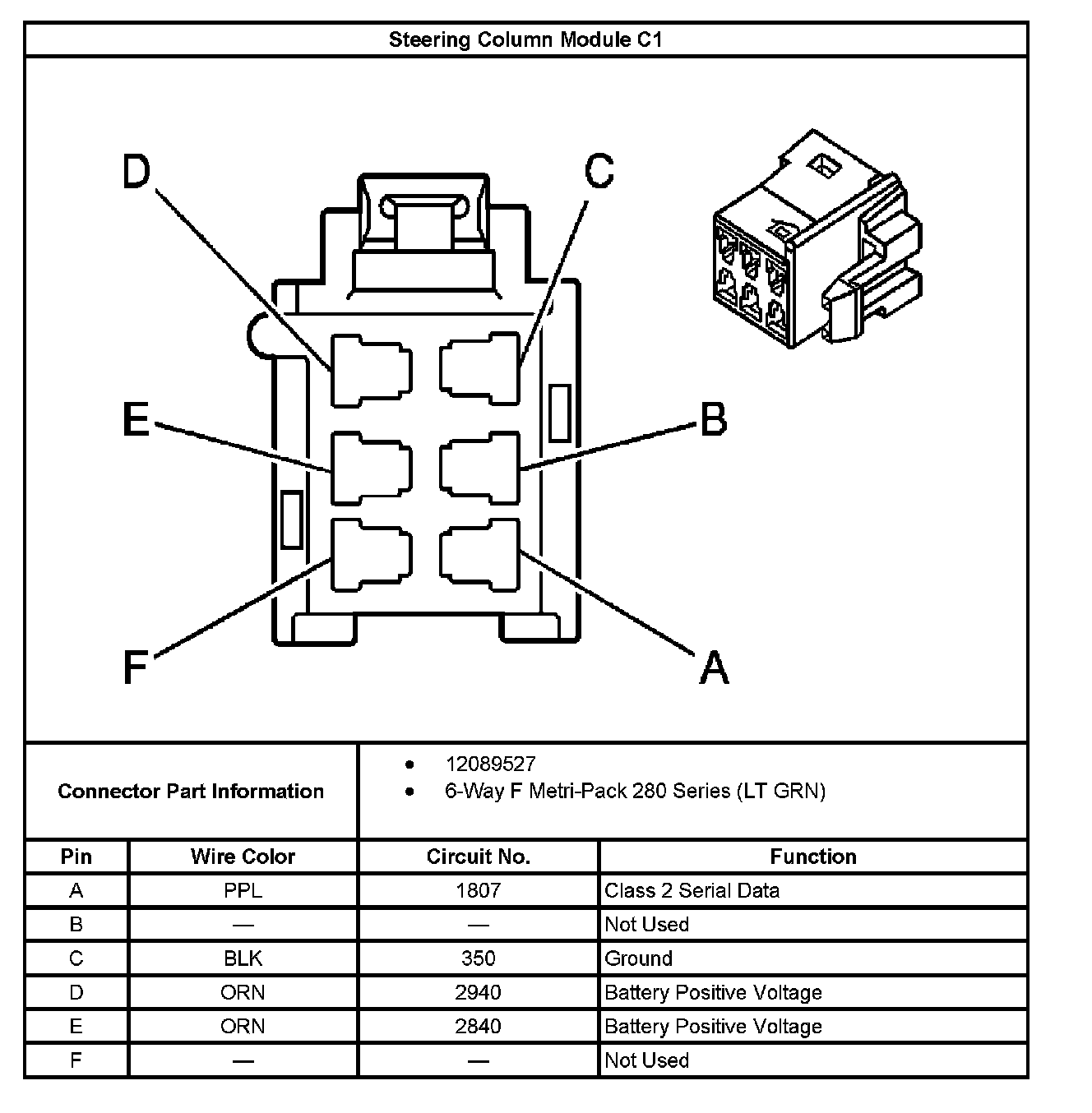

Steering Column Module C1:

Steering Column Module C2 Tilt Actuator:

Steering Column Module C3 Telescope Actuator:

Steering Column Module C4 Tilt/Telescope Switch:
