Telescope Actuator

Telescope Actuator Assembly Replacement
Removal Procedure





1. Caution: Refer to Restraint Systems in Service and Precautions.

Disable the SIR system. Refer to Restraint Systems Disabling and Enabling Zone 3 in Restraint Systems.
2. Remove the knee bolster.
3. Disconnect the electrical connector from the telescope actuator assembly.
4. Remove the fasteners (2) from the telescope actuator assembly.

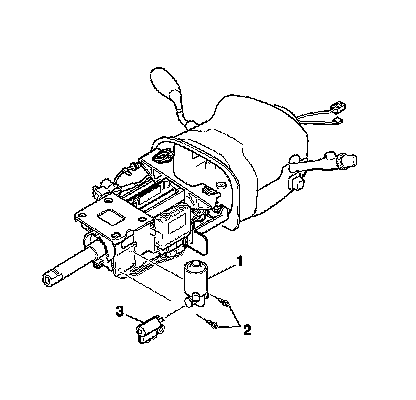

5. Remove the telescope actuator assembly (1) from the steering column.
6. Remove the potentiometer housing (3) from the telescope actuator assembly.





7. Disconnect the telescope cable from the telescope actuator assembly.

Installation Procedure





1. Install the white end of the telescope actuator cable assembly to the steering column.
2. Install the black end of the telescope actuator cable to the telescope actuator assembly.





3. Install the potentiometer housing (3) to the telescope actuator assembly (1).
4. Install the telescope actuator assembly.

5. Notice: Install the retaining screws (2) to the telescope actuator assembly.

Tighten the screws to 5 Nm (44 inch lbs.).
6. Connect the electrical connector to the telescope assembly actuator.
7. Install the knee bolster.
8. Enable the SIR system. Refer to Restraint Systems Disabling and Enabling Zone 3 in Restraint Systems.
