Steering Column Wire Harness

Wire Harness Assembly Replacement (Power Tilt and Telescope)
Removal Procedure





1. Caution: Refer to Restraint Systems in Service and Precautions.

Disable the SIR coil. Refer to Restraint Systems Disabling and Enabling Zone 3 in Restraint Systems.
2. Remove the steering wheel from the column.
3. Remove the steering column from the vehicle.
4. Inspect the steering column for accident damage.
5. Remove the upper and lower trim cover.

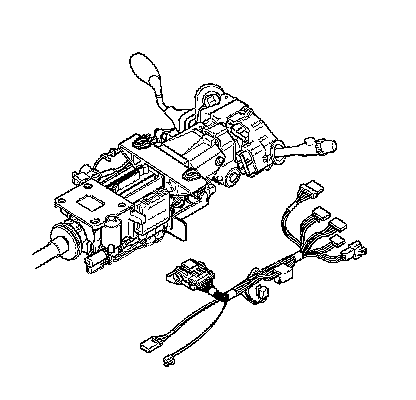

6. Disconnect all connectors attached to the wire harness assembly.
7. Slide the bulkhead connector out from the column shift and tilt motor bracket assembly.

Installation Procedure





1. Caution: Refer to Restraint Systems Inflator Module Coil Caution in Service and Precautions.

Slide the bulkhead connector into the column shift and tilt motor bracket assembly.
2. Connect all of the connectors to the wire harness assembly.
3. Install the upper and lower trim cover.
4. Install the steering column into the vehicle.
5. Install the steering wheel onto the steering column.
6. Enable the SIR system. Refer to Restraint Systems Disabling and Enabling Zone 3 in Restraint Systems.
