Steering Wheel Heat Module

Steering Wheel Heat Module Replacement
Removal Procedure
1. Remove the steering wheel.

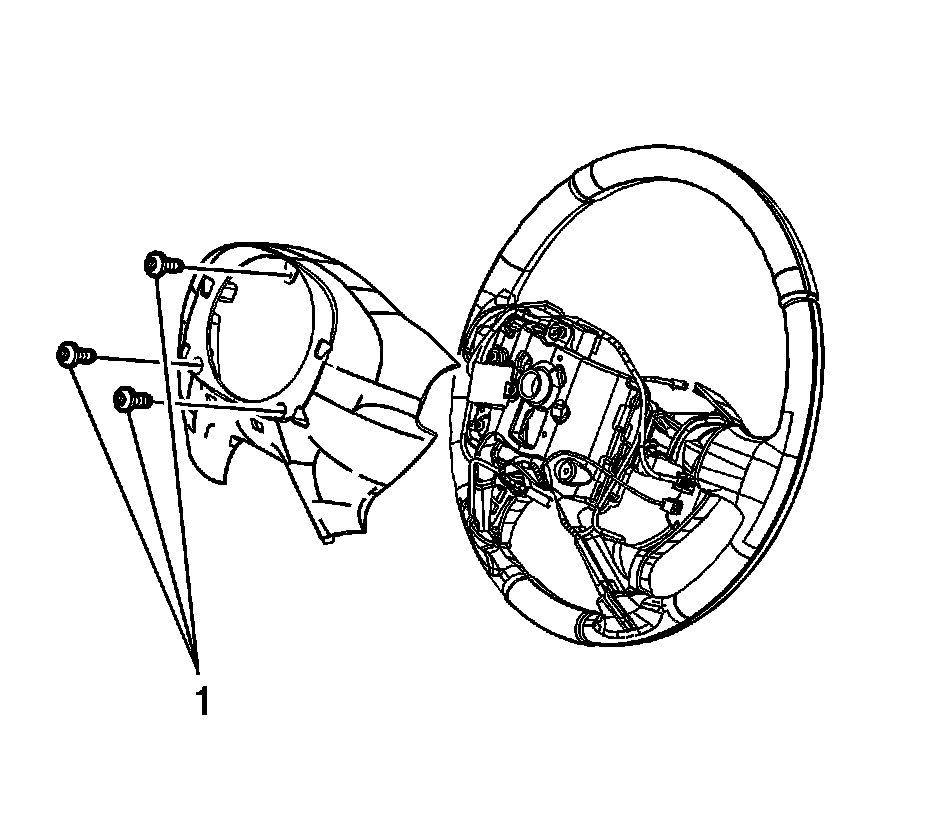

2. Remove the steering wheel rear shroud screws (1).





3. Remove the 2 retaining screws (1).

Installation Procedure
1. Install the module to the steering wheel.





2. Notice: Install the 2 retaining screws (1).

Tighten the retaining screws to 5 Nm (44 inch lbs.).





3. Install the rear shroud of the steering wheel.
^ Tighten the retaining screws (1) to 4.5 Nm (40 inch lbs.).
4. Install the steering wheel.
