44. Case Cover/Turbine Shaft Seal Replacement

Case Cover/Turbine Shaft Seal Replacement

^ Tools Required
- J 7079-2 Universal Driver Handle-Non Threaded
- J 8092 Driver Handle
- J 39062 Turbine Shaft Seal Tool
- J 39648 Drive Sprocket Seal Installer

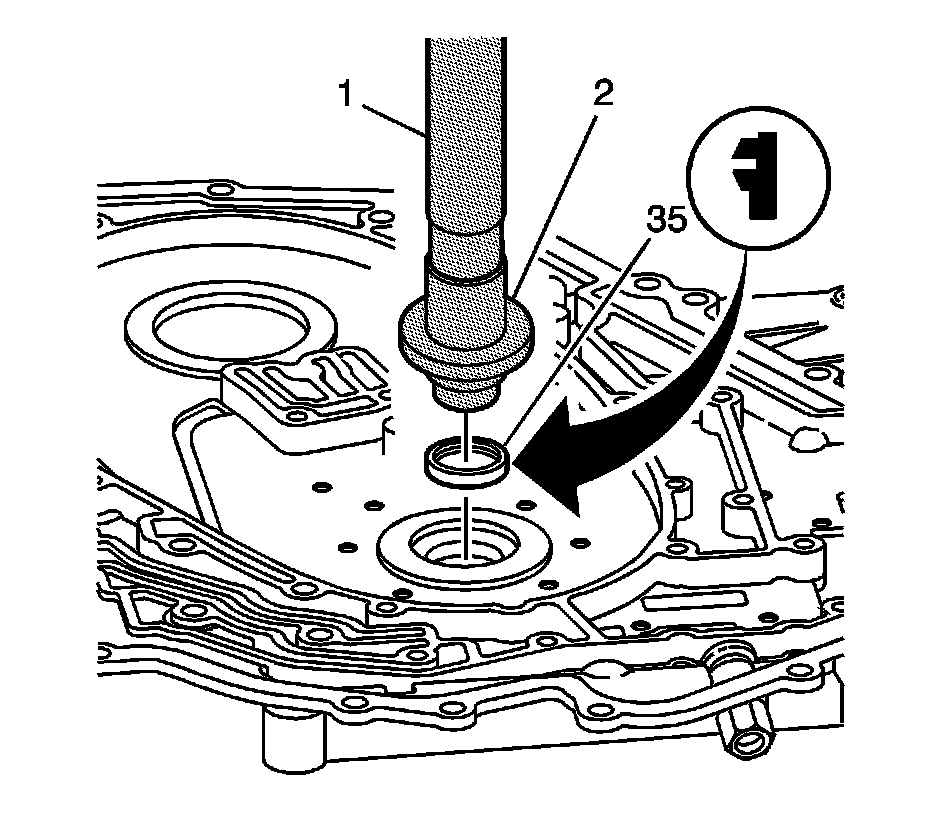

1. Using J 7079-2 (1) and the remover side of the J 39062 (2), remove the case cover to turbine shaft seal (35).





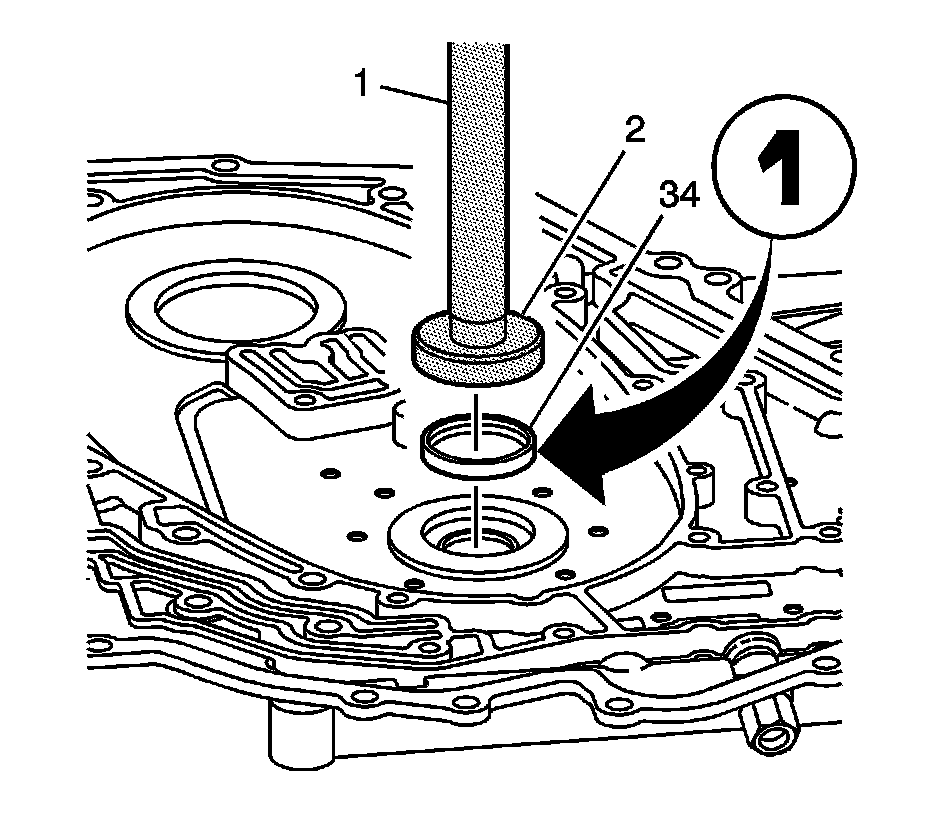

2. Using a small screwdriver, remove the case cover to drive sprocket seal (34) by tapping the seal out through the slots in the case cover.

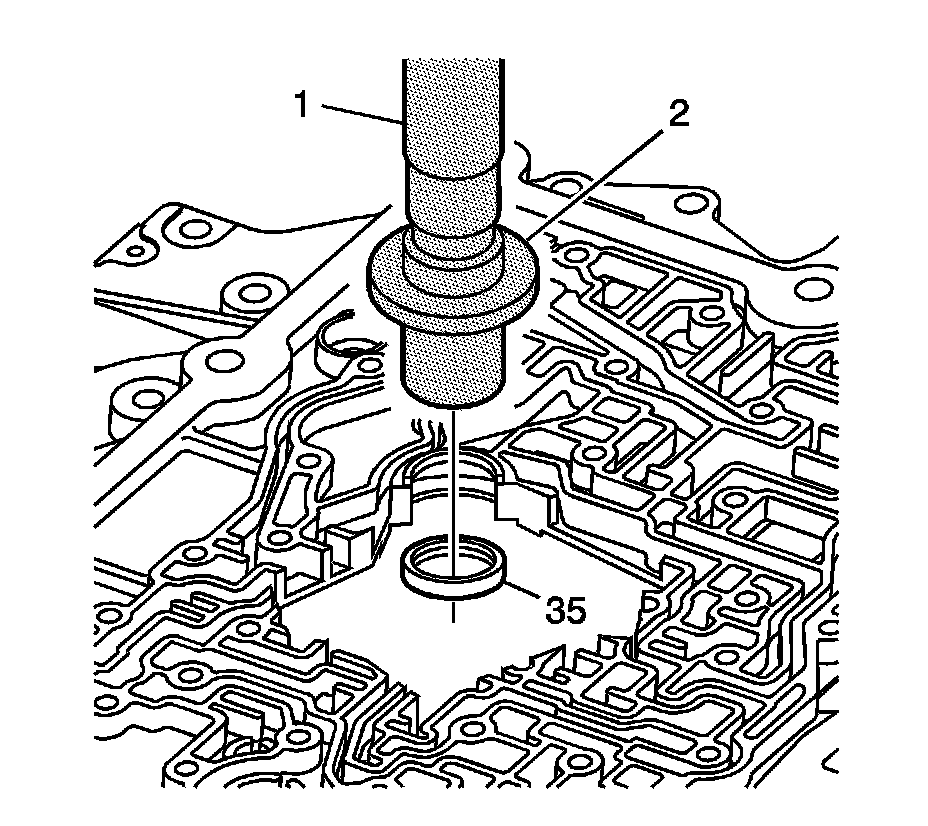

3. Using J 7079-2 (1) the installer side of the J 39062 (2), install the case cover to turbine shaft seal (35).





4. Using J 8092 (1) and J 39648 (2), install the case cover to drive sprocket seal (34).
