Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2005
>>
SRX 2WD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>

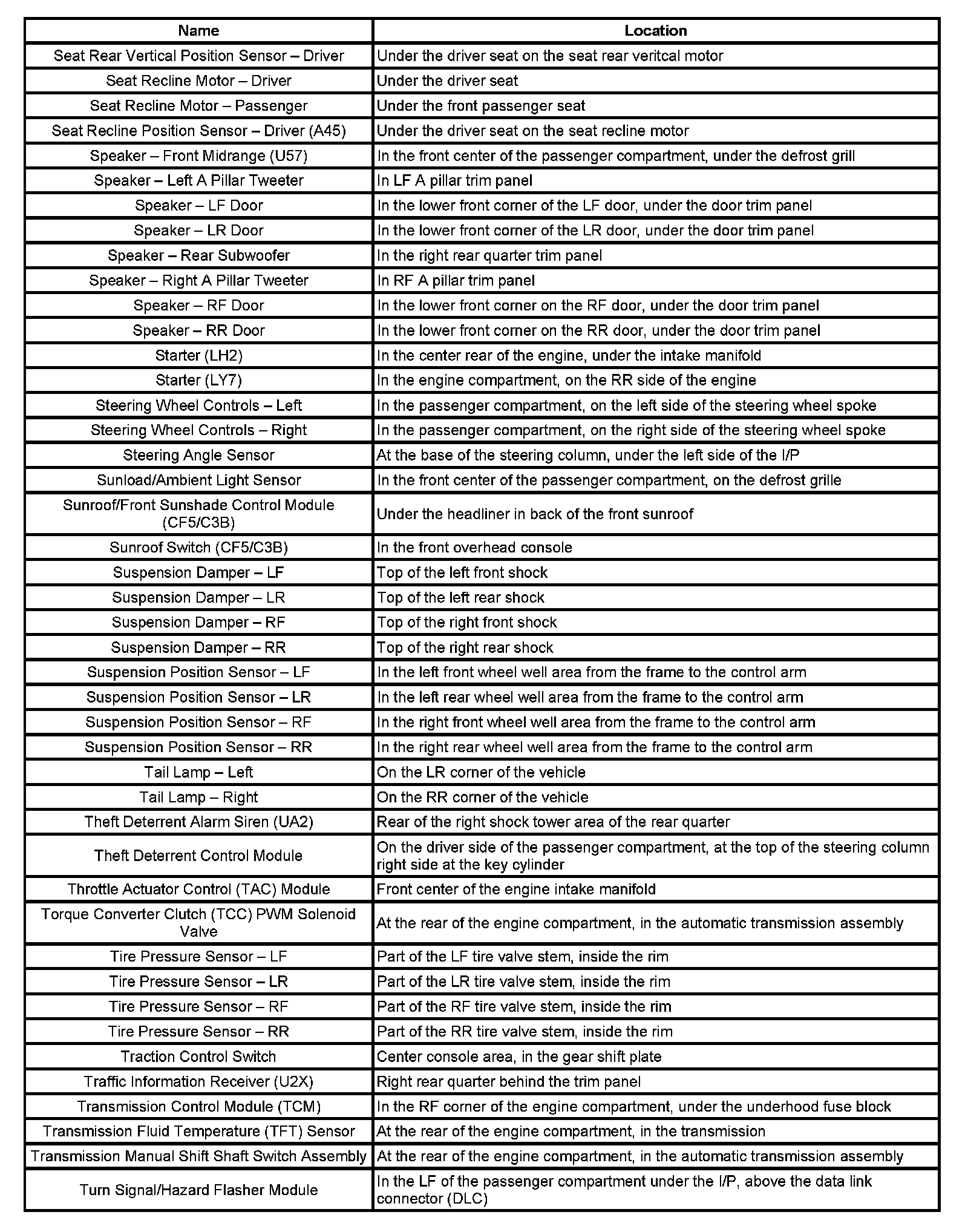

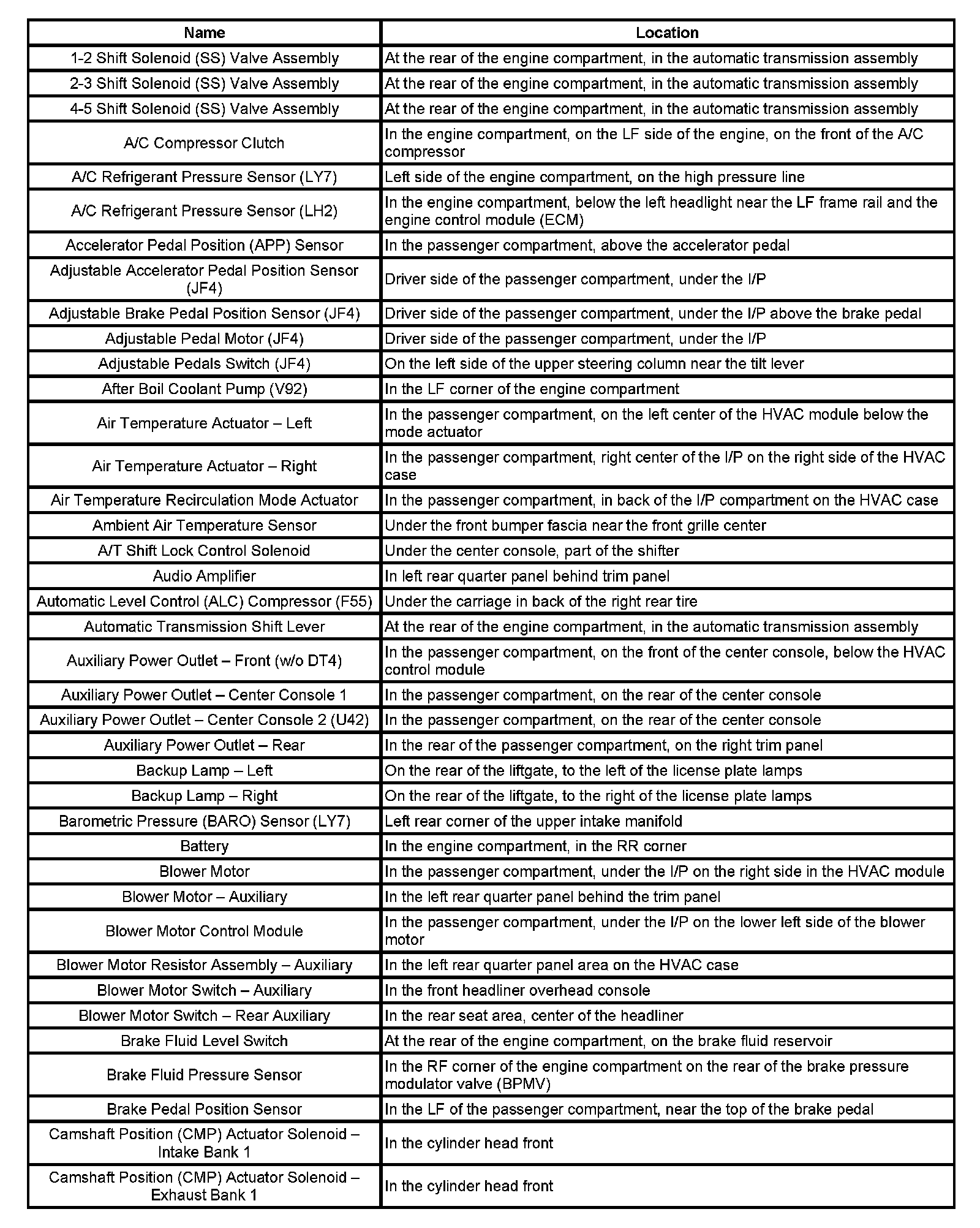

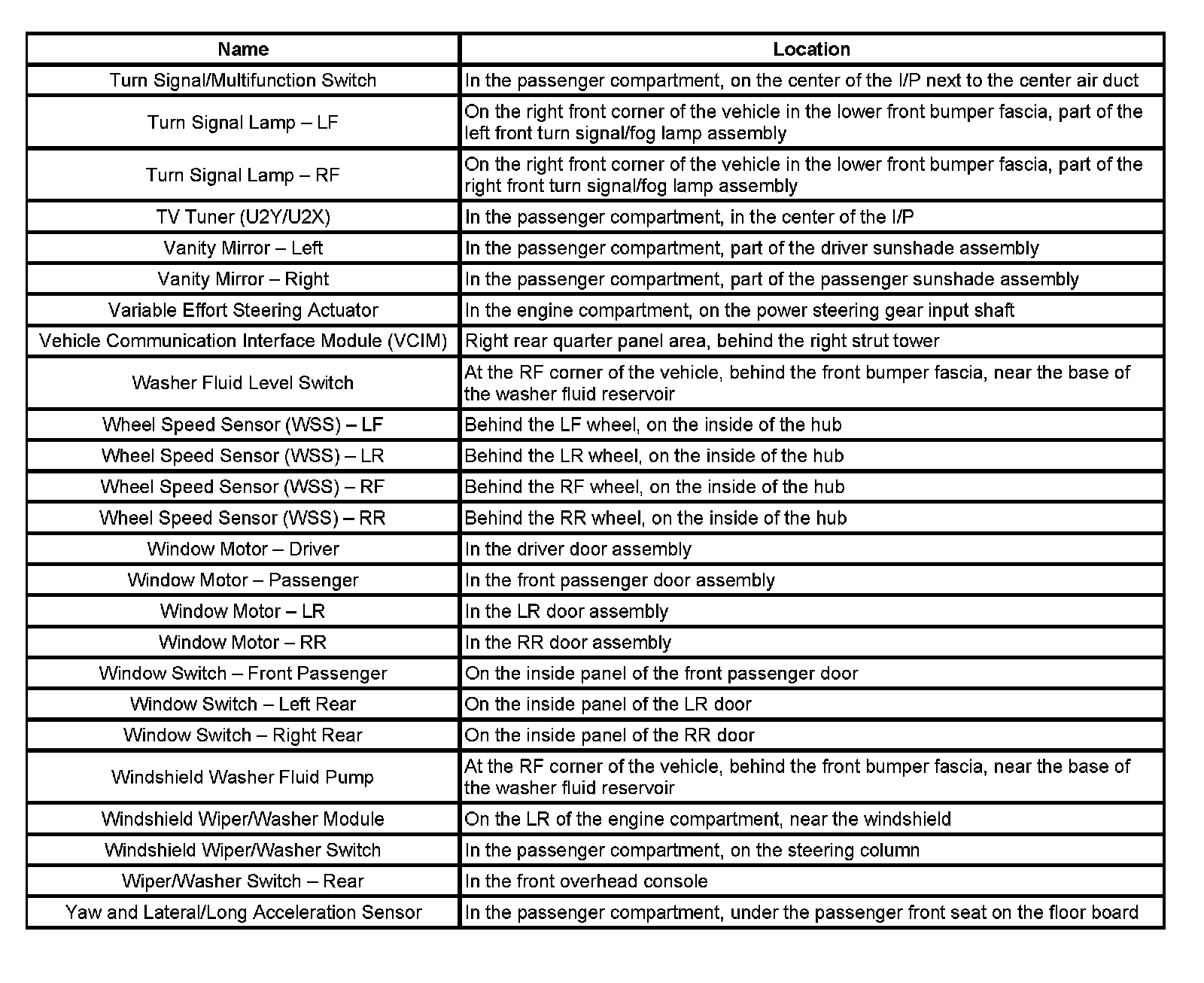

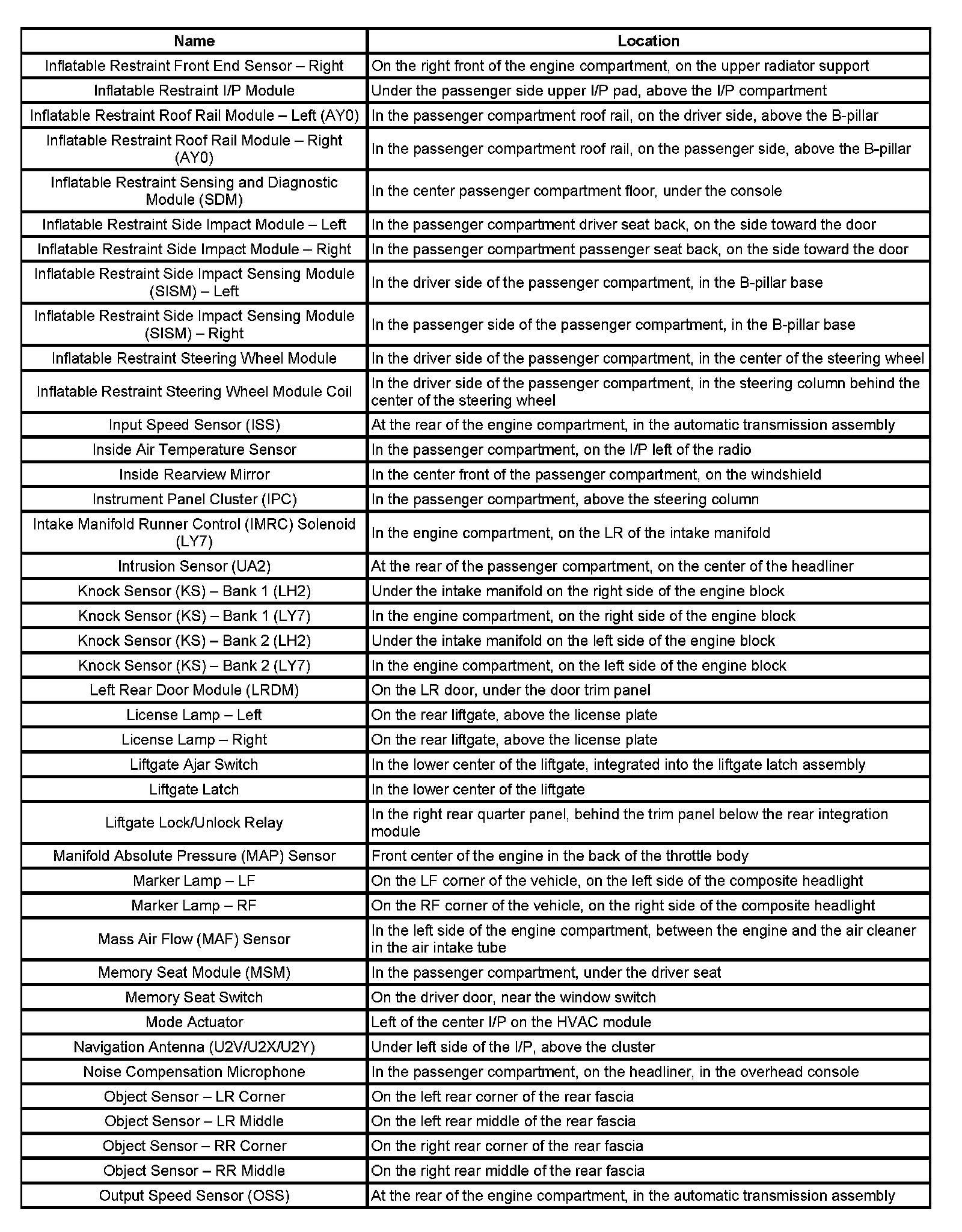

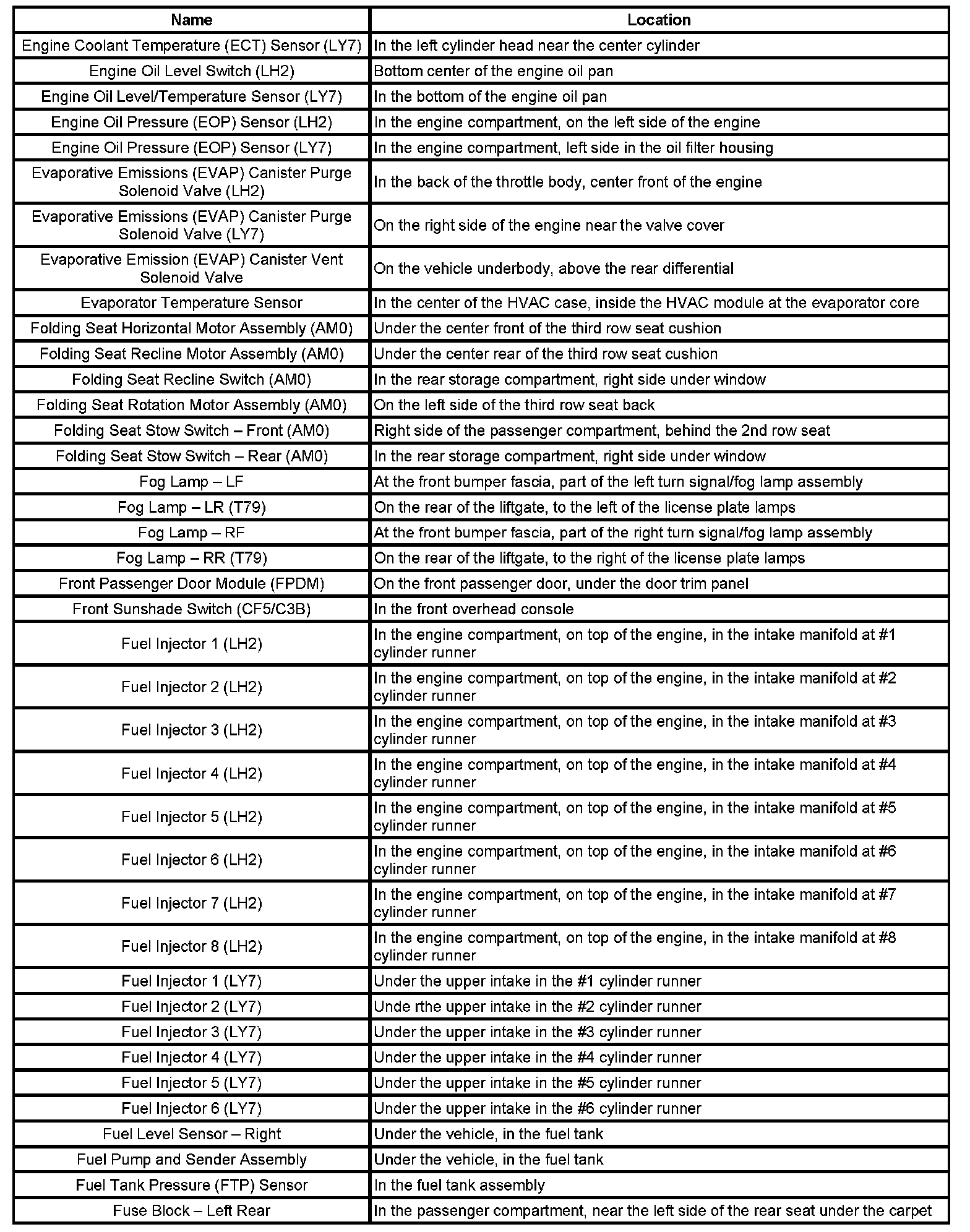

Components
Components
1-2 - Ca:
Ca - En:
En - Fu:
En - Fu:
Fu - In:
In - Ou:
Ou - Se:
Se - Tu:
Tu - Ya:
