Side Impact Module

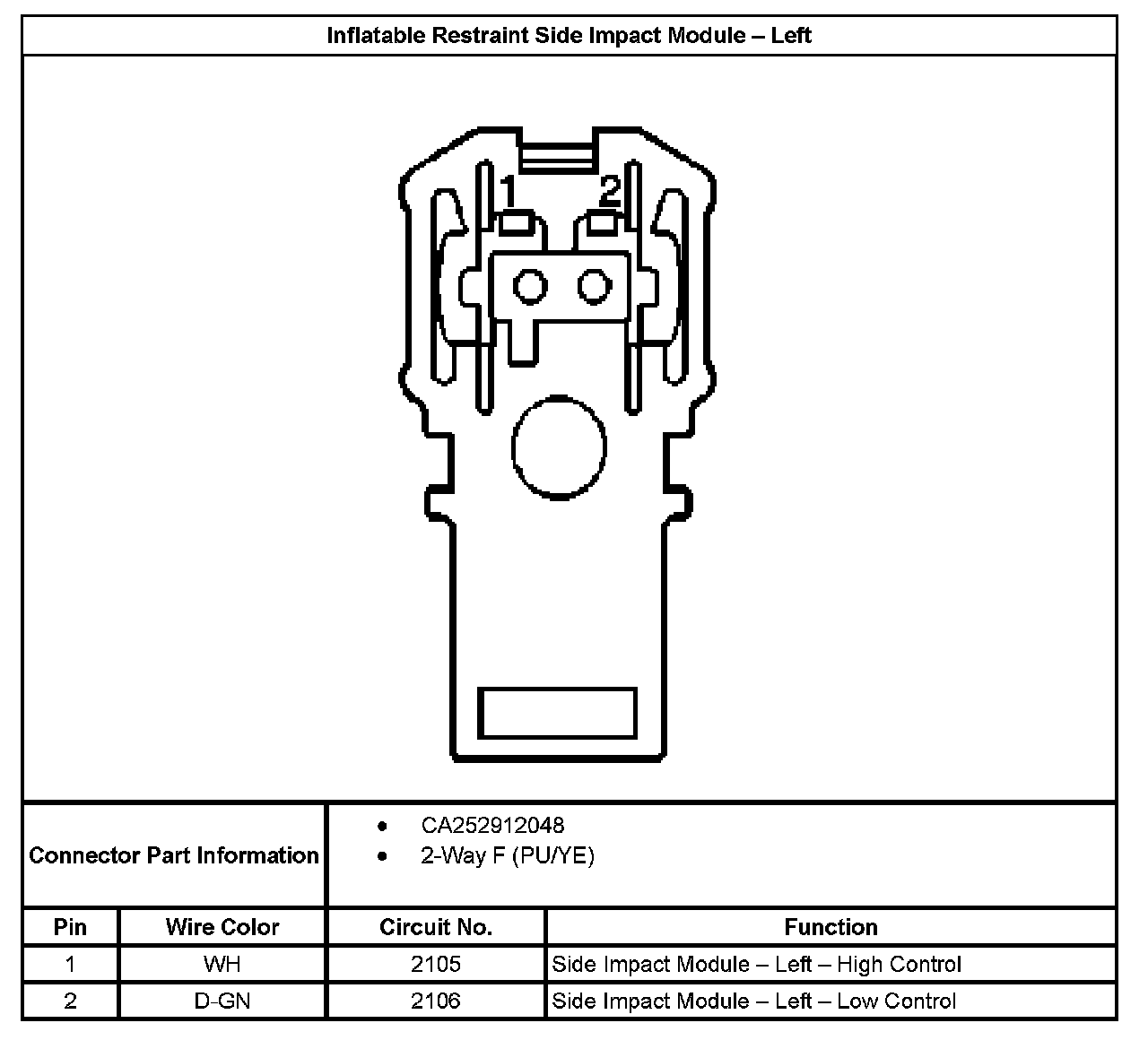

Inflatable Restraint Side Impact Module - Left:

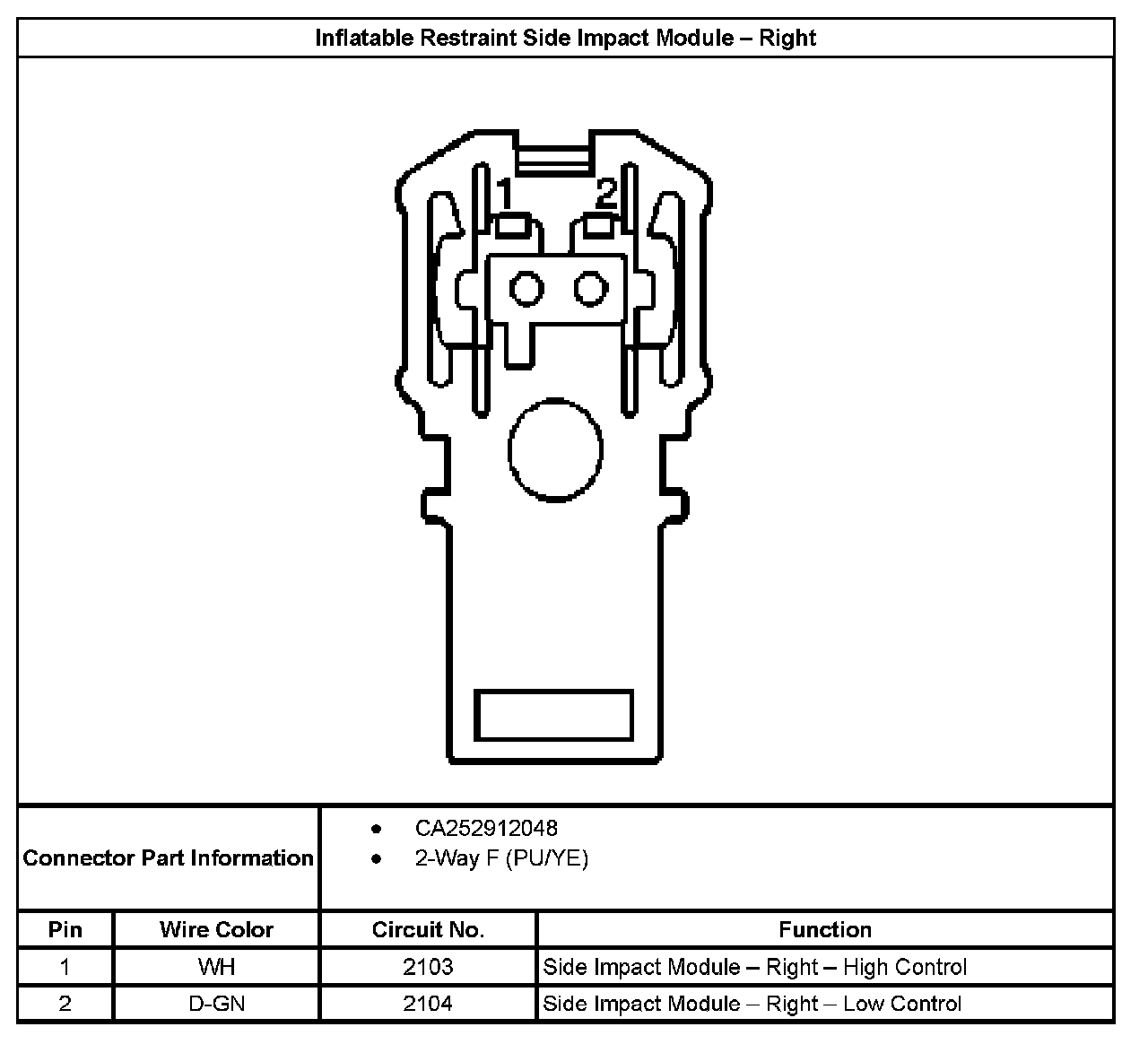

Inflatable Restraint Side Impact Module - Right:
