Oil Pump, Engine

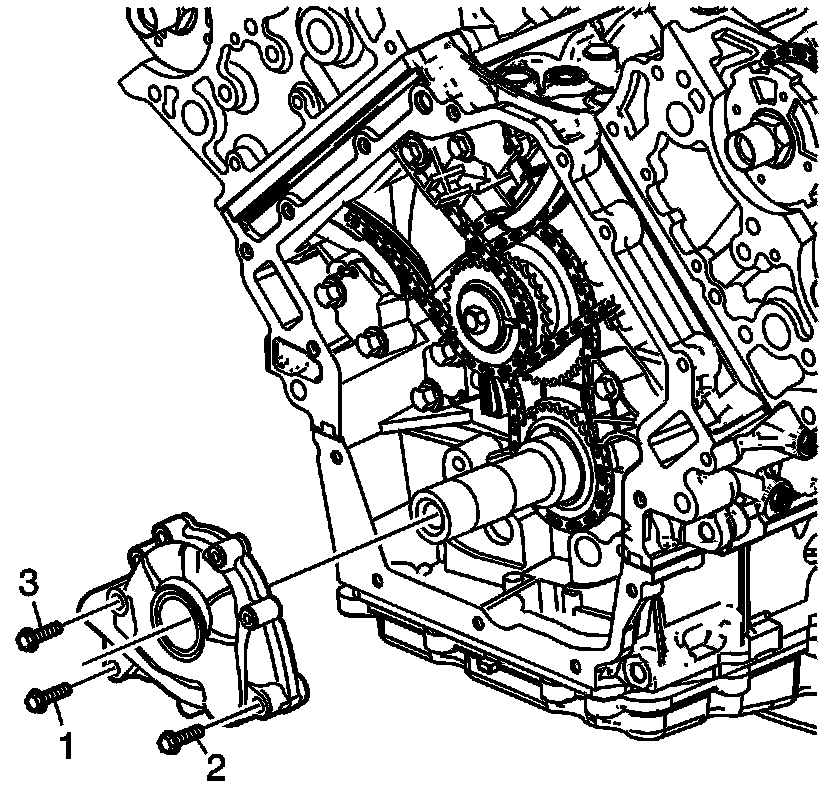

Oil Pump





First Pass
Tighten the oil pump mounting bolts 10 Nm (89 inch lbs.)

Final Pass
Tighten the oil pump mounting bolts an additional 35 degrees using the J 45059.
